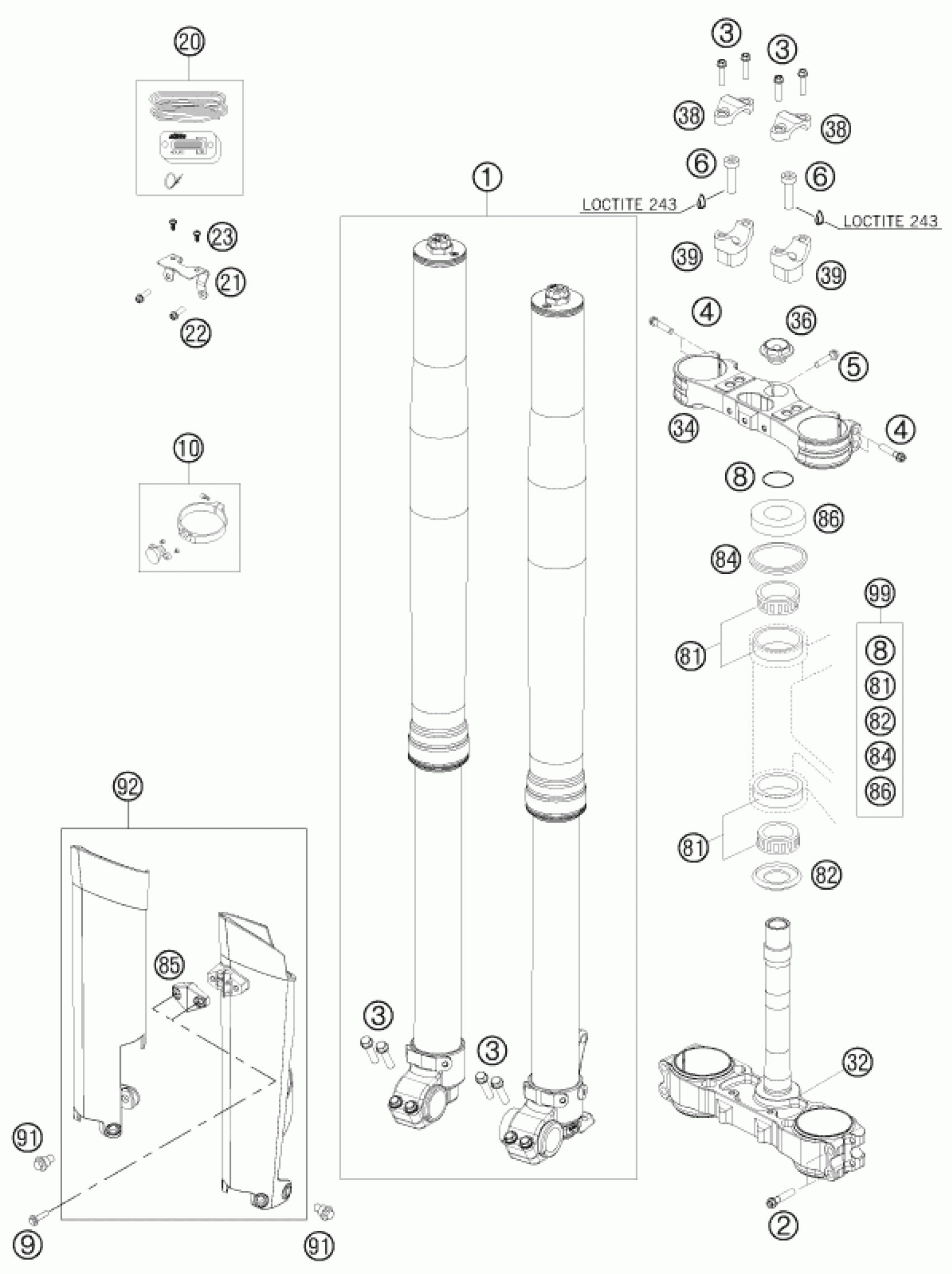

KTM 250 SX-F FACT.REPL.MUSQ. ED 10 <2010> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

10

FACTORY START

SXS07540100

Unavailable

1

FORK KTM CC 250 SX/SX-F 2010

14187J0301

Unavailable

2

HH collar screw M8x50 TX40

0025080506

Unavailable

3

HH collar screw M8x25

0025080256

Unavailable

4

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

5

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

6

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

8

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

32

BOTT.FORK PLATE VMT. X=22MM OR

7720103202204

Unavailable

34

TOP TRIPLE CLAMP X=22MM OR

7720103402204

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

HANDLEBAR CLAMP 28MM 05

59401038000

Unavailable

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP FOR SPEED CABLE D=6MM 08

7800108500004

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECTION LE+RI ORA.08

7800109410004

Unavailable

20

HOURMETER

SXS05450600

Unavailable

21

RETAINING PLATE FOR HOUR METER

SXS05450610

Unavailable

23

EJOT PT screw K50x12

0081050121

Unavailable

22

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
