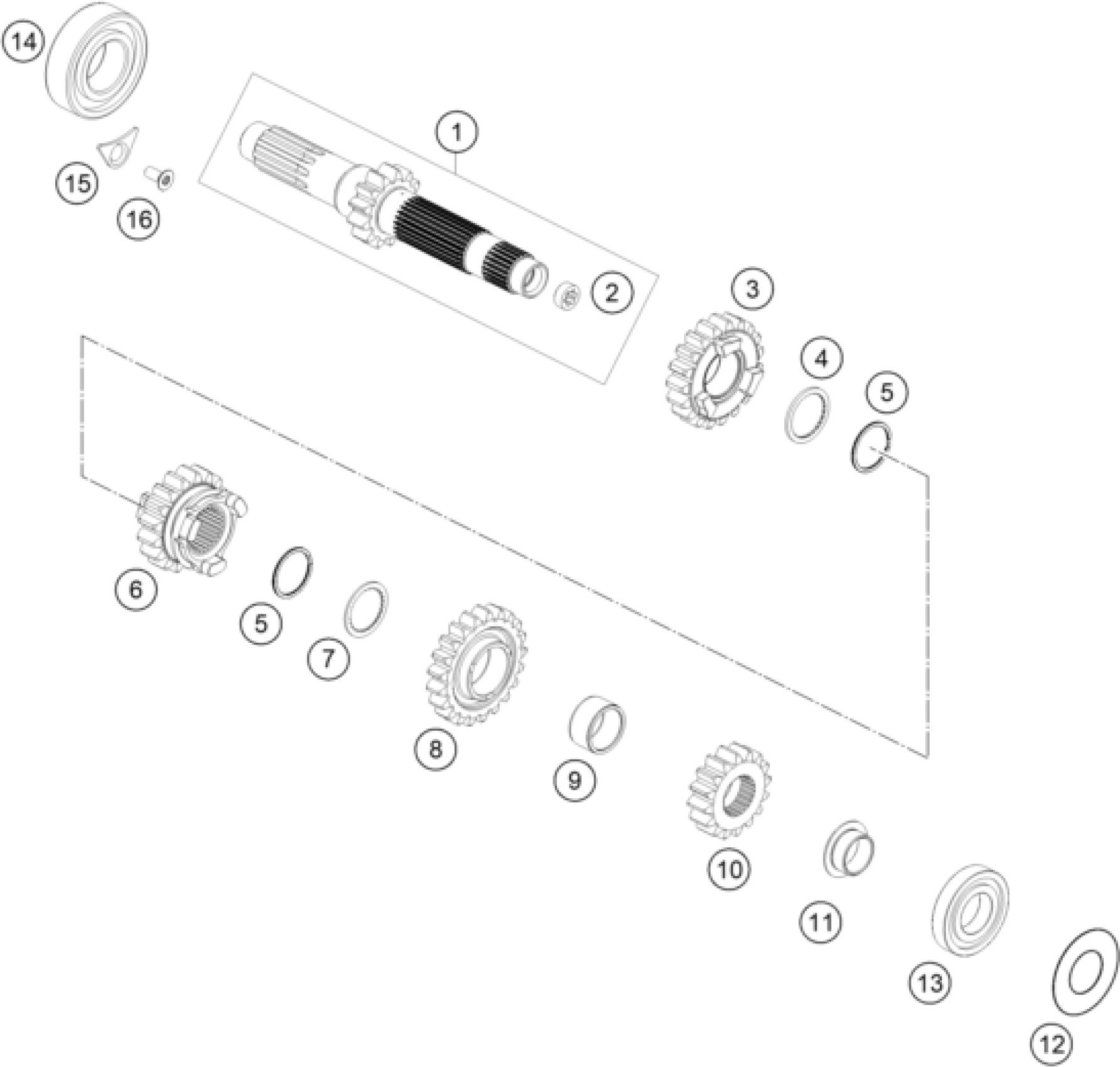

KTM 250 SX-F 2018 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

Main shaft cpl.

79033001100

Unavailable

2

BUSHING

78033001110

Unavailable

3

Idler gear 4.G cpl.

79033004144

Unavailable

4

Thrust washer 22X0,8X30X26X7H

79033040000

Unavailable

5

CIRCLIP XDNS-22 S02

0471022000

Unavailable

6

Sliding gear 3. G

79033003200

Unavailable

7

STOP DISC 22X0,8X30X26X7H

79033042000

Unavailable

8

Idler gear 5.g

79033005300

Unavailable

9

NEEDLE BEAR. K20X24X13

0405202413

Unavailable

10

Solid gear 2nd

79033002100

Unavailable

11

BUSHING

77733027000

Unavailable

12

SPACER SHIM 21X42X0.2

77233088000

Unavailable

13

BALL BEARING TM 16004 C4

0625160041

Unavailable

14

Groove ball bearing 6205 C4 NT

0625062056

Unavailable

15

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

16

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable
