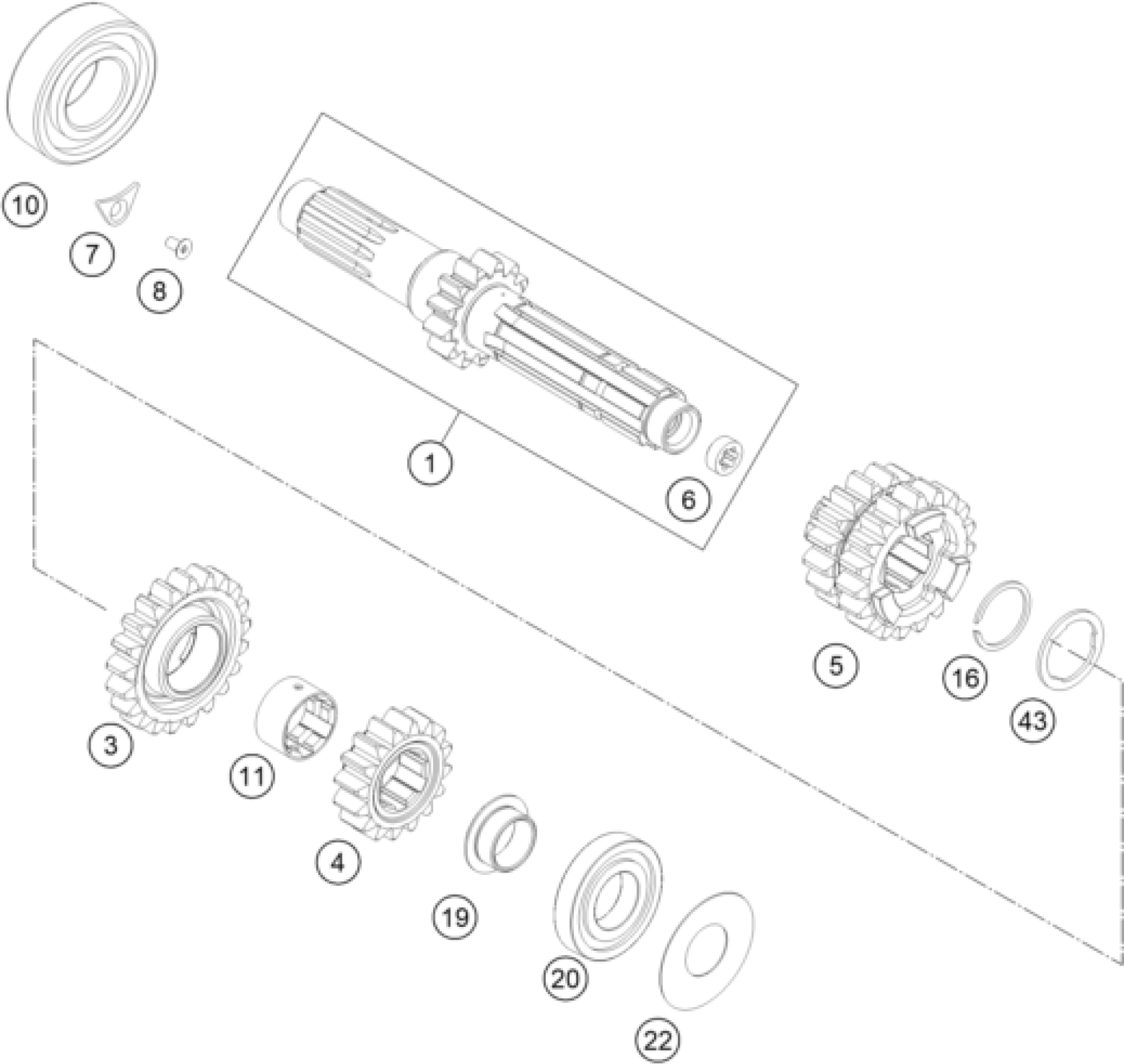

KTM 250 SX-F 2014 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

MAIN SHAFT CPL. 13T.

77733301000

Unavailable

3

IDLER GEAR 5TH G. T=21

77733005000

Unavailable

4

SOLID GEAR 2ND G. T=16

77733002000

Unavailable

5

SLIDING GEAR 3./4.G Z=17/19

77733303000

Unavailable

6

BUSHING

78033001110

Unavailable

7

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

8

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

10

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

11

IDLER GEAR BUSHING

77733024000

Unavailable

16

LOCK RING 22X1,2

50133090000

Unavailable

19

BUSHING

77733027000

Unavailable

20

GROOVED BALL BEAR. TM 16004 C3

0625160040

Unavailable

22

SPACER SHIM 21X42X0.2

77233088000

Unavailable

43

STOP DISC

77733021000

Unavailable
