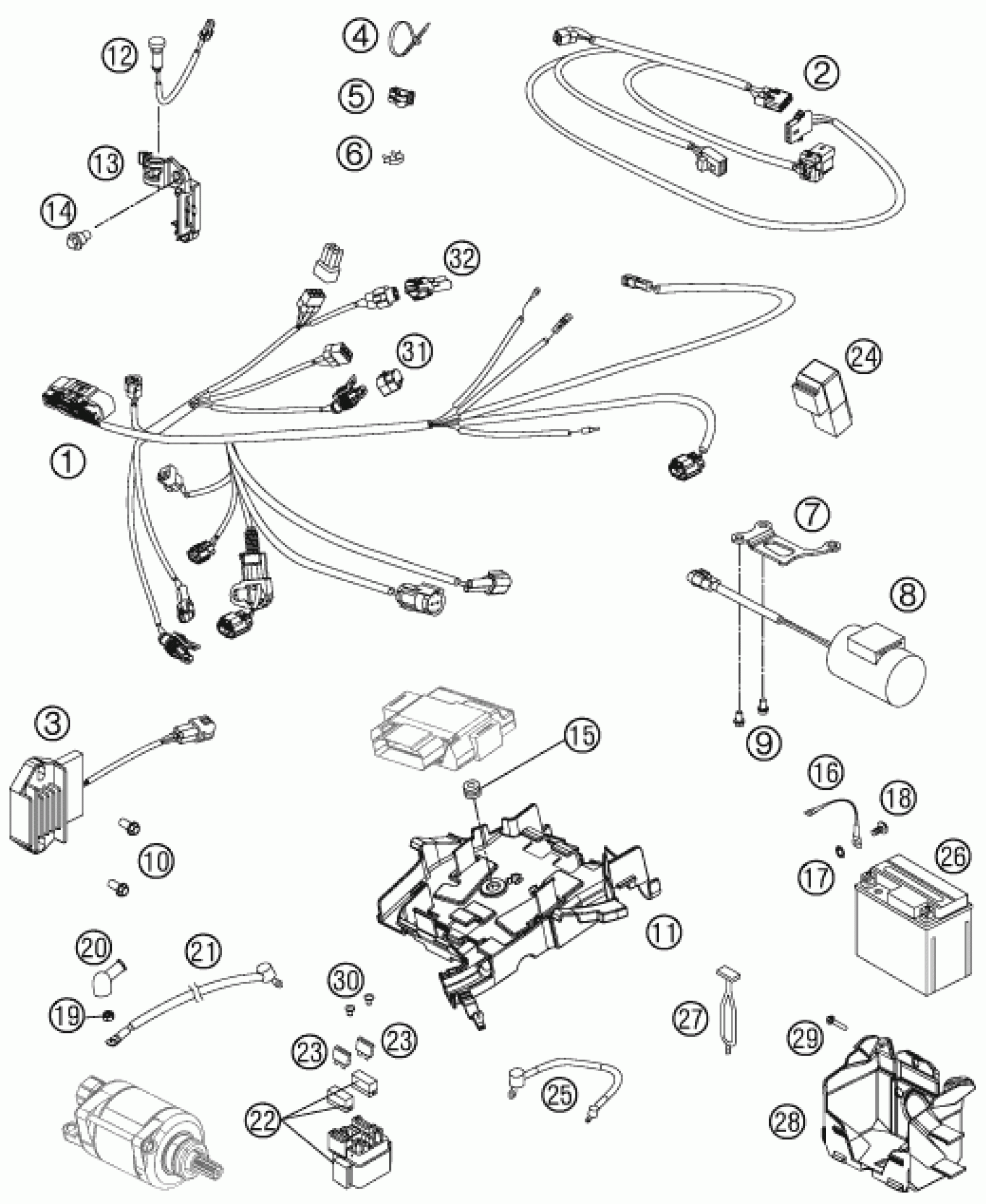

KTM 250 SX-F 2012 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS EFI

77111075100

Unavailable

2

WIRING HARNESS E-START

77111085000

Unavailable

3

Voltage regulator

77211034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

RETAINING PLATE CONDENSATOR

77211036000

Unavailable

8

CONDENSATOR

77111035000

Unavailable

9

HH collar screw M6x10 TX30

0025060106

Unavailable

10

HH collar screw M6x20 TX30

0025060206

Unavailable

11

ELECTRIC BOX

77211094000

Unavailable

12

INDICATOR LIGHT LED YELLOW FI

81214083000

Unavailable

13

HOLDER INDICATOR LIGHT SX

77214098000

Unavailable

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

15

PLUG SFL13

55009086000

Unavailable

16

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

Protection cap for starter eng

77240099000

Unavailable

21

STARTERCABLE 700 MM '97

58411059100

Unavailable

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 10A

58011109110

Unavailable

24

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

25

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

26

BATTERY 12V 3AH YTX4L-BS

77311053000

Unavailable

27

RUBBER L=145MM

50303018000

Unavailable

28

BATTERY BOX

77211055000

Unavailable

29

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

30

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

31

DUMMY PLUG MAPSELECTSWITCH

77211010050

Unavailable

32

END PLUG CAN-BUS 08

69011040000

Unavailable
