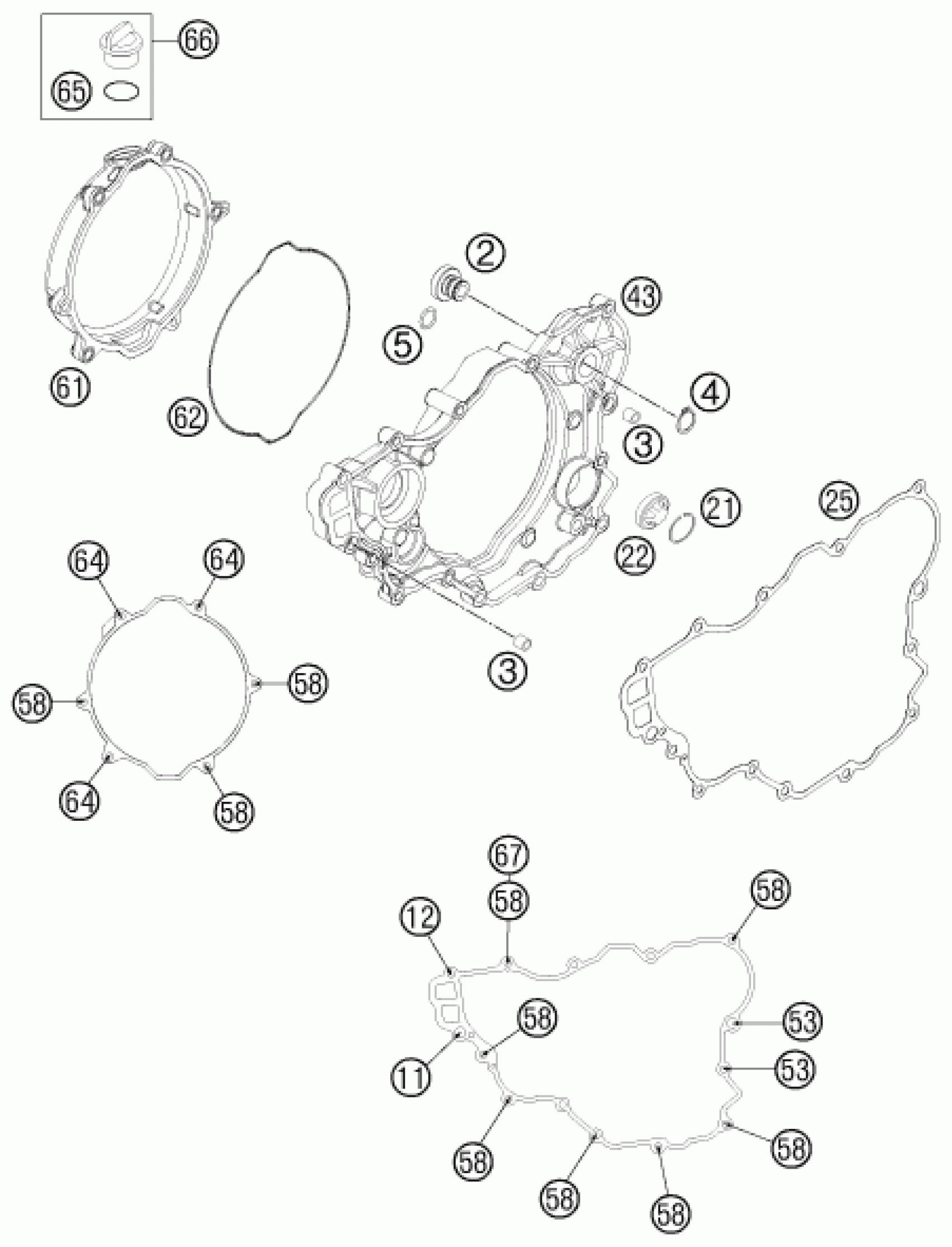

KTM 250 SX-F 2012 CLUTCH COVER Diagram

#

Description
Price

3

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

11

HH collar screw M6x40 TX30

0025060406

Unavailable

12

HH collar screw M6x35 TX30

0025060356

Unavailable

21

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

22

OIL LEVEL GLASS

59030019100

Unavailable

25

GASKET FOR CLUTCH COVER 05

77030025100

Unavailable

43

CLUTCH COVER CPL.

7703000124415

Unavailable

53

HH collar screw M6x30 TX30

0025060306

Unavailable

58

HH collar screw M6x25 TX30

0025060256

Unavailable

61

CLUTCH COVER OUTSIDE 09

7703002630015

Unavailable

62

MOLDED RING 05

77030027000

Unavailable

64

HH collar screw M6x55 TX30

0025060556

Unavailable

65

O-RING 19,00X3,00 NBR

0770191015

Unavailable

66

OIL FILLER CAP M24x3 W. O-R

58030120000

Unavailable

67

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

2

PLUG STARTING LEVER

77230001010

Unavailable

4

CIRCLIP DIN0471-17X1

0471170010

Unavailable

5

O-RING 14,00X2,00

0770140200

Unavailable
