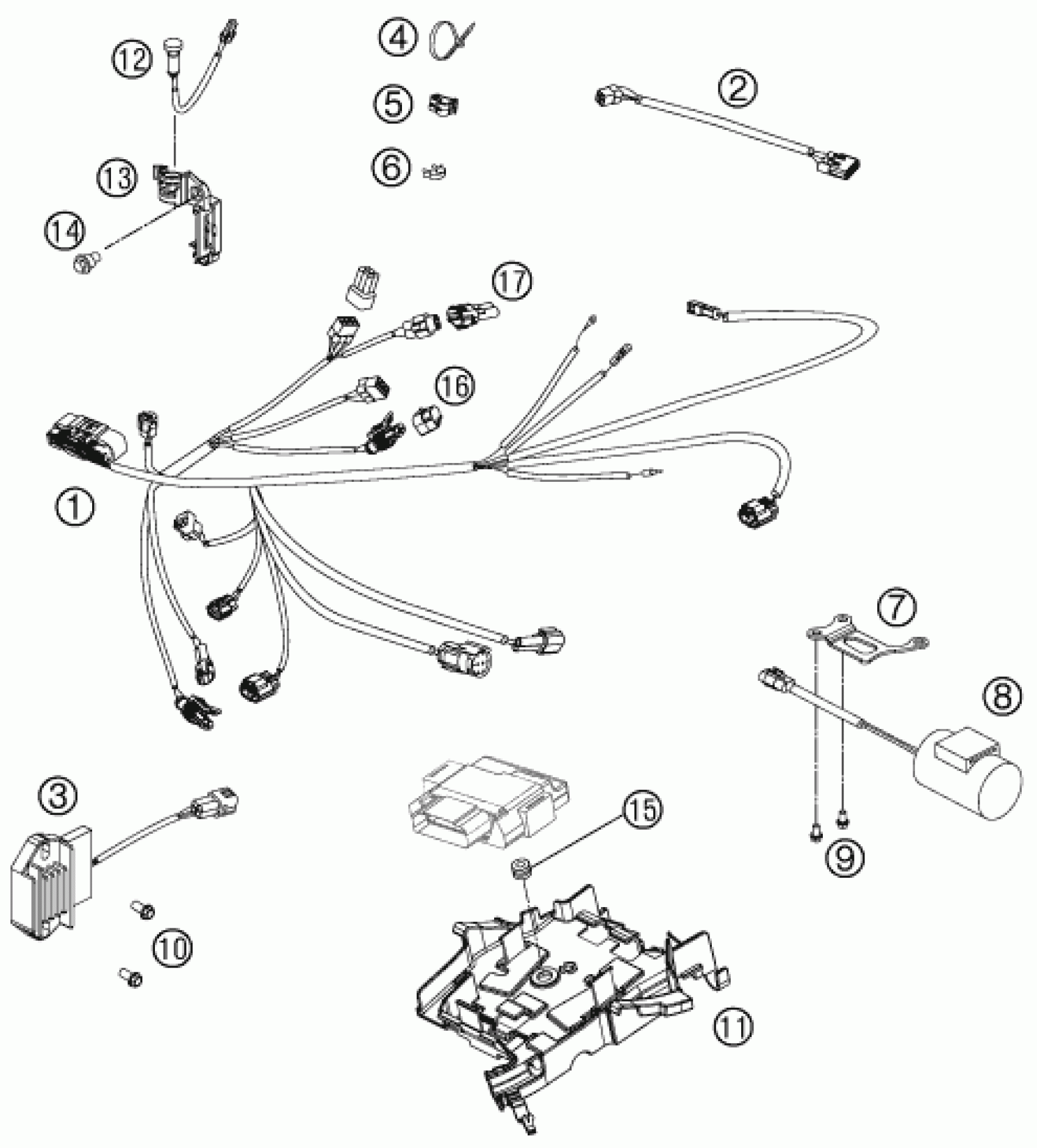

KTM 250 SX-F 2011 WIRING HARNESS Diagram

#

Description
Price

11

ELECTRIC BOX

77211094000

$7.38

8

CONDENSATOR

77111035000

$87.32

9

HH collar screw M6x10 TX30

0025060106

$3.08

1

WIRING HARNESS EFI

77111075000

$211.07

3

Voltage regulator

77211034000

$188.39

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

5

Line guide

83013026000

$3.08

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

RETAINING PLATE CONDENSATOR

77211036000

$7.66

2

WIRING HARNESS KICK-START

77111185000

$27.67

10

HH collar screw M6x20 TX30

0025060206

$3.08

12

INDICATOR LIGHT LED YELLOW FI

81214083000

$31.13

13

HOLDER INDICATOR LIGHT SX

77214098000

$4.11

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

15

PLUG SFL13

55009086000

$2.05

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

END PLUG CAN-BUS 08

69011040000

$20.00

16

DUMMY PLUG MAPSELECTSWITCH

77211010050

$5.23
