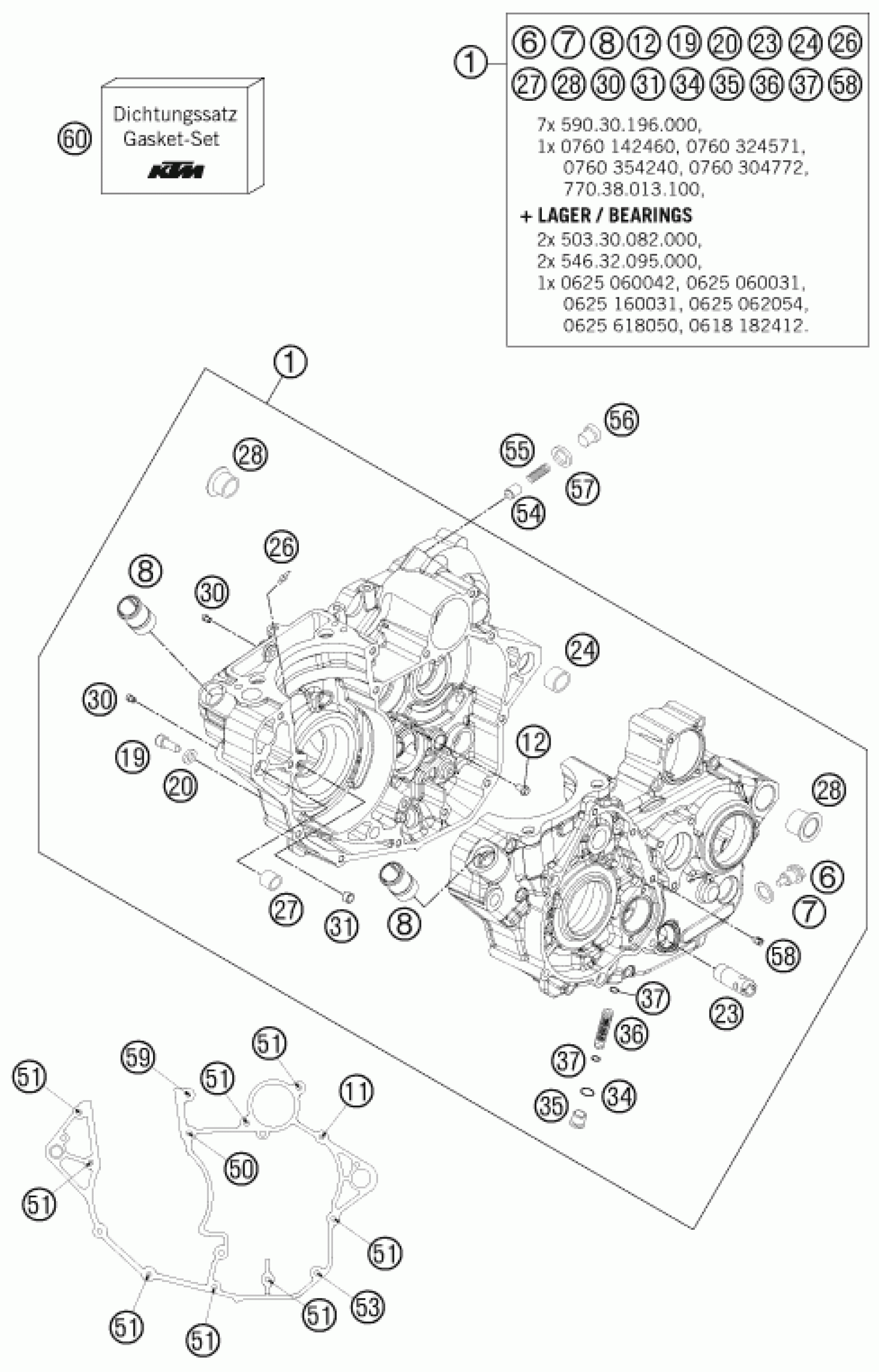

KTM 250 SX-F 2011 ENGINE CASE Diagram

#

Description
Price

51

HH collar screw M6x50 TX30

0025060506

Unavailable

54

VALVE PISTON D=10MM

58038028000

Unavailable

55

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

56

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

57

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

60

GASKET SET 05-11

77030099100

Unavailable

53

HH collar screw M6x30 TX30

0025060306

Unavailable

1

ENGINE CASE CPL. W.TR.BEAR.

77130000044

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

11

HH collar screw M6x40 TX30

0025060406

Unavailable

12

HH collar screw M6x8 TX30

0025060086

Unavailable

19

LOCATING SCREW M8 L=23

58030080000

Unavailable

20

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

24

DOWEL 17 X 19 X 12

59030024000

Unavailable

26

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

28

CASE BUSH

75030010100

Unavailable

30

JET 100 BING(44-031/180) M4

59030058000

Unavailable

34

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

35

SCREW PLUG

77038017000

Unavailable

36

OIL SCREEN 11,8x44,5MM

59038015100

Unavailable

37

O-RING 9X1,5 NBR

0770090015

Unavailable

50

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

58

OIL JET ''60'' M4

80030058060

Unavailable

31

DOWEL 6X8X5,5

77130023000

Unavailable

23

OIL INTAKEPIPE

77038022000

Unavailable

8

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

59

HH collar screw M6x60 TX30

0025060606

Unavailable
