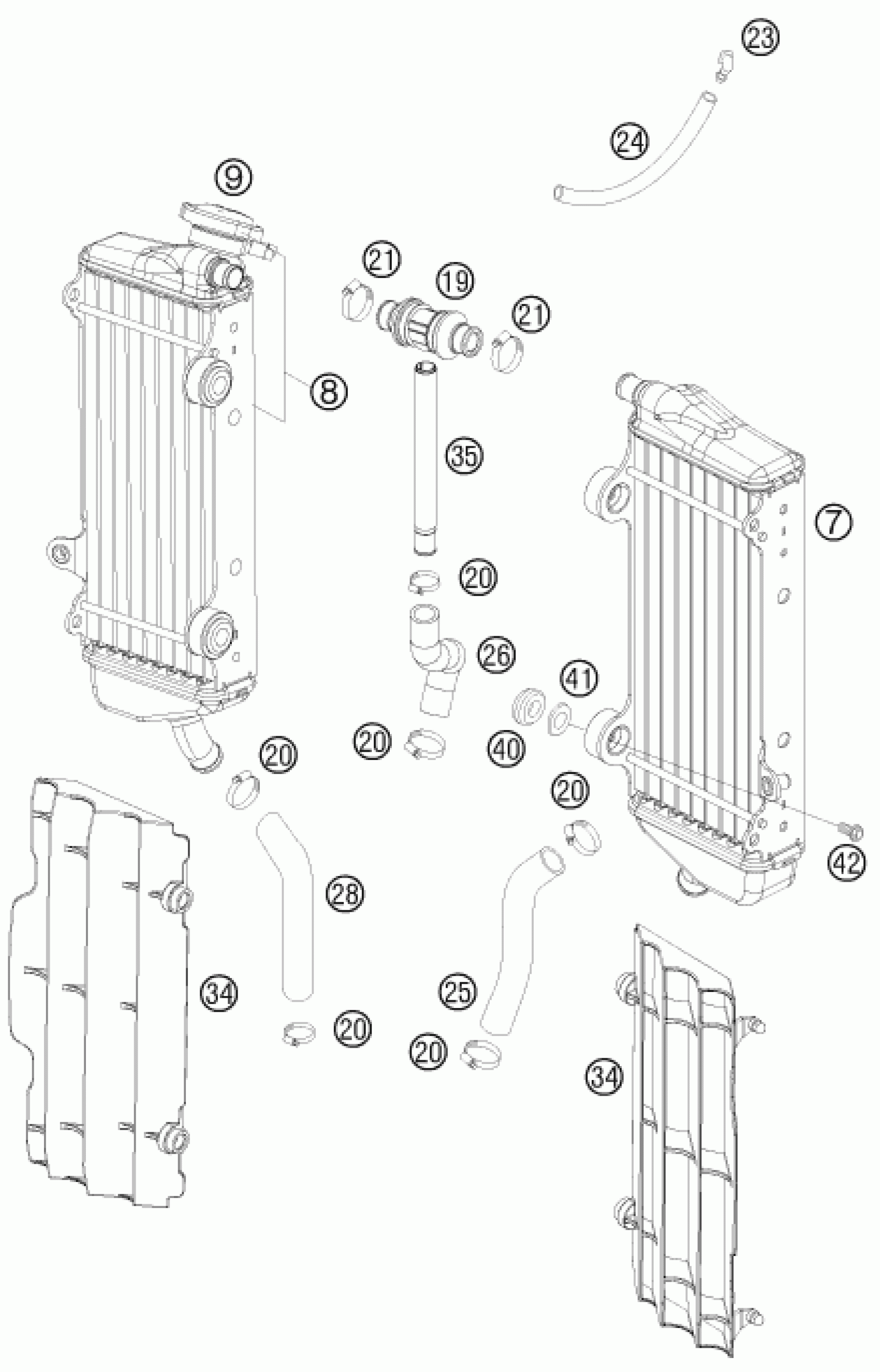

KTM 250 SX-F 2010 COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S 250 SX-F

77035007200

Unavailable

8

RADIATOR R/S ''45518U''

77335008000

Unavailable

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

Unavailable

19

T-CONNECTOR CPL. ´07

77335026000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP NORMA 14/24

42013037400

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE L/S, R/S 250 SXF

77035025000

Unavailable

26

HOSE ENGINE-RADIATOR 07

77035024000

Unavailable

28

RADIATOR HOSE R/S 07

77035027100

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR 4 STROKE 07

77335073000

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

WASHER FOR RADIATOR 08

77335001000

Unavailable

42

COLLAR SCREW M6X12 TX

0023060123

Unavailable
