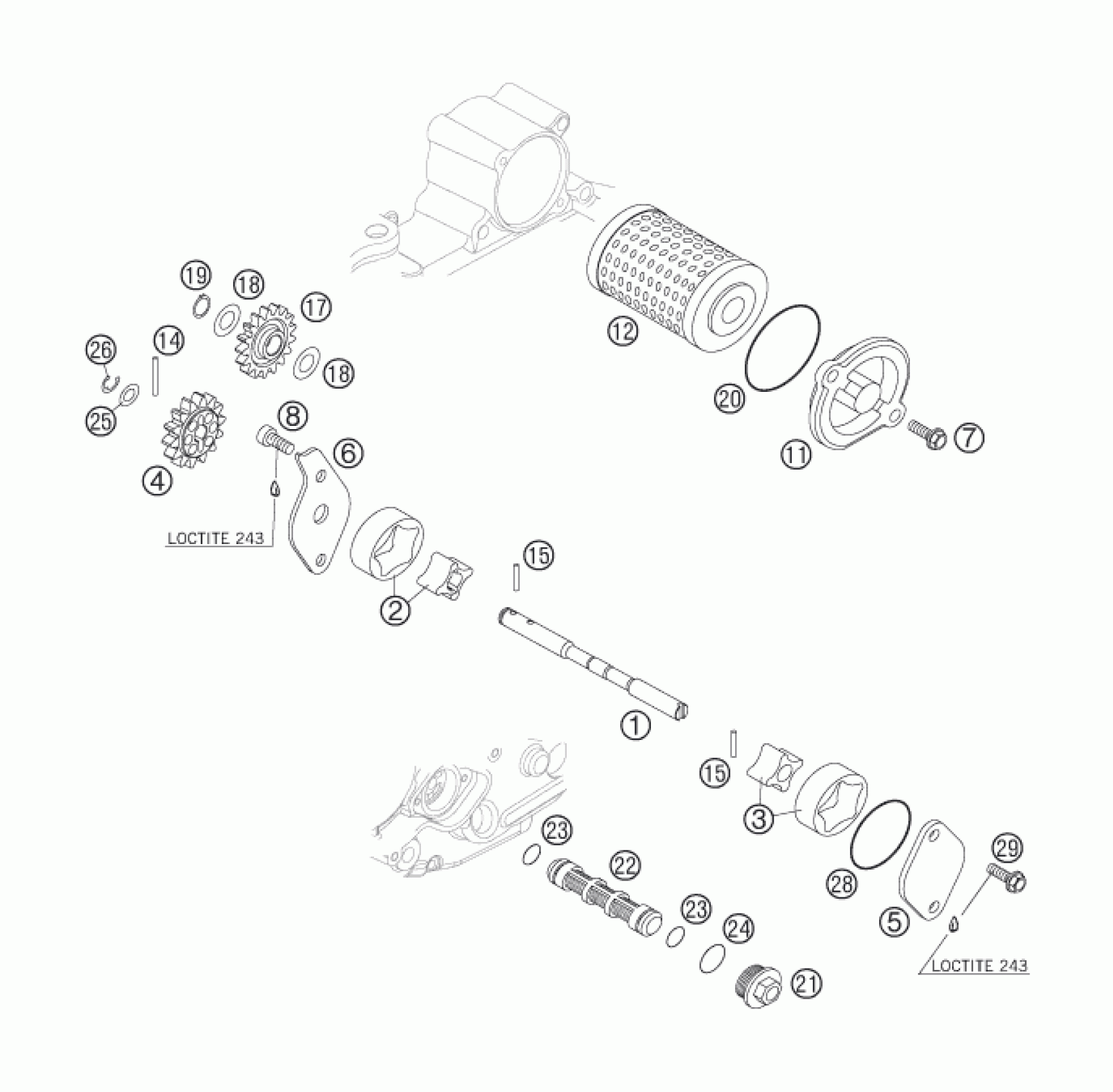

KTM 250 SX-F 2007 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL PUMP SHAFT EXC-F

77038102000

Unavailable

2

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

Unavailable

3

OILPUMP ROTOR 15MM G-164

77038011000

Unavailable

4

OIL PUMP GEAR 14-T

77038001000

Unavailable

5

OIL PUMP COVER L/S 05

77038004000

Unavailable

6

OIL PUMP COVER R/S 05

77038003100

Unavailable

7

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

8

AH SCREW DIN6912-M 5X12

0984050122

Unavailable

11

OIL FILTER COVER RACING

59038041000

Unavailable

12

OIL FILTER 06

77038005000

Unavailable

14

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

15

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

17

OILPUMP IDLER GEAR 17T. 05

77038006000

Unavailable

18

SHIM WASHER DIN0988-12X18X0,50

0988121805

Unavailable

19

retaining ring DIN 471 12x1

0471120010

Unavailable

20

O-RING 40,00X2,50 NBR 70

0770400025

Unavailable

21

PLUG M20X1,5 WS=13

59038017000

Unavailable

22

OIL SCREEN 15X83MM

59038016000

Unavailable

23

O-RING 12,5X1,5 NBR

0770125015

Unavailable

24

O-RING 17,17X1,78 GLO

0770020170

Unavailable

25

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

26

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

28

O-RING 32,00X2,00

0770320020

Unavailable

29

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable
