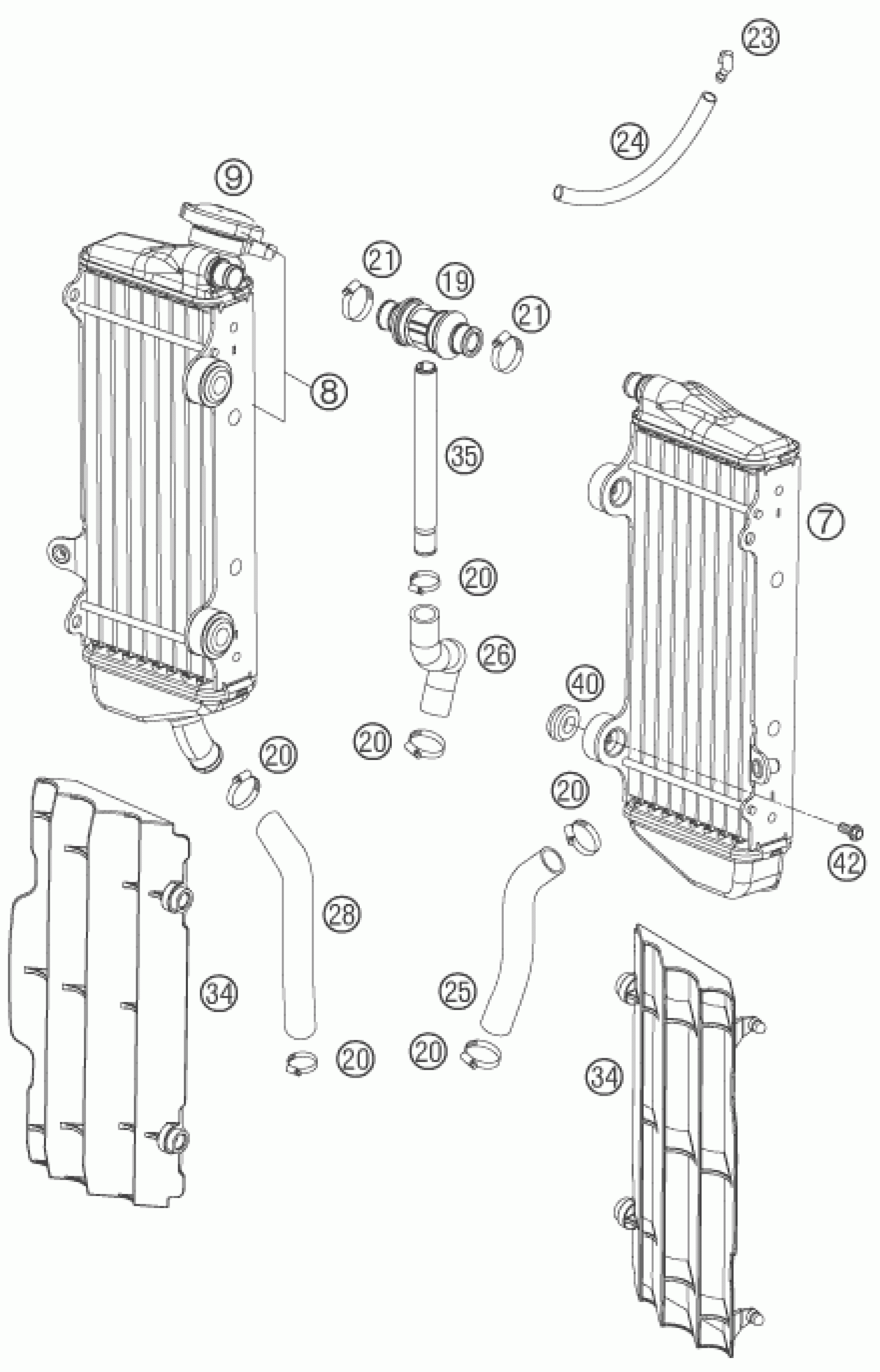

KTM 250 SX-F 2007 COOLING SYSTEM Diagram

#

Description
Price

21

HOSE CLAMP GEMI 12/22

42013037200

Unavailable

19

T-CONNECTOR CPL. ´07

77335026000

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

7

RADIATOR L/S 250 SX-F 07

77035007100

Unavailable

8

RADIATOR R/S ''45518U''

77335008000

Unavailable

9

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE L/S, R/S 250 SXF

77035025000

Unavailable

26

HOSE ENGINE-RADIATOR 07

77035024000

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR 4 STROKE 07

77335073000

Unavailable

42

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

28

RADIATOR HOSE R/S 07

77035027100

Unavailable
