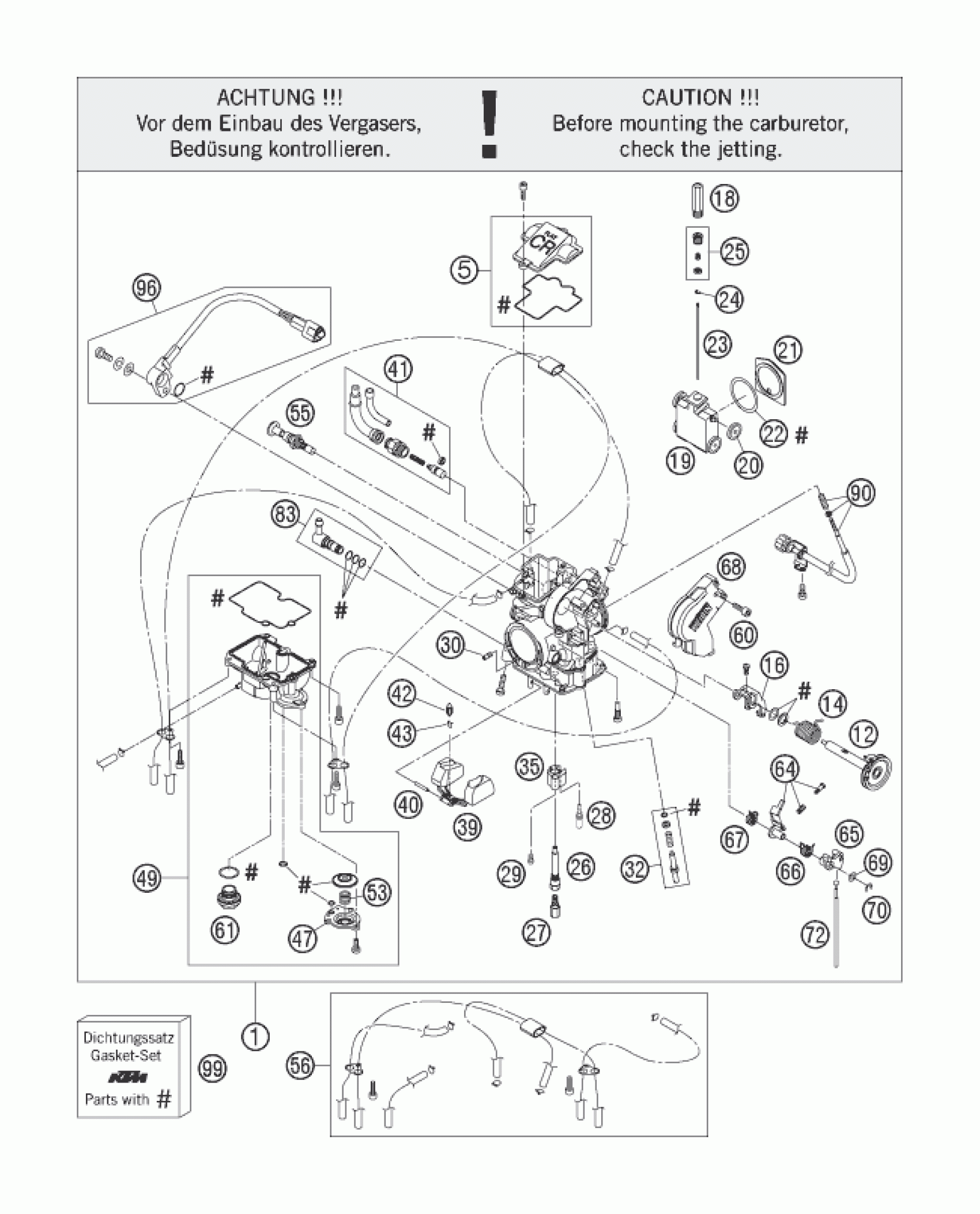

KTM 250 SX-F 2005 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR 2005

77031001000

Unavailable

5

CARBURETOR COVER WITH GASKET

57331027044

Unavailable

12

THROTTLE SHAFT CPL. 06

57331046100

Unavailable

14

COIL SPRING THROTTLE SHAFT

57331046050

Unavailable

16

LINK ARM THROTTLE VALVE CPL.

57331035051

Unavailable

18

SLIDE STOP 03

59031029010

Unavailable

19

THROTTLE VALVE CPL.

57331035000

Unavailable

20

BUSHING THROTTLE VALVE

59031035050

Unavailable

21

GASKET PLATE THROTTLE VALVE 04

57331035153

Unavailable

22

GASKET WASHER THROTTLE VALVE

59031035052

Unavailable

23

JET NEEDLE KEIHIN OBETN

59031034200

Unavailable

23

JET NEEDLE KEIHIN OBETP

59031034100

Unavailable

23

JET NEEDLE KEIHIN OBETQ

59031034300

Unavailable

24

BAR CLIP

59031029000

Unavailable

25

NEEDLE SET SCREW CPL.

57331032000

Unavailable

26

NEEDLE JET FCR-MX

59031121000

Unavailable

27

MAIN JET 155 KEIHIN

54531623155

Unavailable

27

MAIN JET 158 KEIHIN

54531623158

Unavailable

27

MAIN JET 160 KEIHIN

54531623160

Unavailable

27

MAIN JET 162 KEIHIN

54531623162

Unavailable

27

MAIN JET 165 KEIHIN

54531623165

Unavailable

27

MAIN JET 168 KEIHIN

54531623168

Unavailable

27

MAIN JET 170 KEIHIN

54531623170

Unavailable

27

MAIN JET 172 KEIHIN

54531623172

Unavailable

27

MAIN JET 175 KEIHIN

54531623175

Unavailable

28

IDLE JET 38 KEIHIN

54531607038

Unavailable

28

IDLE JET 40 KEIHIN

54531607040

Unavailable

28

IDLE JET 42 KEIHIN

54531607042

Unavailable

29

STARTER JET 85

59031051085

Unavailable

30

IDLE AIR JET 100 KEIHIN

57331107100

Unavailable

32

ADJUST SCREW CPL. FCR-MX

59031017100

Unavailable

35

BUFFER PLATE

57331085000

Unavailable

39

FLOAT CPL.

57331009000

Unavailable

40

ARM PIN FLOAT

57331008000

Unavailable

41

HOT-STARTER VALVE

77031075000

Unavailable

42

FLOAT NEEDLE

54631220000

Unavailable

43

CLAMP

54531621000

Unavailable

47

COVER ACCELERATOR PUMP

57331060000

Unavailable

49

FLOAT CHAMBER CPL. SET 04

80031011044

Unavailable

53

COIL SPRING

59031059000

Unavailable

55

STARTER VALVE CPL.

57331048000

Unavailable

56

BREATH.HOSE FCR-MX KEIHIN CPL.

57331098000

Unavailable

60

SCREW F. COVER KEIHIN

57331038100

Unavailable

61

PLUG M 18X1

54531699000

Unavailable

64

INTERMEDIATE LEVER CPL.

57331062000

Unavailable

65

LINK LEVER

57331056000

Unavailable

66

SPRING LINK LEVER

57331059000

Unavailable

67

SPRING INTERMEDIATE LEVER

57331159000

Unavailable

68

CARBURETOR COVER 06

57331038200

Unavailable

69

WASHER LINK LEVER

57331087000

Unavailable

70

E-CLIP

57331084000

Unavailable

72

ROD ACCELERATOR PUMP

57331061000

Unavailable

90

STOP SCREW CPL. FCR-MX

57331025000

Unavailable

96

TPS-SENSOR FCRMX 190MM 2006

59031077200

Unavailable

99

GASKET SET FCR-MX KEIHIN

57331099000

Unavailable

83

HOSE CONNECTOR CPL.

59031013044

Unavailable
