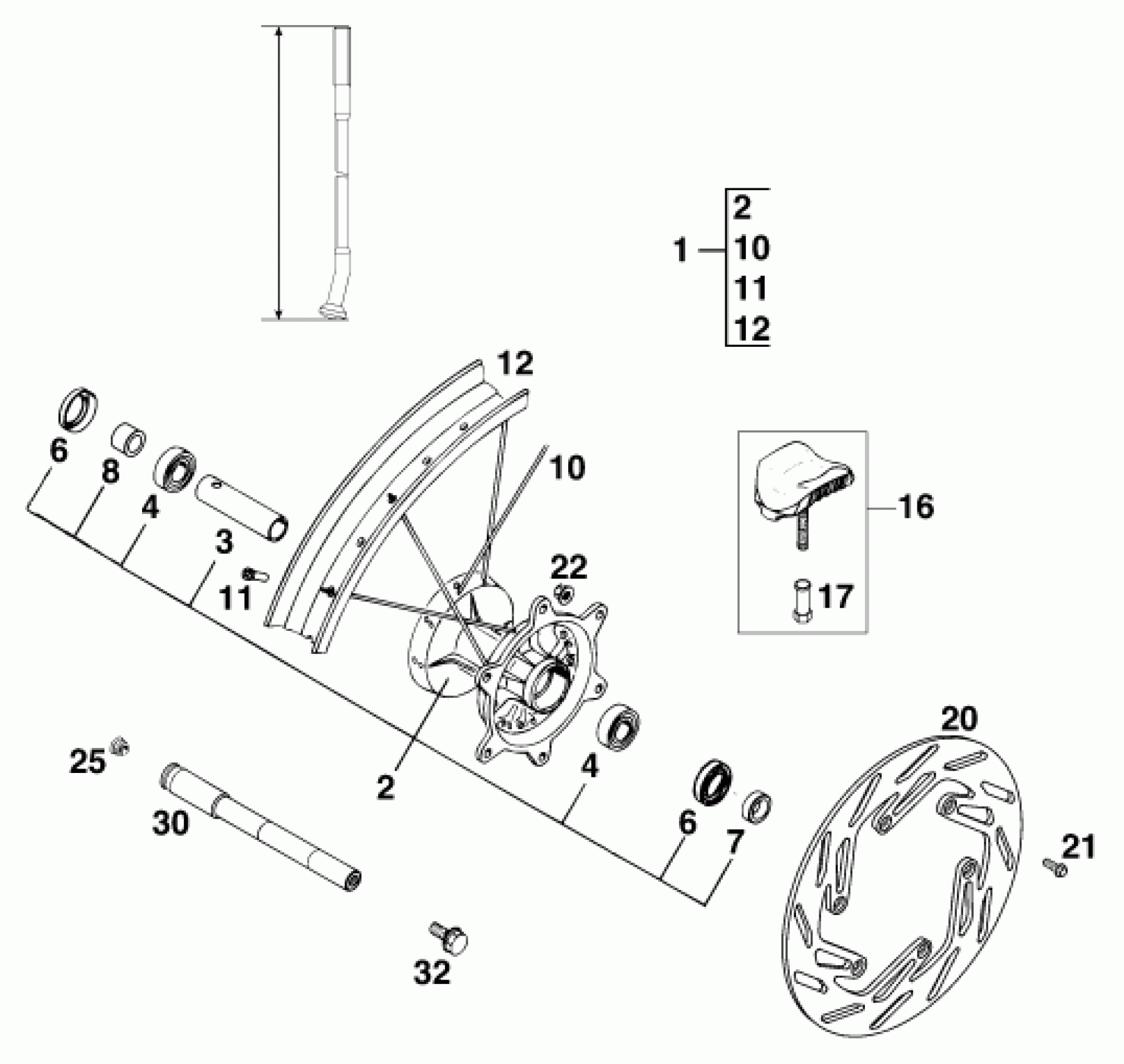

KTM 250 SX '99 <1999> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6X21''EXCEL SX'9

54609001544

Unavailable

2

FRONT WHEEL HUB SILVER SX'94

56509010944

Unavailable

3

BUSHING SPACER TUBE 17,5X22X82

56509011400

Unavailable

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

SPACER BUSHING 17X25X15

54609051100

Unavailable

10

SPOKE M5X234-15G 21'' DDE

58309071234

Unavailable

11

STEEL NIPPLE M5

56509072000

Unavailable

12

FRONT RIM 1,6X21'' EXCEL AL4

54609070100

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

FRONT BRAKE DISK D=260MM

56509060700

Unavailable

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

Unavailable

30

FRONT AXLE L=235MM

50309081000

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

Unavailable
