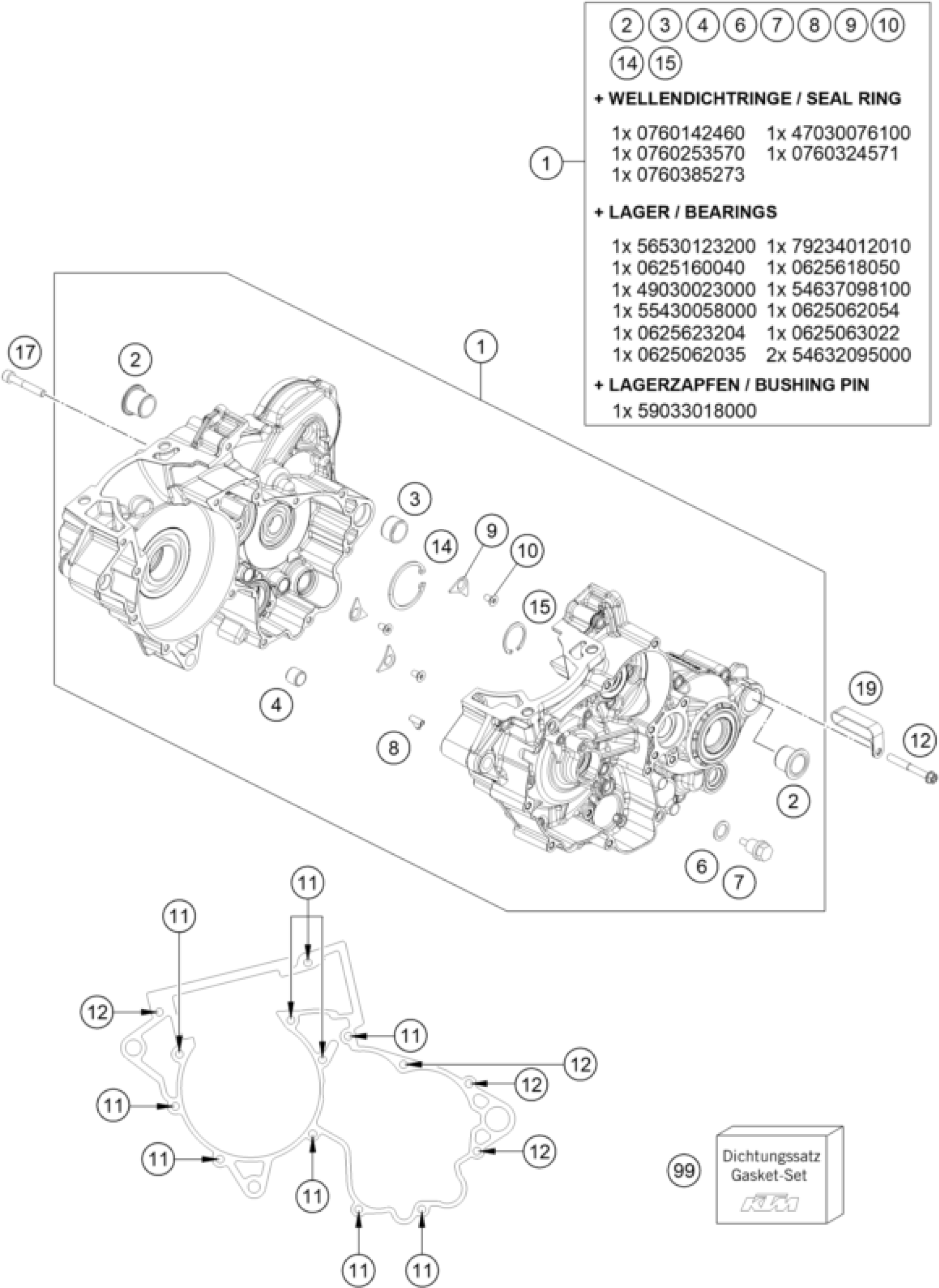

KTM 250 SX 2021 ENGINE CASE Diagram

#

Description
Price

1

Engine case cpl.

55530000144

Unavailable

2

CASE BUSH

75030010100

Unavailable

3

Dowel, 21x12

54830027100

Unavailable

4

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

6

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

7

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

8

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

9

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

12

HH collar screw M6x60 TX30

0025060606

Unavailable

14

CIRCLIP DIN0472-42X1,75

0472042175

Unavailable

15

CIRCLIP DIN0472-28X1,2

55430059100

Unavailable

17

AH SCREW DIN0912 M 6X40

0912060406

Unavailable

19

Bracket for bleeding tube

55430090000

Unavailable

99

Gasket Kit Engine 250/300 2021

55530199000

Unavailable
