CYLINDER, CYLINDER HEAD

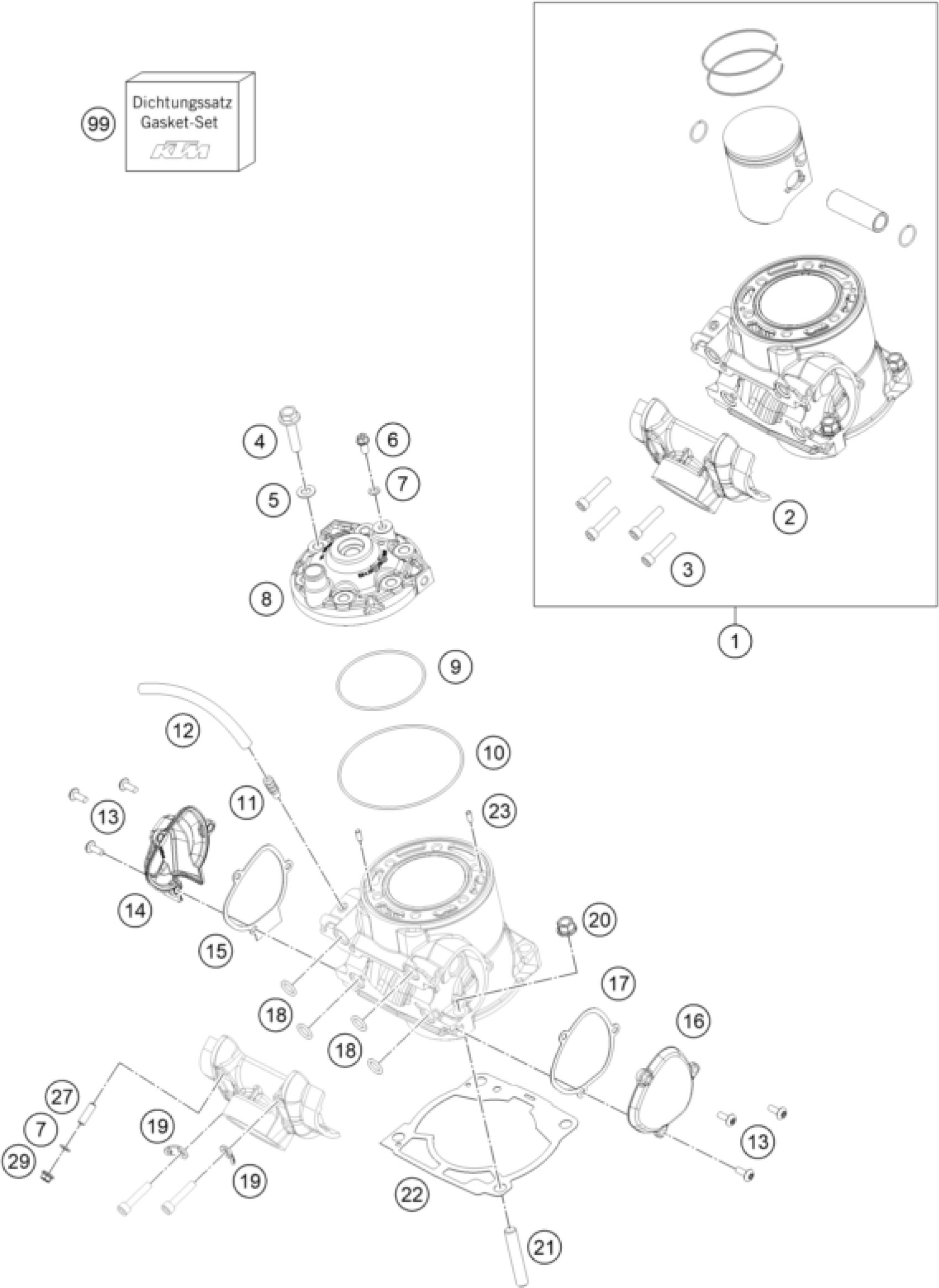

KTM 250 SX 2021 CYLINDER, CYLINDER HEAD Diagram
#
Description
Price
1
Cylinder + Piston MX 250 202
55530038100
Unavailable
2
Intermediate flange
55537301000
Unavailable
3
AH SCREW DIN0912-M 6X35
0912060353
Unavailable
4
COLLAR SCREW M 8X35 WS=13
54830079000
Unavailable
5
CU-SEAL RING 8 X 16 X 1
56530080000
Unavailable
6
HH collar screw M6x12 TX30
0025060126
Unavailable
7
CU-SEAL RING DIN7603-6X10X1
0603061001
Unavailable
8
Cylinder head 250 SX
55430006100
Unavailable
9
O-RING 73,00X2,00 VITON
0770730020
Unavailable
10
O-ring 105x2
0770105020
Unavailable
11
VACUUM CONNECTION M6
78036020090
Unavailable
12
PVC-HOSE 6X9
50335030001
Unavailable
13
Oval head screw M5x14 TX25
58605083014
Unavailable
14
exhaust control cover rh
5483700710015
Unavailable
15
Gasket control cover, right
55537008000
Unavailable
16
CONTROL COVER L/S 09
5483700500015
Unavailable
17
Gasket control cover, left
55537006000
Unavailable
18
O-RING 11,3 X2,4 SILICON
0770116241
Unavailable
19
RETAINING PLATE
51005074000
Unavailable
20
Collar nut M10-SW13 ZnNi
55530044000
Unavailable
21
Stud M10x35
0835100353
Unavailable
22
CYLINDER BASE GASKET
55430030025
Unavailable
22
CYLINDER BASE GASKET
55430030020
Unavailable
22
CYLINDER BASE GASKET
55430030040
Unavailable
22
CYLINDER BASE GASKET
55430030050
Unavailable
22
CYLINDER FOOT GASKET
55430030075
Unavailable
23
Needle roll.DIN5402 NRB 4X9.8
0402040980
Unavailable
27
THREAD PIN DIN0913-M 6X20
0913060203
Unavailable
29
COLLAR NUT M6X1 SW8
77336088106
Unavailable
99
Gasket set piston 250/300
55430097000
Unavailable
