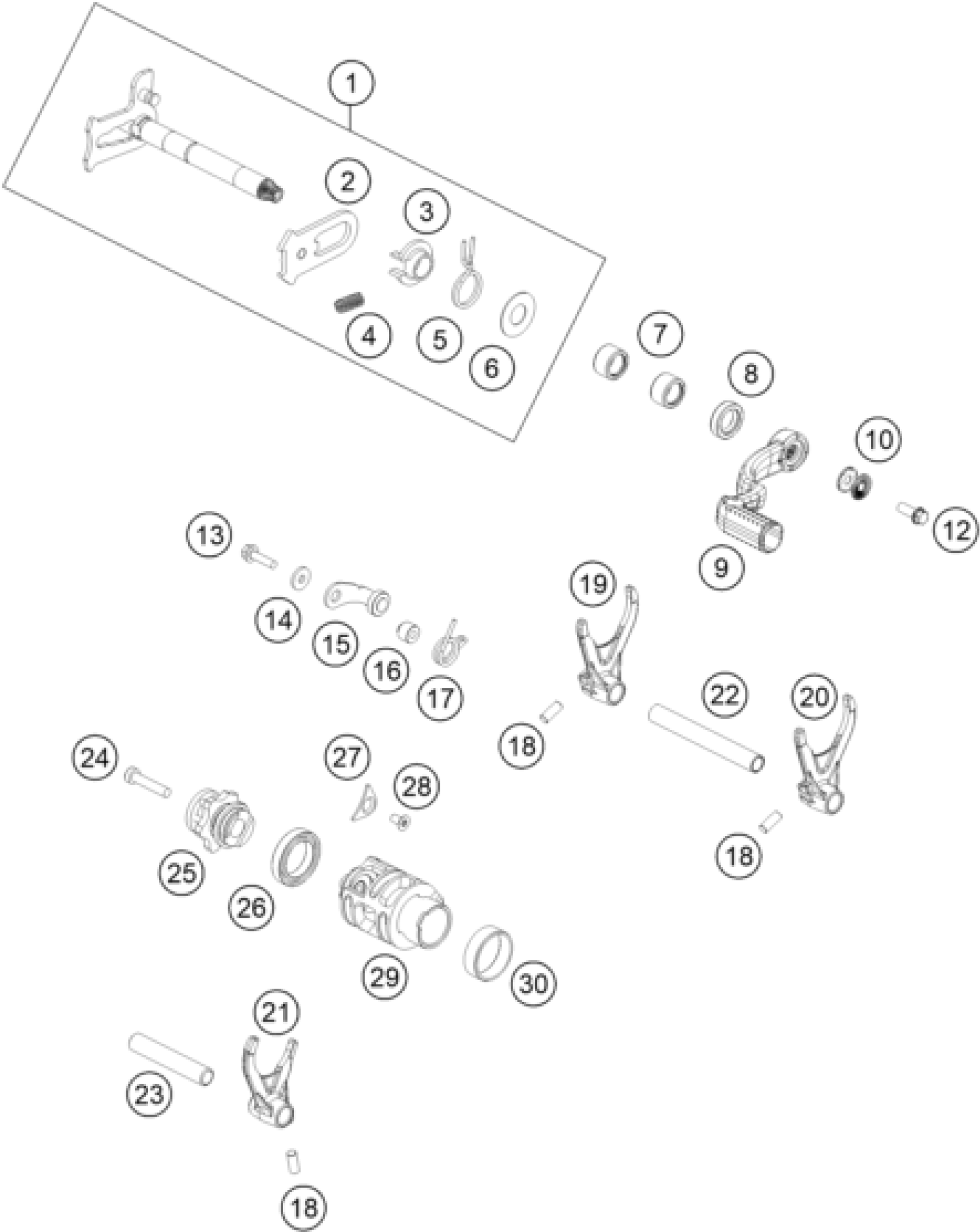

KTM 250 SX 2017 SHIFTING MECHANISM Diagram

#

Description
Price

3

SPRING GUIDE

54634020000

Unavailable

4

TENSIONING SPRING 0,8MM

56534013100

Unavailable

5

RETURN SPRING 03

54834014000

Unavailable

6

STOP DISK 14X30X1

54634050000

Unavailable

7

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

8

radial shaft seal 14x24x6 B

0760142460

Unavailable

9

SHIFTING LEVER CPL.

55434031000

Unavailable

10

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

12

HH collar screw M6x15 TX30

0024060156S

Unavailable

13

HH collar screw M5x20 TX30

0025050206

Unavailable

14

WASHER DIN7349-5X15X2

0349000050

Unavailable

15

LOCKING LEVER CPL.

55434024000

Unavailable

16

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

17

LOCKING LEVER SPRING

55434023100

Unavailable

18

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

19

SHIFTING FORK 1ST/3RD GEAR

79234003000

Unavailable

20

SHIFTING FORK 2ND GEAR

79234002000

Unavailable

21

SHIFTING FORK 4TH/5TH GEAR

79234001000

Unavailable

22

SHIFTING MAIN L=93MM 05

77034019000

Unavailable

23

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

Unavailable

24

AH SCREW DIN6912 M 6X30

0984060302

Unavailable

25

GEARSHIFT CPL.

55434015000

Unavailable

26

BALL BEARING 61805 C3

0625618050

Unavailable

27

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

28

hex lobe countersunc screw M5x

0019050106S

Unavailable

29

SHIFT ROLLER 5G

79234012000

Unavailable

30

FRICTION BEARING CONTROLLER

79234012010

Unavailable

1

SHIFT SHAFT CPL.

55434005133

Unavailable

2

SLIDING PLATE CPL.

79234008144

Unavailable
