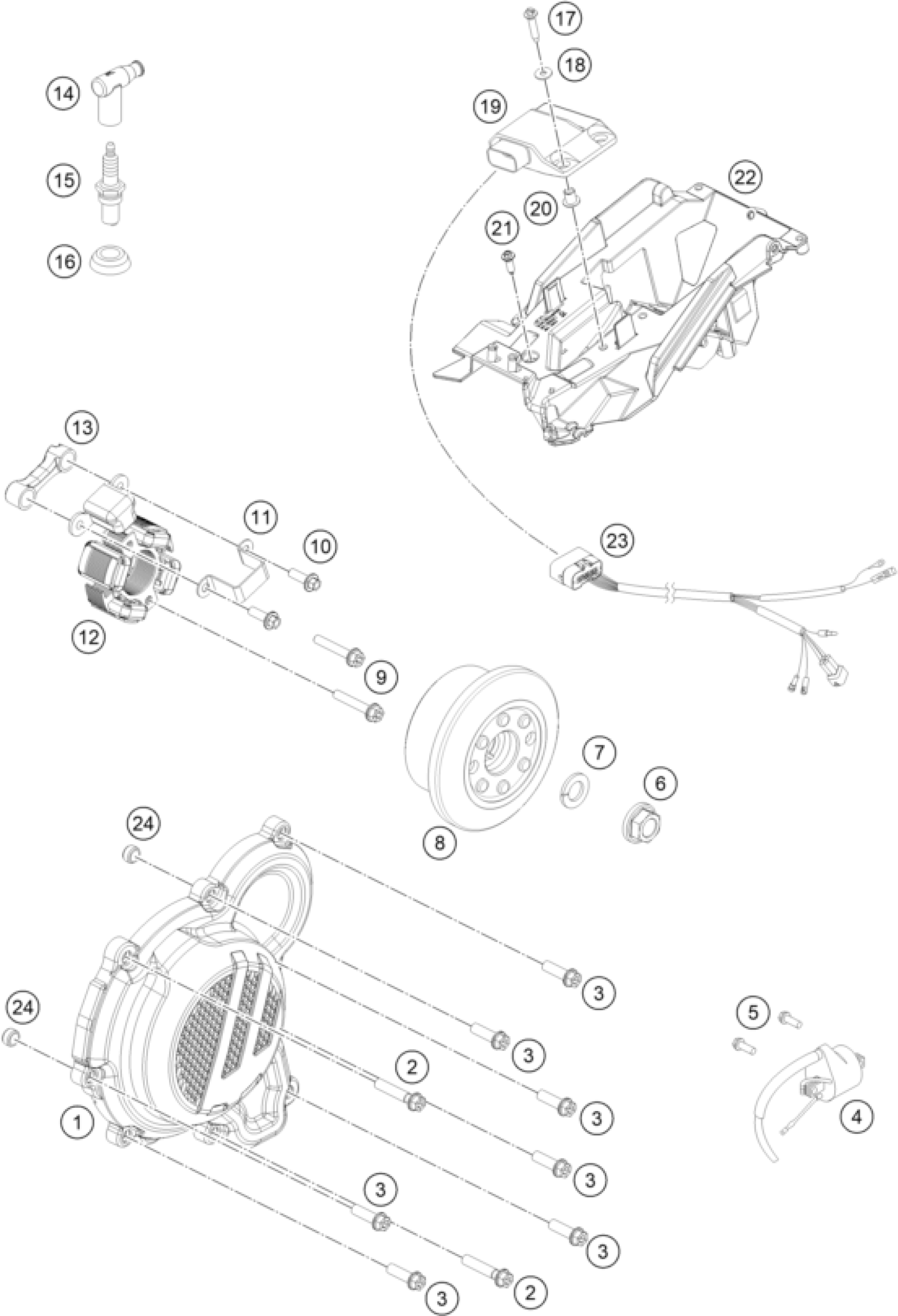

KTM 250 SX 2017 IGNITION SYSTEM Diagram

#

Description
Price

24

DOWEL 9,8X7X5.5

45230024000

Unavailable

3

HH collar screw M6x20 TX30

0025060206

Unavailable

4

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

5

HH collar screw M5x16 TX30

0025050166

Unavailable

6

COLLAR NUT M12X1 R/S

49030021000

Unavailable

7

LOCKING RING VSK 12

50230029012

Unavailable

8

ROTOR

55439005100

Unavailable

9

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

10

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

11

PICKUP BRACKET

50439004010

Unavailable

12

STATOR

55439004000

Unavailable

13

DISTANCE UNIT

50439013100

Unavailable

14

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

15

SPARK PLUG NGK BR8ECM

54331093410

Unavailable

1

IGNITION COVER

55430002000

Unavailable

2

HH collar screw M6x25 TX30

0025060256

Unavailable

16

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

17

Special screw K60X30 WS=6

0017060305

Unavailable

18

washer DIN 9021 A - 5.3

0021050003

Unavailable

19

ELECTRONIC CASE 250SX 17

55439031000

Unavailable

20

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

Unavailable

21

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

22

BATTERY BOX

79011055000

Unavailable

23

WIRING HARNESS FOR CDI 2-ST.07

54839032200

Unavailable
