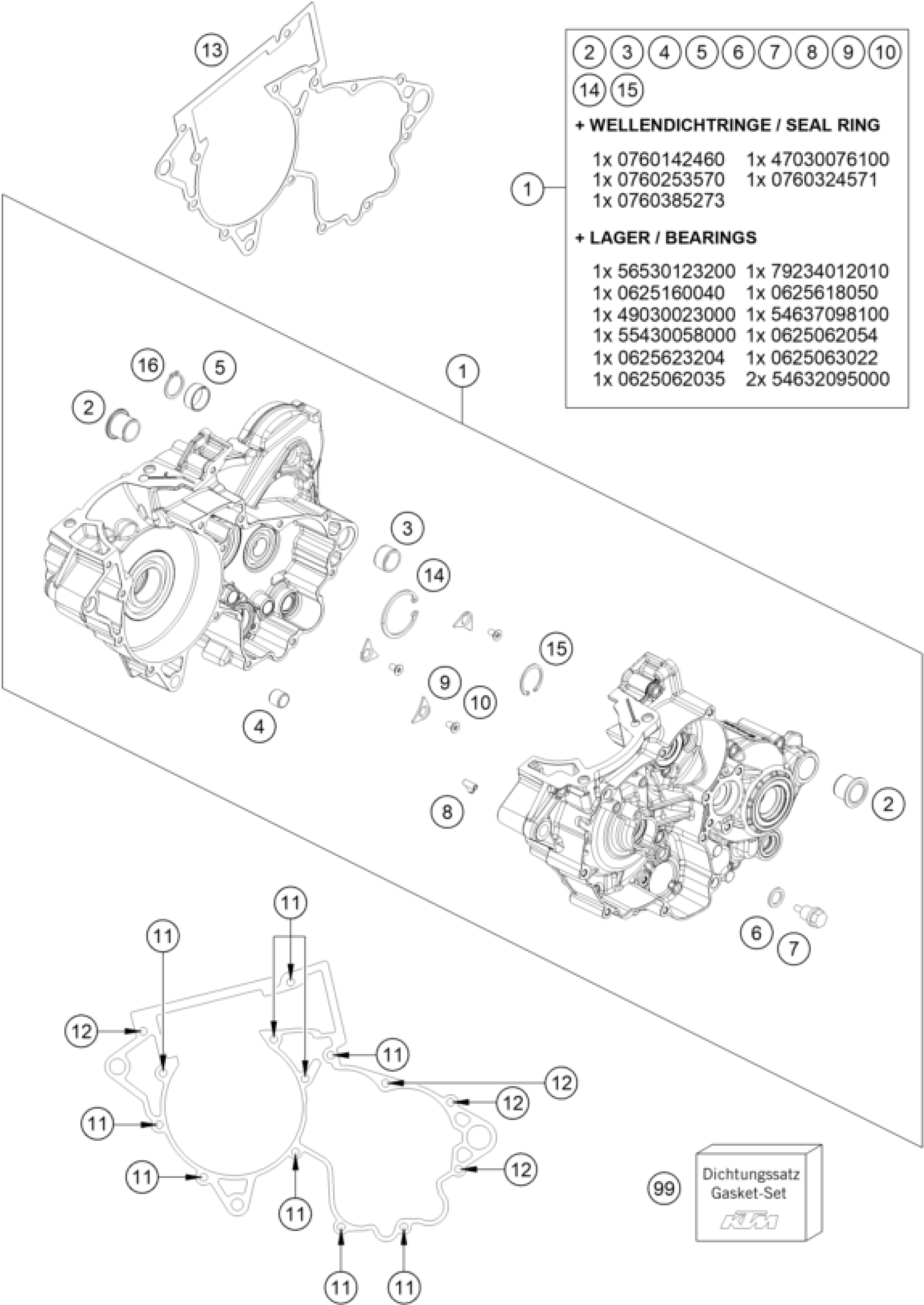

KTM 250 SX 2017 ENGINE CASE Diagram

#

Description
Price

1

ENGINECASE CPL.

55430000044

Unavailable

2

CASE BUSH

75030010100

Unavailable

3

DOWEL 21X12 03

54830027000

Unavailable

4

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

5

CAROBRONZE BUSH

79433053050

Unavailable

6

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

7

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

8

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

9

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

12

HH collar screw M6x60 TX30

0025060606

Unavailable

13

ENGINE CASE GASKET

55430039000

Unavailable

14

CIRCLIP DIN0472-42X1,75

0472042175

Unavailable

15

CIRCLIP DIN0472-28X1,2

55430059100

Unavailable

99

GASKET SET 250 EXC/SX 17

55430199000

Unavailable

16

CIRCLIP DIN471 20X1,2

0471200120

Unavailable
