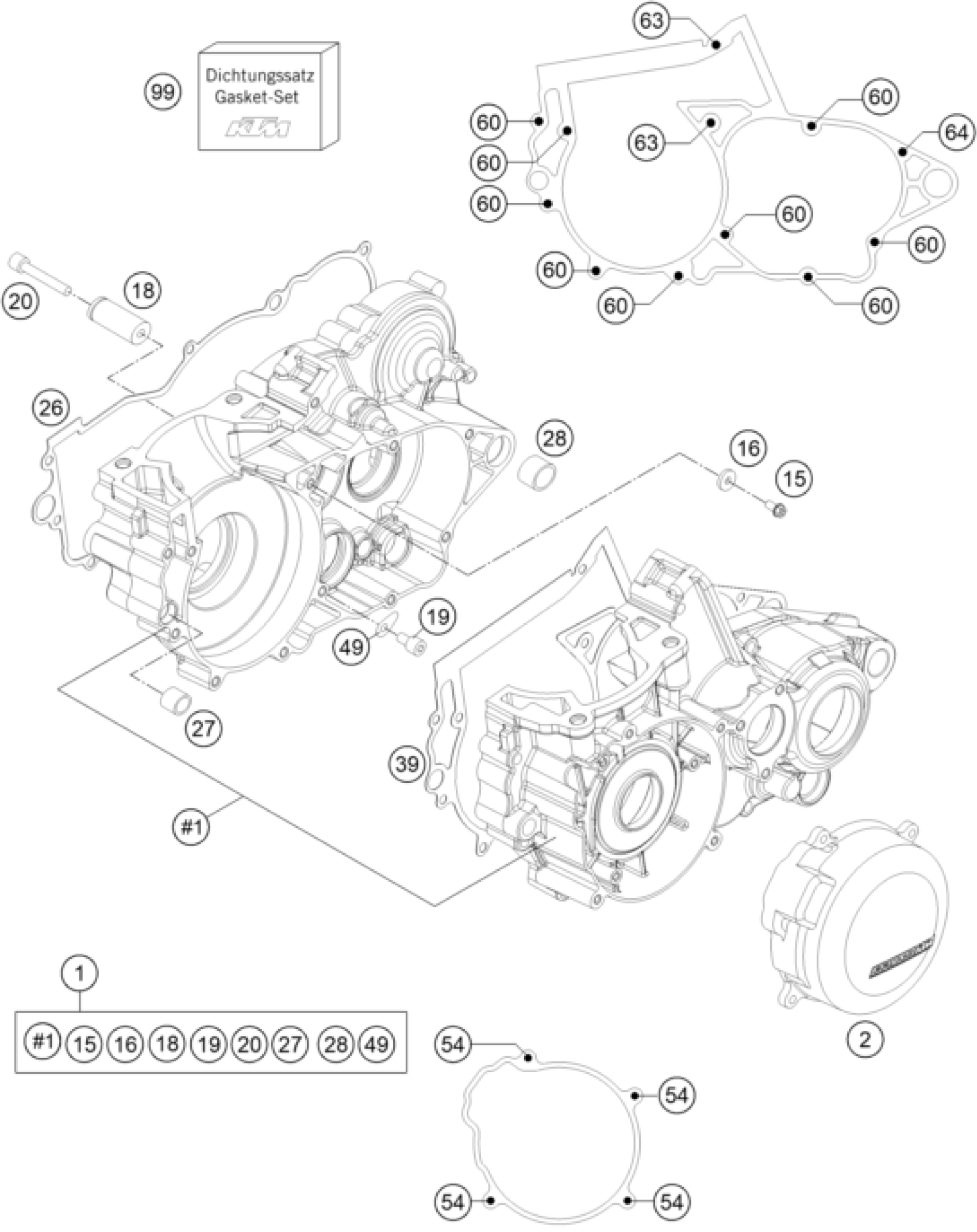

KTM 250 SX 2015 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W. BEARING 13

54830000244

Unavailable

2

IGNITION COVER

54830002500

Unavailable

15

HH collar screw M6x12 TX30

0025060126

Unavailable

16

STEEL WASHER 6,4X17X3

50232050001

Unavailable

18

BUSHING PIN 2000

59033018000

Unavailable

19

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

20

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

26

CLUTCH COVER GASKET INSIDE

54830024100

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

28

DOWEL 21X12 03

54830027000

Unavailable

39

ENGINE CASE GASKET 2003

54830039000

Unavailable

49

RETAINING PLATE

54634049000

Unavailable

54

HH collar screw M5x16 TX30

0025050166

Unavailable

60

HH collar screw M6x40 TX30

0025060406

Unavailable

63

HH collar screw M6x55 TX30

0025060556

Unavailable

64

HH collar screw M6x60 TX30

0025060606

Unavailable

99

GASKET SET 250 07

54830099100

Unavailable
