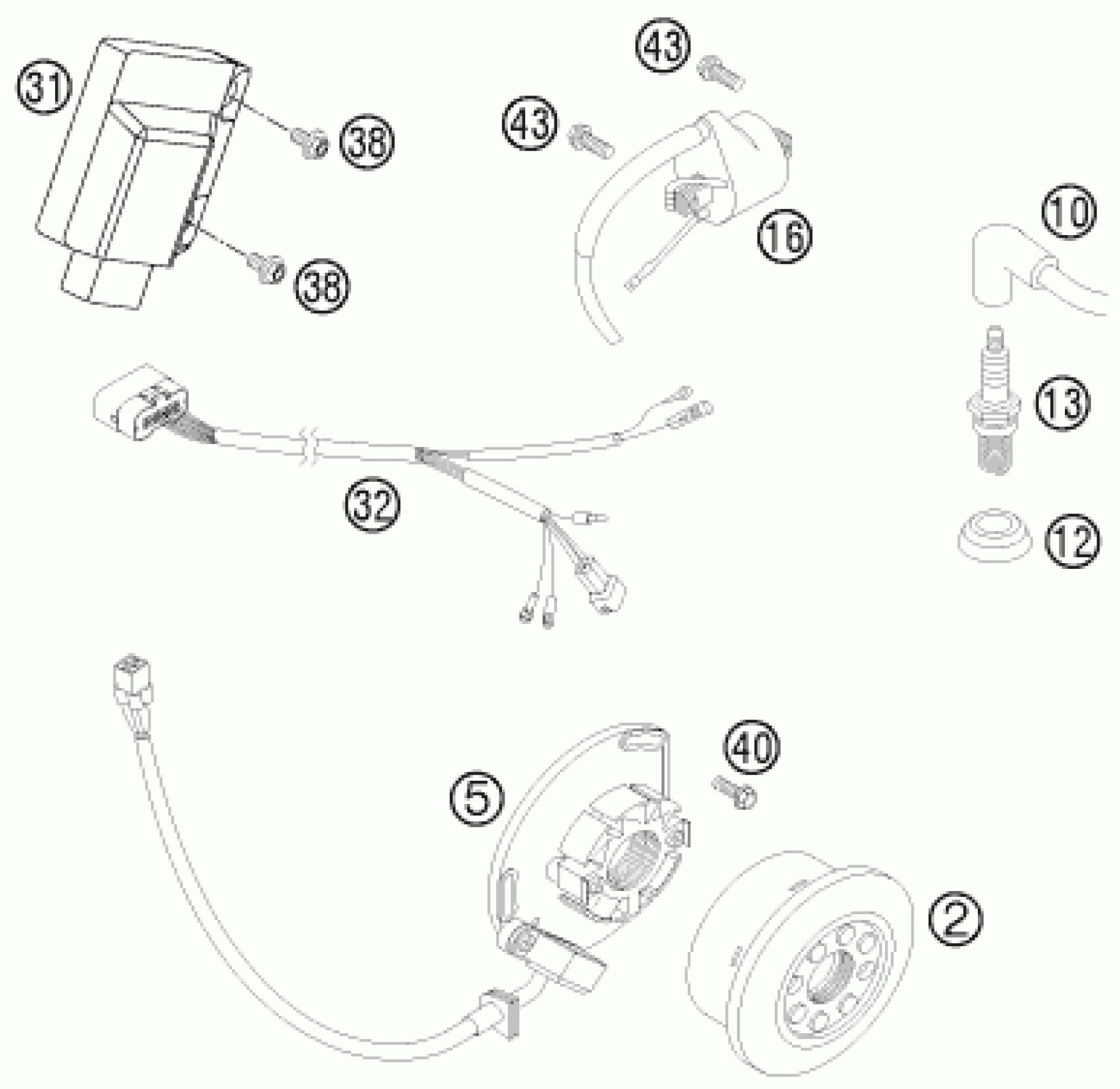

KTM 250 SX 2009 IGNITION SYSTEM Diagram

#

Description
Price

2

FLYWHEEL KOKUSAN 2K-2 CPL. '97

54739005144

Unavailable

5

STATOR KOKUSAN 2K-1 2006

54839004000

Unavailable

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

12

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

13

SPARK PLUG NGK BR8ECM

54331093410

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

31

CDI UNIT 250 SX 07

54839031800

Unavailable

32

WIRING HARNESS F.CDI 2-ST.SX07

54839032300

Unavailable

38

COLLAR SCREW M6X12 TX

0023060123

Unavailable

40

HH collar screw M5x16 TX30

0025050166

Unavailable

43

HH collar screw M6x16 TX30

0025060166

Unavailable
