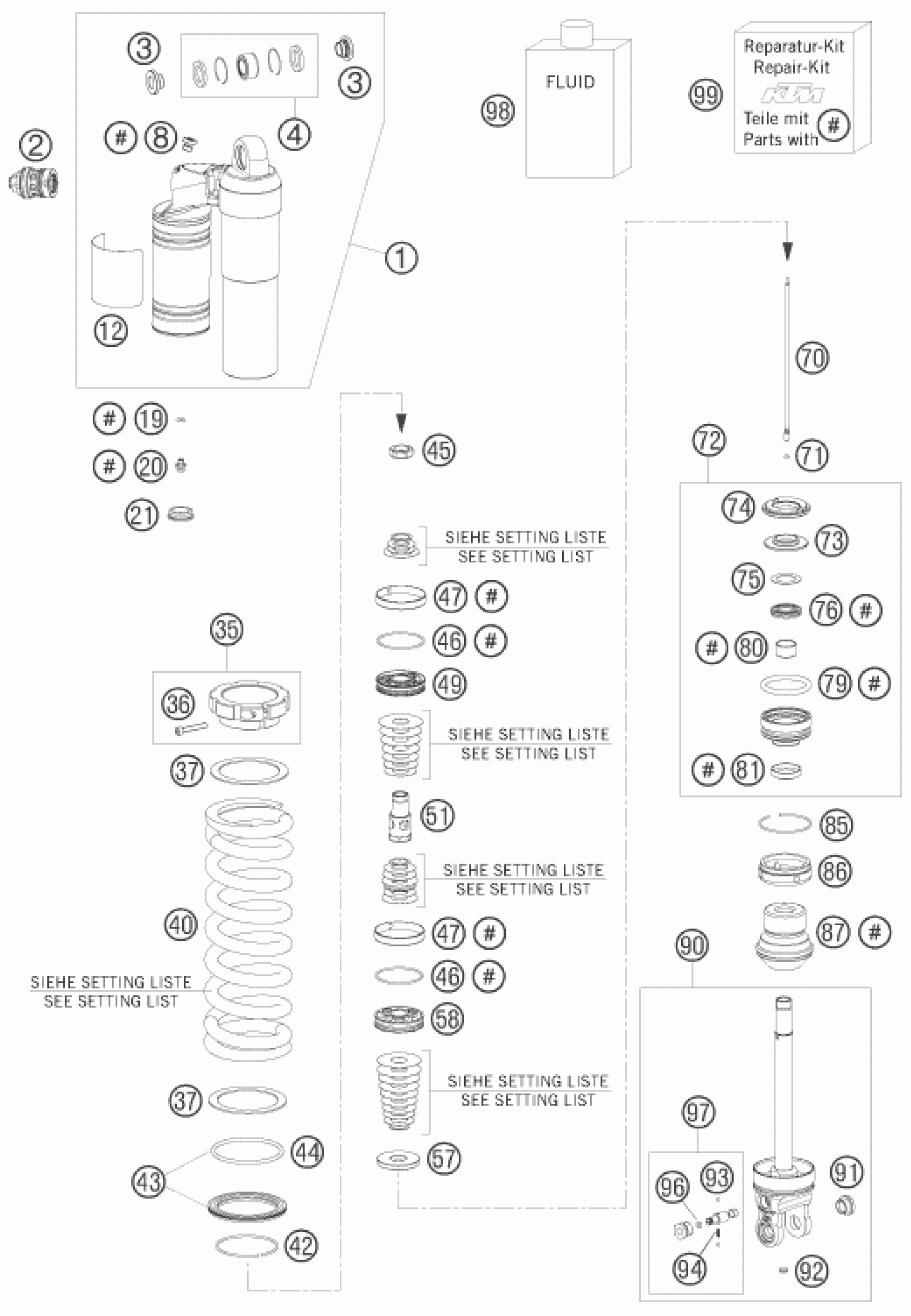

KTM 250 SX 2008 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

40

SPRING 250 69N/MM ORANGE

91210068S

Unavailable

40

SPRING 250 72N/MM ORANGE

91210069S

Unavailable

42

Round-wire snap ring 58,5x2

50180273

Unavailable

43

SPRING RET. D=80 W. O-RING 05

50180463S

Unavailable

44

O-ring 66,27x1,78 Viton70

50180352

Unavailable

45

Piston rod nut 16x1

50180141

Unavailable

46

O-ring 44x,17x1,78 Viton70

50180099

Unavailable

47

Piston ring 47,95x49,95x8

50180135

Unavailable

49

PISTON 6+6X3,5/4,5

50180446

Unavailable

51

HOLDER D=16 M16X1 L=44 08

50180601

Unavailable

57

REBOUND DISC D=34, H=5

50180516

Unavailable

58

Piston 16,05x49,6x13,5 4,5/7

50180197

Unavailable

70

NEEDLE L=171

50180513

Unavailable

71

O-ring 2,2x1,6 Viton75 green

46811265

Unavailable

72

Sealholder 50x28 cpl.

50180603S

Unavailable

73

Washer 18,5x43,7x6

50180113

Unavailable

74

Rubber pad rebound 27x48x8 NBR

50180107

Unavailable

75

Shim 29.75x19x0.4

50180604

Unavailable

76

Seal ring cpl. 18x30x5

50180605S

Unavailable

79

O-ring 41x5 NBR70

50180103

Unavailable

1

TOP PART CPL. M57,5X1 H30,5 08

50180597S1

Unavailable

2

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

Unavailable

3

Distance bush 12x15/18/24,5x10

46180007

Unavailable

4

Ball joint bearing kit top 12m

R12012

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

12

WP CAUTION (PDS KTM) 58X83

52000041

Unavailable

19

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

20

HS lock screw M5x6

36120151

Unavailable

21

Rubber cap do not open 22x5,5

46811208

Unavailable

35

SPRING RETAINER M57,5X1+SCREW

50180520S

Unavailable

36

HS cylinder-head screw M5x30

50180327

Unavailable

37

Intermediate washer spring 61,

50180114

Unavailable

40

SPRING 250 63N/MM ORANGE

91210053S

Unavailable

40

SPRING 250 66N/MM ORANGE

91210054S

Unavailable

80

Guide bushing 18x20x12

46180119

Unavailable

81

Dirt scarper NOK 18mm black

50180606

Unavailable

85

Round-wire snap ring 53x1,75

50180126

Unavailable

86

COVER D=50 07

50180511

Unavailable

87

Rubber pad 17x58x59

50180480

Unavailable

90

MONOSHOCK LOWER PART CPL. 07

50180512S1

Unavailable

91

Threaded bush M12 d20

50180105

Unavailable

92

Rubber plug 8x3,5 NBR50

50180297

Unavailable

93

Steel ball d3

40540603

Unavailable

94

Spring (1,7) l7,9

48600028

Unavailable

96

O-ring 4x1,5 NBR70

50180222

Unavailable

97

ADJUSTING SCREW REBOUND TRAVEL

50180434S

Unavailable

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

99

REPAIR KIT 5018 PDS 06

R12014

Unavailable
