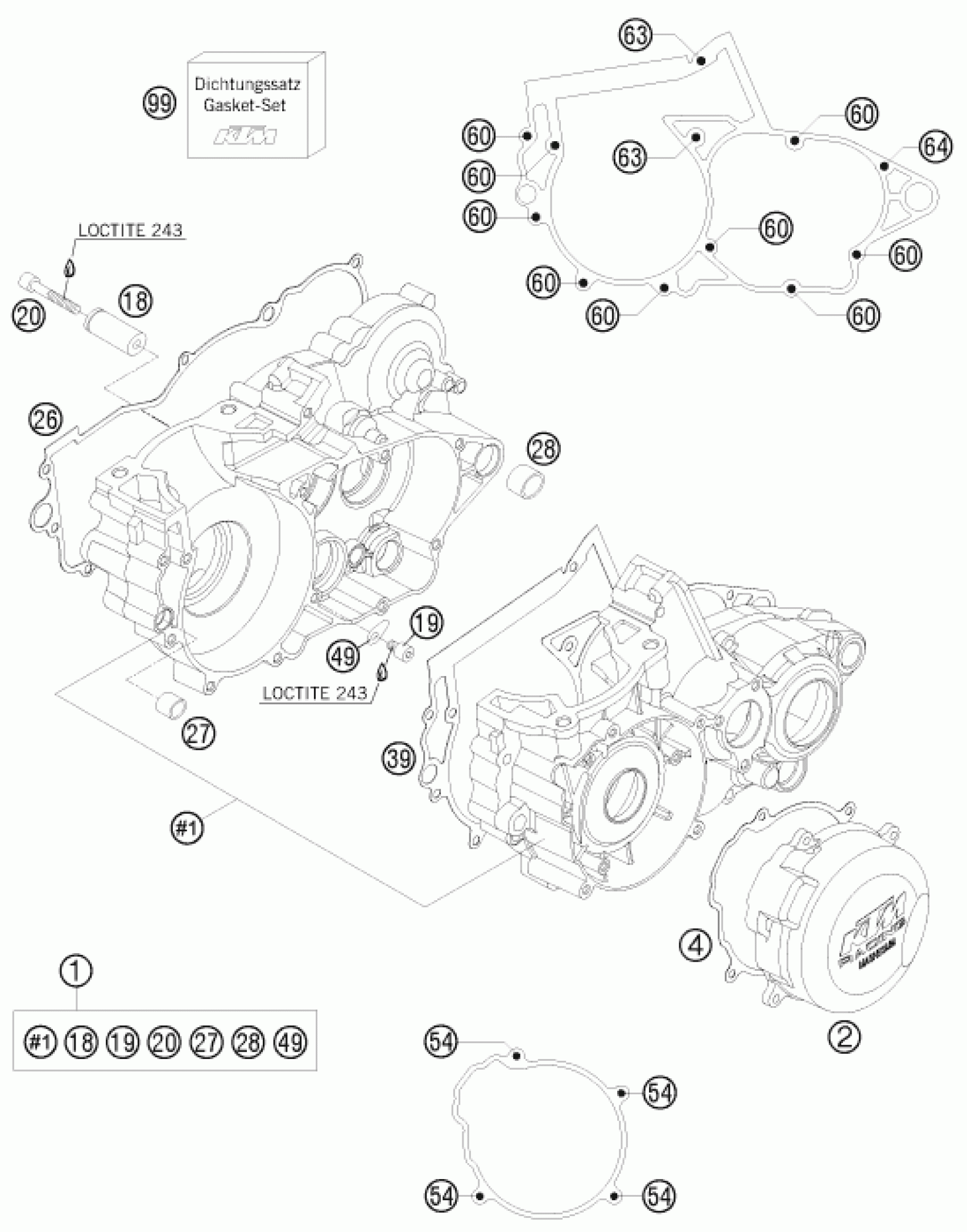

KTM 250 SX 2008 ENGINE CASE Diagram

#

Description
Price

99

GASKET SET 250 07

54830099100

Unavailable

63

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

1

ENGINE CASE CPL. WITH BEAR 08

54830000144

Unavailable

2

IGNITION COVER GREY

5483000200025

Unavailable

4

IGNITI.COVER GASKET 250/300 03

54830040000

Unavailable

18

BUSHING PIN 2000

59033018000

Unavailable

19

AH collar screw DIN 912 M6x8

0912060083

Unavailable

20

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

26

CLUTCH COVER GASKET 2003

54830024000

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

28

DOWEL 21X12 03

54830027000

Unavailable

39

ENGINE CASE GASKET 2003

54830039000

Unavailable

49

RETAINING PLATE

54634049000

Unavailable

54

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

60

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

64

HH COLLAR SCREW M 6X60 WS=8

0015060603

Unavailable
