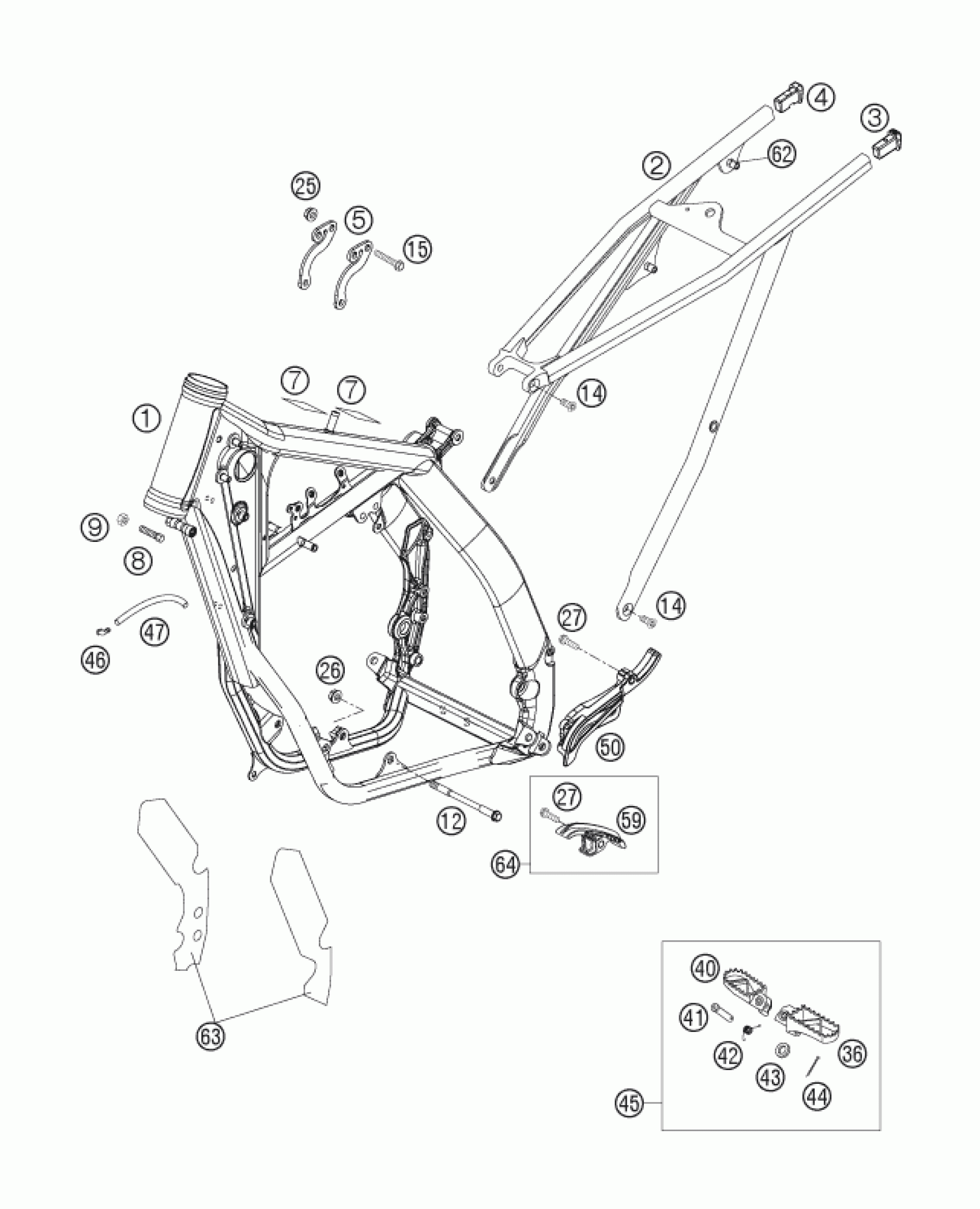

KTM 250 SX 2007 FRAME Diagram
#
Description
Price
1
FRAME 250 SX ''CA07''
5480340100030
Unavailable
2
SUB FRAME SX ''Q7'' 07
77303002000
Unavailable
3
SUB FRAME APPLICATION L/S 07
77303002010
Unavailable
4
SUB FRAME APPLICATION R/S 07
77303002020
Unavailable
5
REINFORCING B. 250 SX 07
54803413000
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
12
engine brac.scr. M10x105 WS13
54603013000
Unavailable
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
Unavailable
25
Self locking nut M8 10.9
54310086200
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH COLLAR SCREW M 8X30 WS=10
0015080303
Unavailable
36
FOOT PEG L/S SILVER 02
59003040250
Unavailable
40
FOOT PEG R/S SILVER 02
59003041250
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTPEG L.+R. CPL. 03
5030314013390
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER 250 SX 07
54803096000
Unavailable
59
Chain sliding piece, bottom
77303053000
Unavailable
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
63
FRAME PROTECTION STICK. SET 07
77303094000
Unavailable
64
CHAIN SLIDING KIT BELOW CPL07
77303053010
Unavailable
