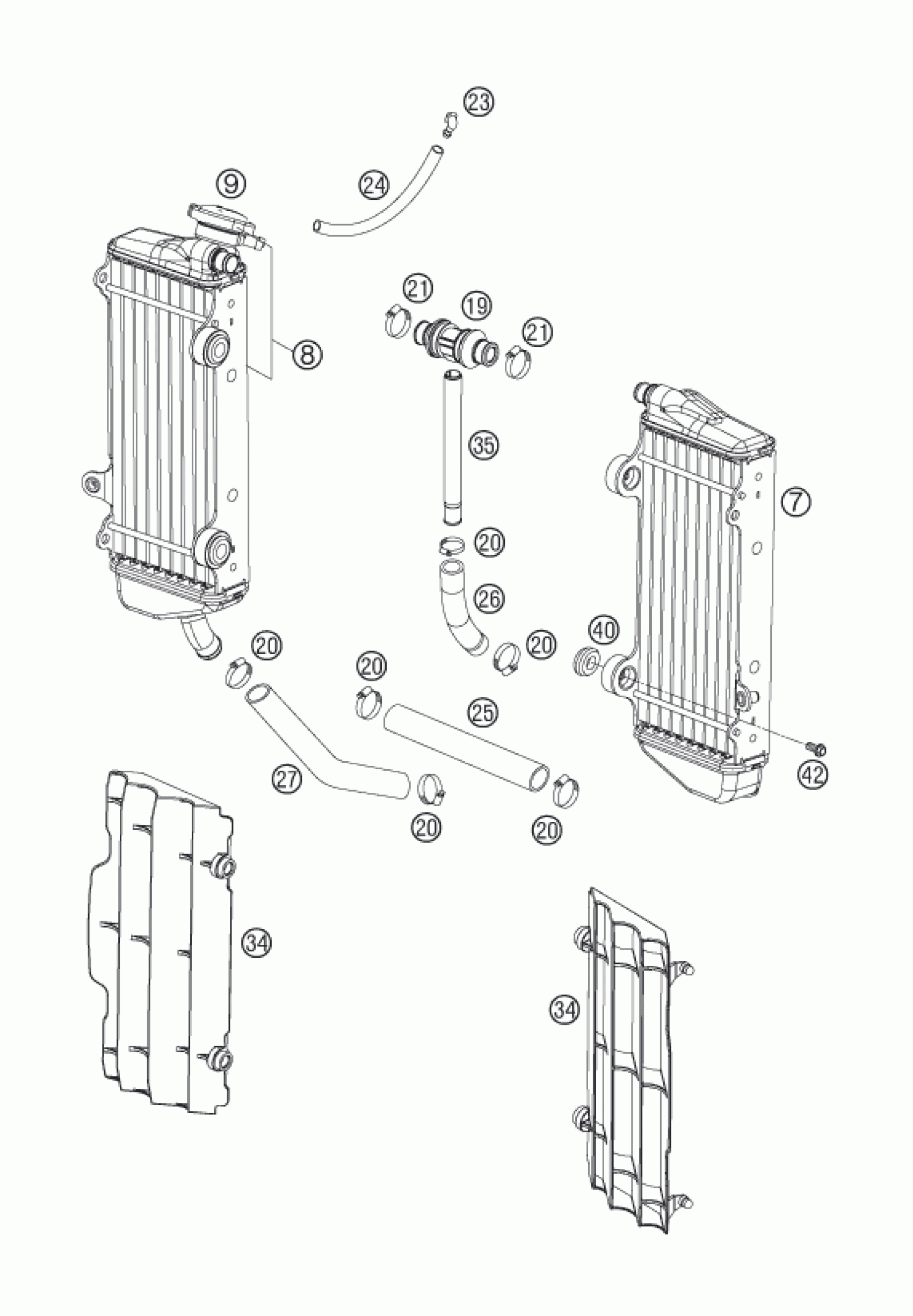

KTM 250 SX 2007 COOLING SYSTEM Diagram

#

Description
Price

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

7

RADIATOR L/S 2 STROKE SX 07

54835007100

Unavailable

8

RADIATOR R/S 2 STROKE SX 07

54835008100

Unavailable

9

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

19

T-CONNECTOR CPL. ´07

77335026000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP GEMI 12/22

42013037200

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

26

PREFORMED HOSE ENG.-RAD. 07

54835125000

Unavailable

27

RADIATOR HOSE 18X25X130 MM 03

54835027000

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR 2 STROKE 07

54835072000

Unavailable

42

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable
