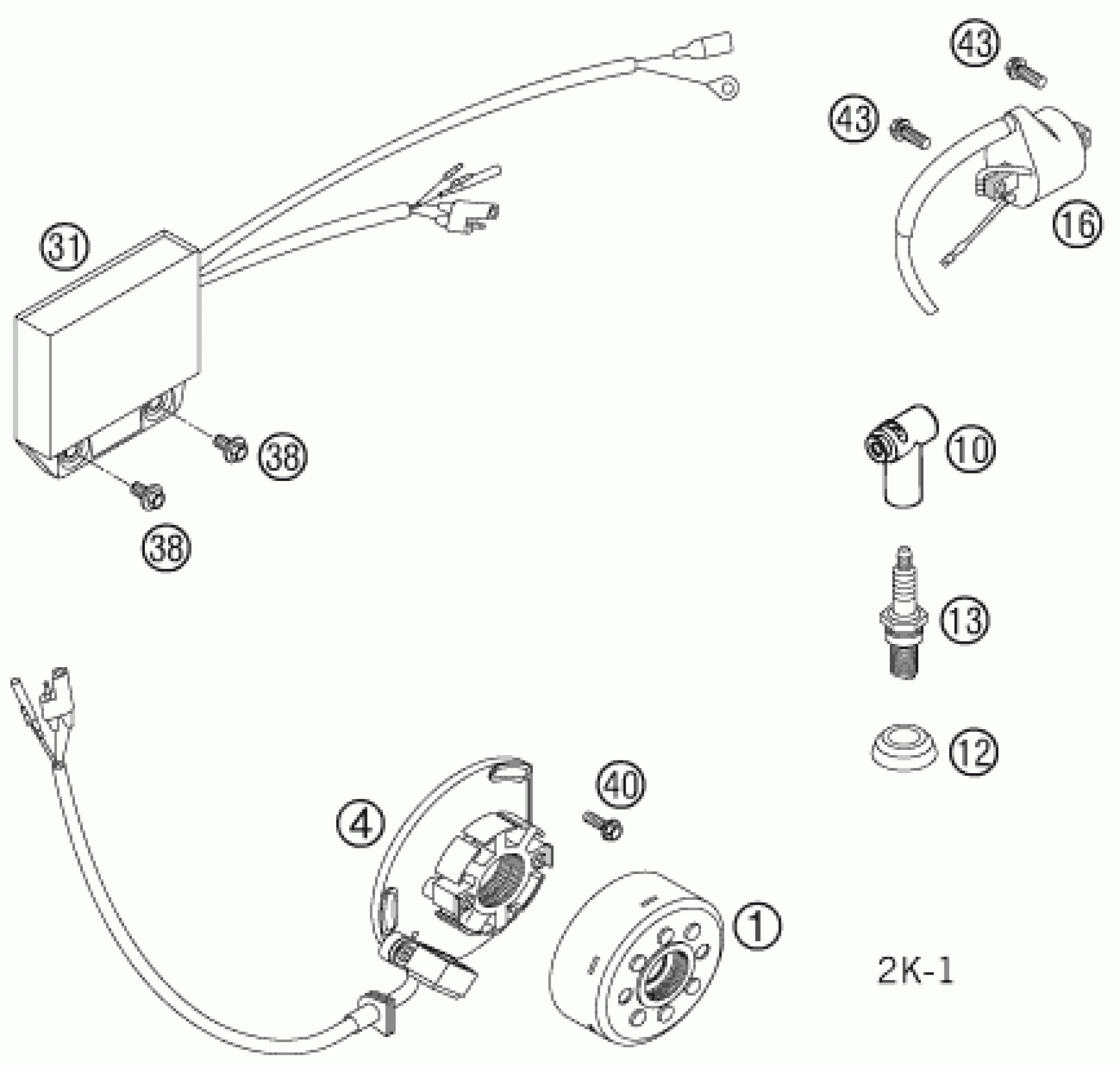

KTM 250 SX 2005 IGNITION SYSTEM Diagram

#

Description

Price

1

FLYWHEEL KOKUSAN 2K-1/2K-4 '97

54739005000

Unavailable

4

STATOR KOKUSAN 2K-1 '98

50339004000

Unavailable

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

12

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

13

SPARK PLUG NGK BR8ECM

54331093410

Unavailable

16

IGNI.COIL KOKU. IG5127

50339006000

Unavailable

31

CDI UNIT 250 SX 04

54839031100

Unavailable

38

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

40

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

43

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable
