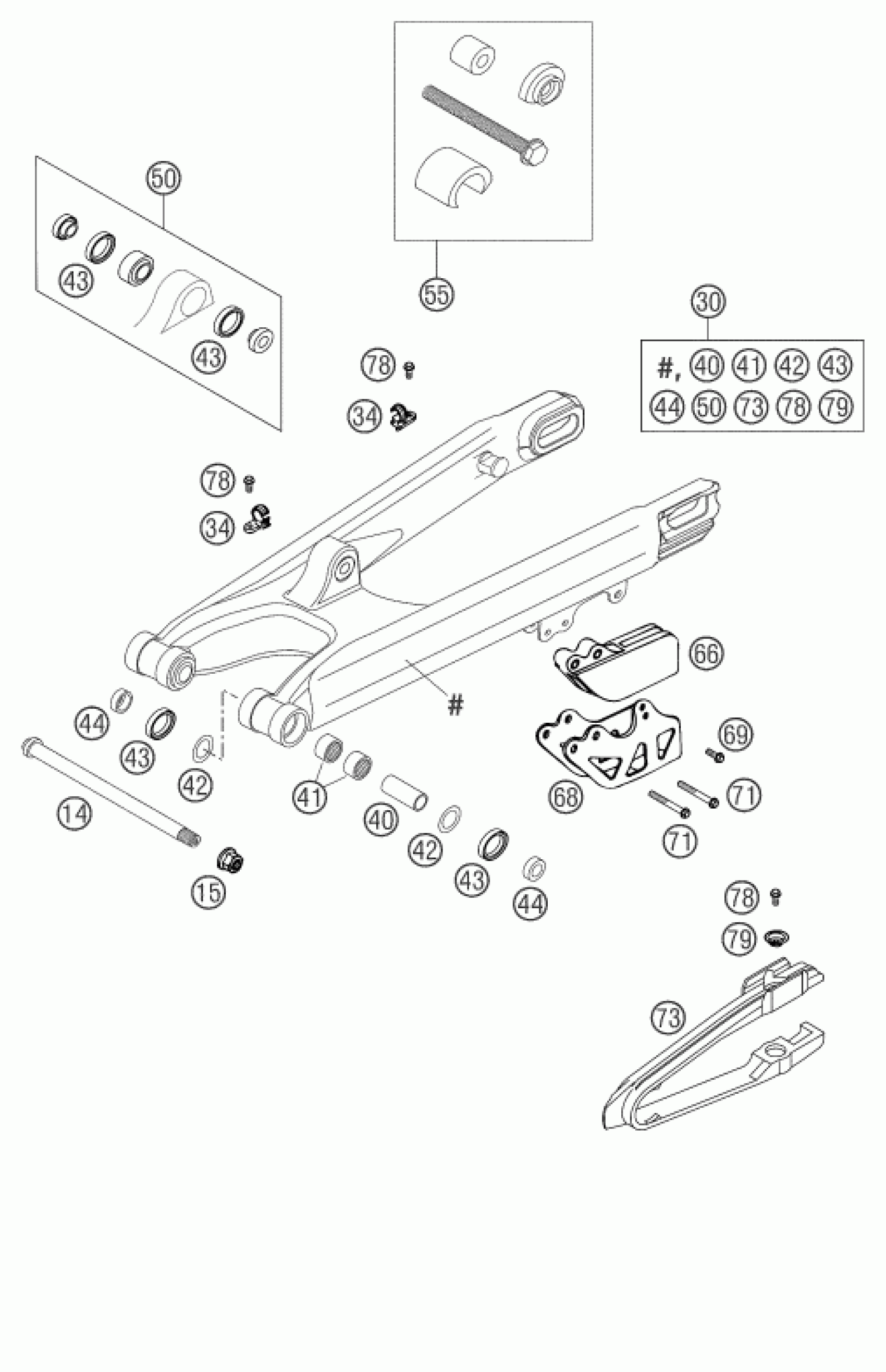

KTM 250 SX 2003 SWING ARM Diagram

#

Description
Price

14

SWINGARM BOLT M16X1,5 03

54804037000

Unavailable

15

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

30

SWINGARM CPL. 2-STROKE ''L4''

54804030044

Unavailable

34

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

40

BUSHING SLEEVE F. SWING ARM 03

54804032000

Unavailable

41

NEEDLE BEARING HK 2216

58033097000

Unavailable

42

STOP DISK 22,2X31,7X1

54603036000

Unavailable

43

radial shaft seal 25x32x7

0760253270

Unavailable

44

Bucket f. shaft seal ring 03

54804034000

Unavailable

50

PIVOT BEARING+BUSH. PDS '99

50304090044

Unavailable

55

TOOL BEARING MOUNTING PDS

50329000044

Unavailable

66

CHAIN GUIDE REAR '94

54607066100

Unavailable

68

RETAINING PLATE CPL.

54607070144

Unavailable

69

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

71

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

73

CHAIN GUARD '97

50304066000

Unavailable

78

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

79

BUCKET

72210079000

Unavailable
