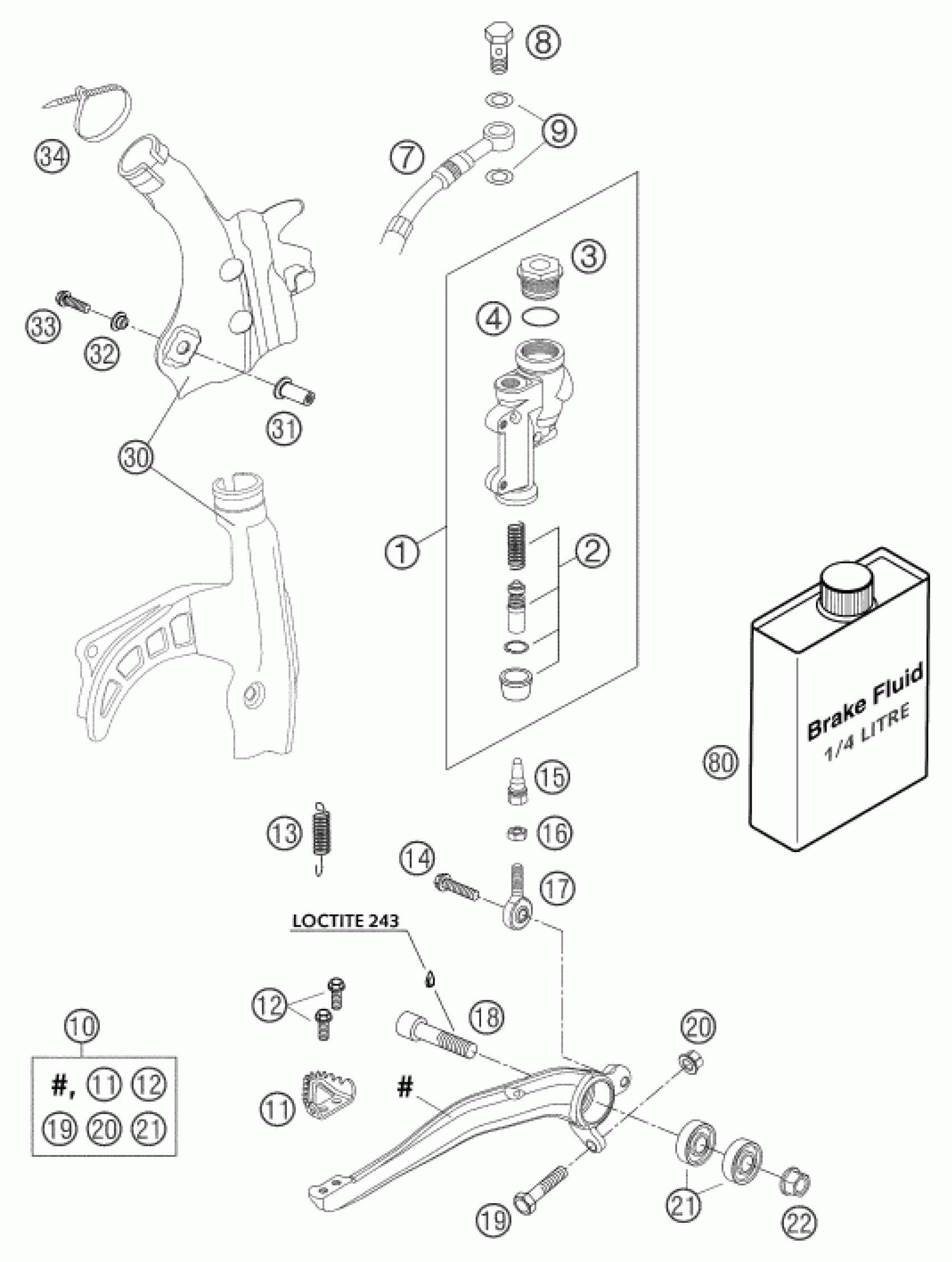

KTM 250 SX 2003 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT-BRAKE CYLINDER SX 2003

54813060000

Unavailable

2

REPAIR KIT PISTON 13MM SX 03

54813061000

Unavailable

3

FOOT-BRAKE CYL. COVER SX 03

54813062000

Unavailable

4

FOOT-BRAKE CYL. GASKET SX 03

54813063000

Unavailable

7

BRAKE HOSE REAR 655MM 03

54813070000

Unavailable

8

banjo bolt M10x1x19 black

54813020100

Unavailable

9

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

10

FOOT BRAKE LEVER CPL. 03

54813050044

Unavailable

11

STEP PLATE FOR BRAKE LEVER

54813051000

Unavailable

12

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

13

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

14

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

15

PUSH ROD L=28MM 03

54813056000

Unavailable

16

Hex. nut DIN 934 M6

0934060003

Unavailable

17

SWIVEL HEAD KA6 03

54813055000

Unavailable

18

AH SCREW DIN6912 M10X40 10.9

0912100406

Unavailable

19

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

20

flanged nut M8 WS10

46030045000

Unavailable

21

deep groove ball bearing SKF 6

0625060002

Unavailable

22

COLLAR NUT M10 WS=13

54630044000

Unavailable

30

FRAME PROTECTION SET 03

54803094000

Unavailable

31

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

Unavailable

32

Bush f. frame protection 03

54803092060

Unavailable

33

HH COLLAR SCREW M 5X25 WS=6

0014050253

Unavailable

34

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
