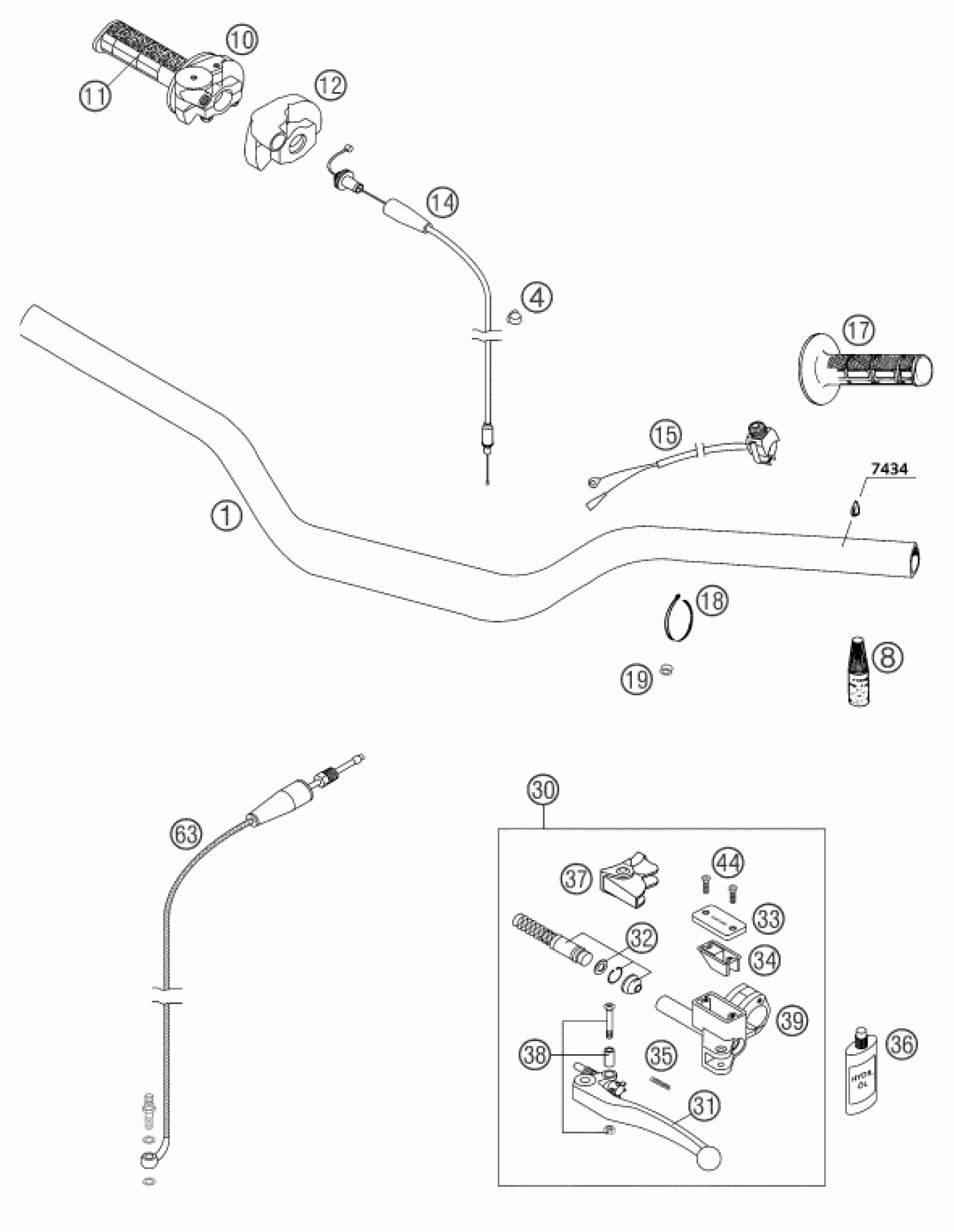

KTM 250 SX 2003 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM LOW 03

54802001000

Unavailable

1

HANDLEBAR 28MM HIGH 2000

59002001000

Unavailable

4

WIRING HOLDER 12MM

57013072000

Unavailable

8

GRIP GLUE

6899792

Unavailable

10

THR.TWIST CRIP CPL. W.O C.'97

50302010000

Unavailable

11

TWIST GRIP COVER DOMINO BLACK

50202003000

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

Unavailable

15

Kill switch

50311089200

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

19

SPACER BUSHING 6X10X5

50301089000

Unavailable

30

MASTER CYLINDER CPL.250/300 03

54602030000

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

32

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

33

COVER HYD.CLUTCH 2T 2000

50302033100

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

63

CLUTCH PIPE 250/300 2003

54732063100

Unavailable
