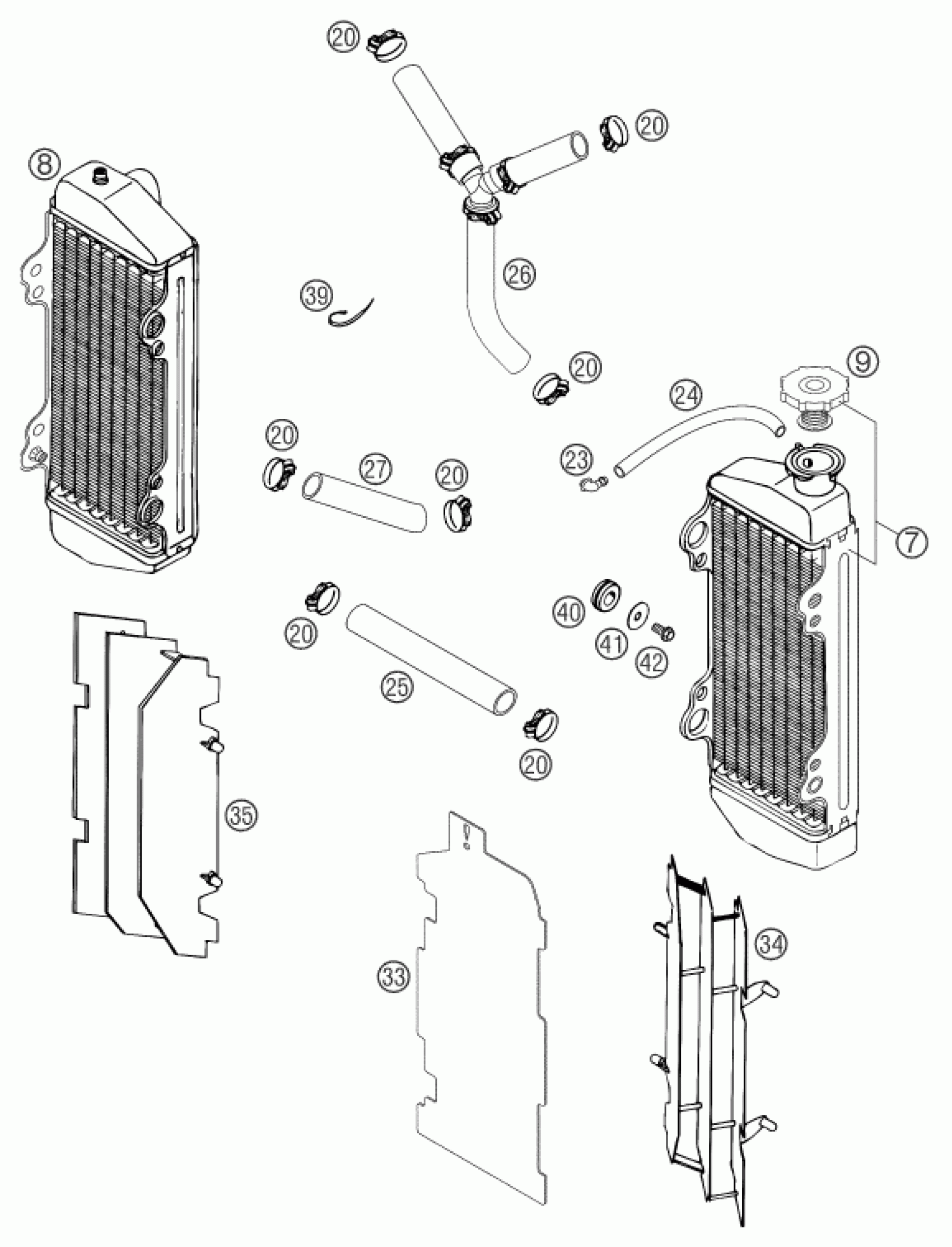

KTM 250 SX 2003 COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S NATURE (45286)98

50335007000

Unavailable

8

RADIATOR R/S NATURE (45285)98

50335008000

Unavailable

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

25

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

26

RADIATOR HOSE INCL. Y-PART 03

54835026000

Unavailable

27

RADIATOR HOSE 18X25X130 MM 03

54835027000

Unavailable

33

COVER FOR RADIATOR L/S BLACK

50335033000

Unavailable

34

RADIATOR PROTECTION LEFT '95

54635034200

Unavailable

35

RADIATOR PROTECT.RIGHT '95

54635134200

Unavailable

39

Cable tie 200/4.6mm black

44011076200

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

Washer DIN9021-A 6.4

0021060003

Unavailable

42

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable
