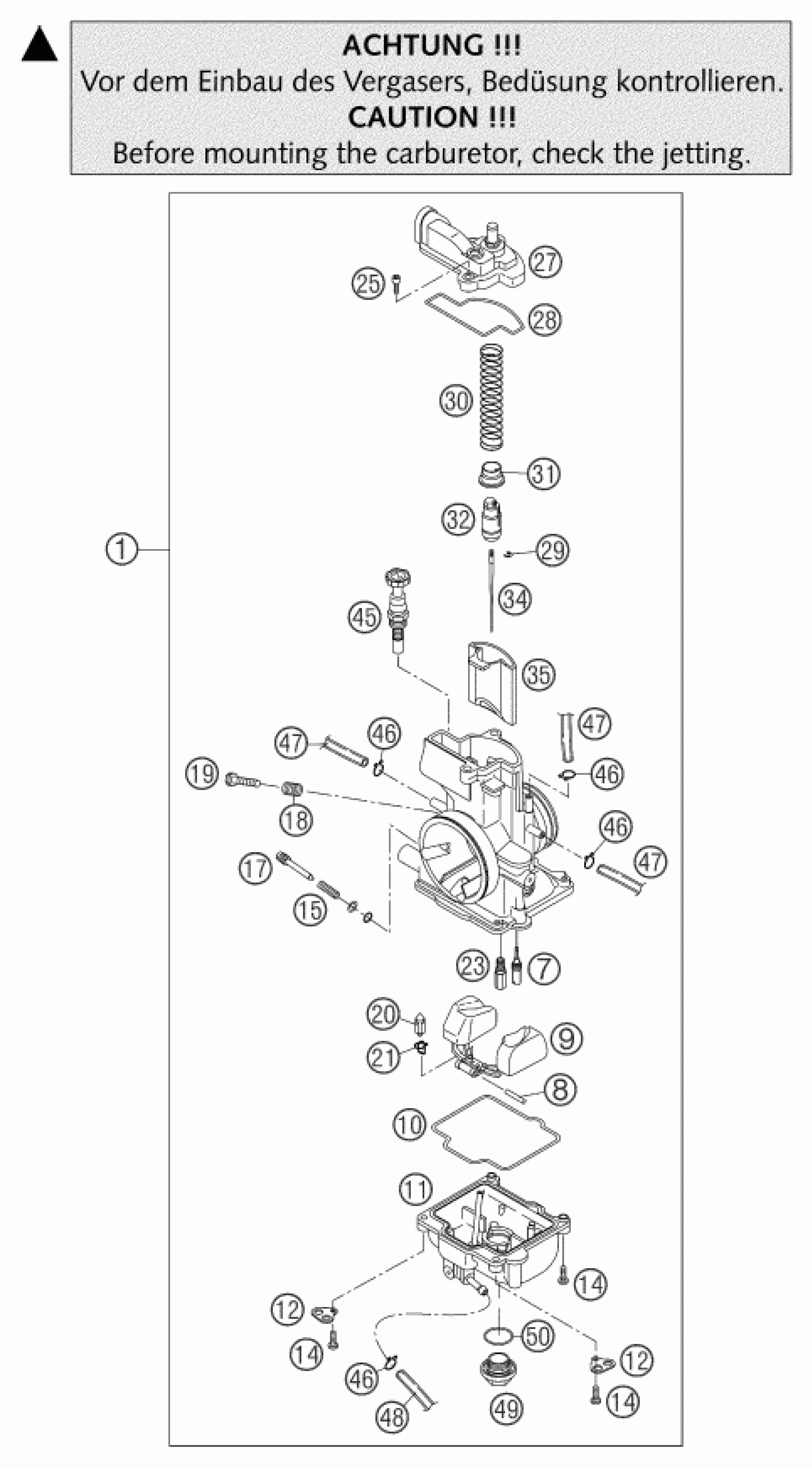

KTM 250 SX 2003 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR PWK38-S AG

54831001044

Unavailable

7

IDLE JET 45 KEIHIN

54531607045

Unavailable

7

IDLE JET 48 KEIHIN

54531607048

Unavailable

7

IDLE JET 50 KEIHIN

54531607050

Unavailable

7

IDLE JET 52 KEIHIN

54531607052

Unavailable

7

IDLE JET 55 KEIHIN

54531607055

Unavailable

7

IDLE JET 58 KEIHIN

54531607058

Unavailable

7

IDLE JET 60 KEIHIN

54531607060

Unavailable

8

ARM PIN FLOAT

57331008000

Unavailable

9

FLOAT CPL.

57331009000

Unavailable

10

GASKET FLOAT CHAMBER

54831010000

Unavailable

11

FLOAT CHAMBER PWK38-S AG

54831011000

Unavailable

12

RETAINING PLATE FOR BLEEDER

54531612100

Unavailable

14

HH COLLAR SCREW M 4X16 WS=6

0016040163

Unavailable

15

SPRING FOR ADJUSTMENT SCREW

54531615000

Unavailable

17

ADJUSTMENT SCREW

54531617000

Unavailable

18

SPRING

54631118000

Unavailable

19

ADJUSTMENT SCREW M 5

54631219100

Unavailable

20

FLOAT NEEDLE

54631220000

Unavailable

21

CLAMP

54531621000

Unavailable

23

MAIN JET 170 KEIHIN

54531623170

Unavailable

23

MAIN JET 172 KEIHIN

54531623172

Unavailable

23

MAIN JET 175 KEIHIN

54531623175

Unavailable

23

MAIN JET 178 KEIHIN

54531623178

Unavailable

23

MAIN JET 180 KEIHIN

54531623180

Unavailable

23

MAIN JET 182 KEIHIN

54531623182

Unavailable

23

MAIN JET 185 KEIHIN

54531623185

Unavailable

25

SPECIAL-AH-SCREW M 4X12

54831025000

Unavailable

27

CARBURETOR COVER PWK38-S AG

54831027000

Unavailable

28

GASKET FOR CARBURETOR COVER

54831028000

Unavailable

29

CLIP FOR JET NEEDLE

54531629000

Unavailable

30

SLIDING SPRING

54831030000

Unavailable

31

SPRING CAP

54631231000

Unavailable

32

NIPPLE

54631232000

Unavailable

34

JET NEEDLE KEIHIN N3CH 03

54731034000

Unavailable

34

JET NEEDLE KEIHIN N3CW 03

54731034100

Unavailable

34

JET NEEDLE KEIHIN N3CG 03

54731034400

Unavailable

35

THROTTLE VALVE 6.5 KEIHIN

54831035065

Unavailable

45

STARTER PISTON CPL.

54631245000

Unavailable

46

Clamp 6mm

54531696000

Unavailable

47

PVC-HOSE 4X6MM

31007007101

Unavailable

48

PVC-HOSE 3X5MM

52031137001

Unavailable

49

PLUG M 18X1

54531699000

Unavailable

50

O-RING 18,00X2,30 NBR 70

0770180230

Unavailable
