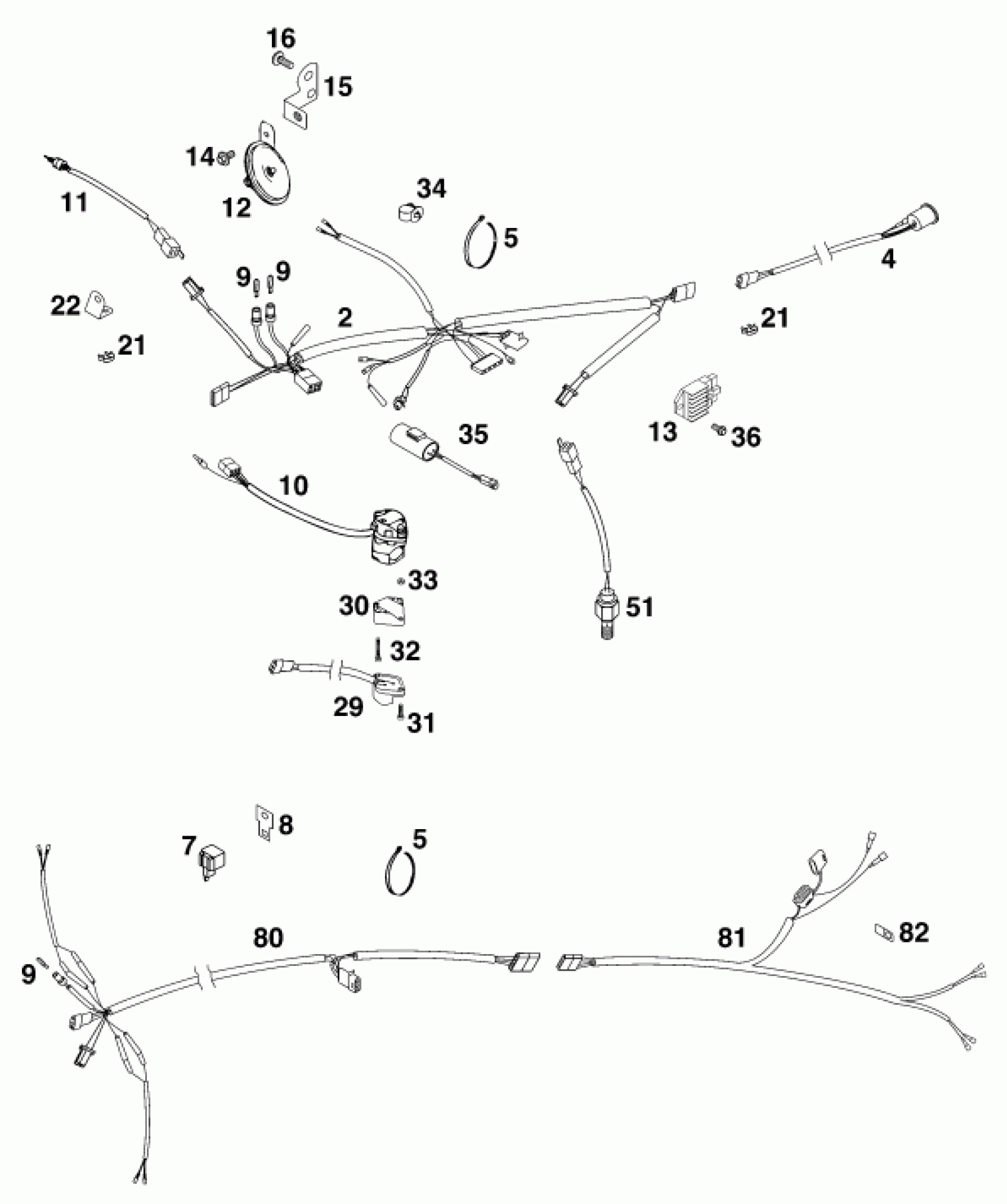

KTM 250 SX 2000 WIRING HARNESS Diagram

#

Description
Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

0

WIRING HOLDER 16MM

57013072100

Unavailable

2

WIRING HARNESS 125-380EXC 2000

50311075600

Unavailable

4

WIRING HARNESS REAR 125-380'98

50311076000

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

7

FLASHER UNIT 97

44611207200

Unavailable

8

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

9

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

Unavailable

10

H.LIGHT SWITCH CEV EGS AUS.'98

50311070100

Unavailable

11

BRAKE LIGHT SWITCH FRONT 2000

50311050000

Unavailable

12

DC HORN 12V NIKKO

54511060100

Unavailable

13

VOLTAGE REGULA. 12V 125-200'98

50311034000

Unavailable

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

15

BRACKET FOR NIKKO HORN 20

50311061000

Unavailable

16

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

21

WIRING HOLDER 12MM

57013072000

Unavailable

22

RETAINING PLATE FOR BATTERY'97

54611090000

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

Unavailable

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

Unavailable

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

33

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

34

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

35

CONDENSATOR 2200MF ADP-48 2000

50311035000

Unavailable

36

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

51

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

80

FLAS.WIRINGHARN. FRONT 125-380

50311080100

Unavailable

81

FLAS.WIRINGHARN. REAR 125-380

50311081000

Unavailable

82

RETAINING PLATE

50031003000

Unavailable
