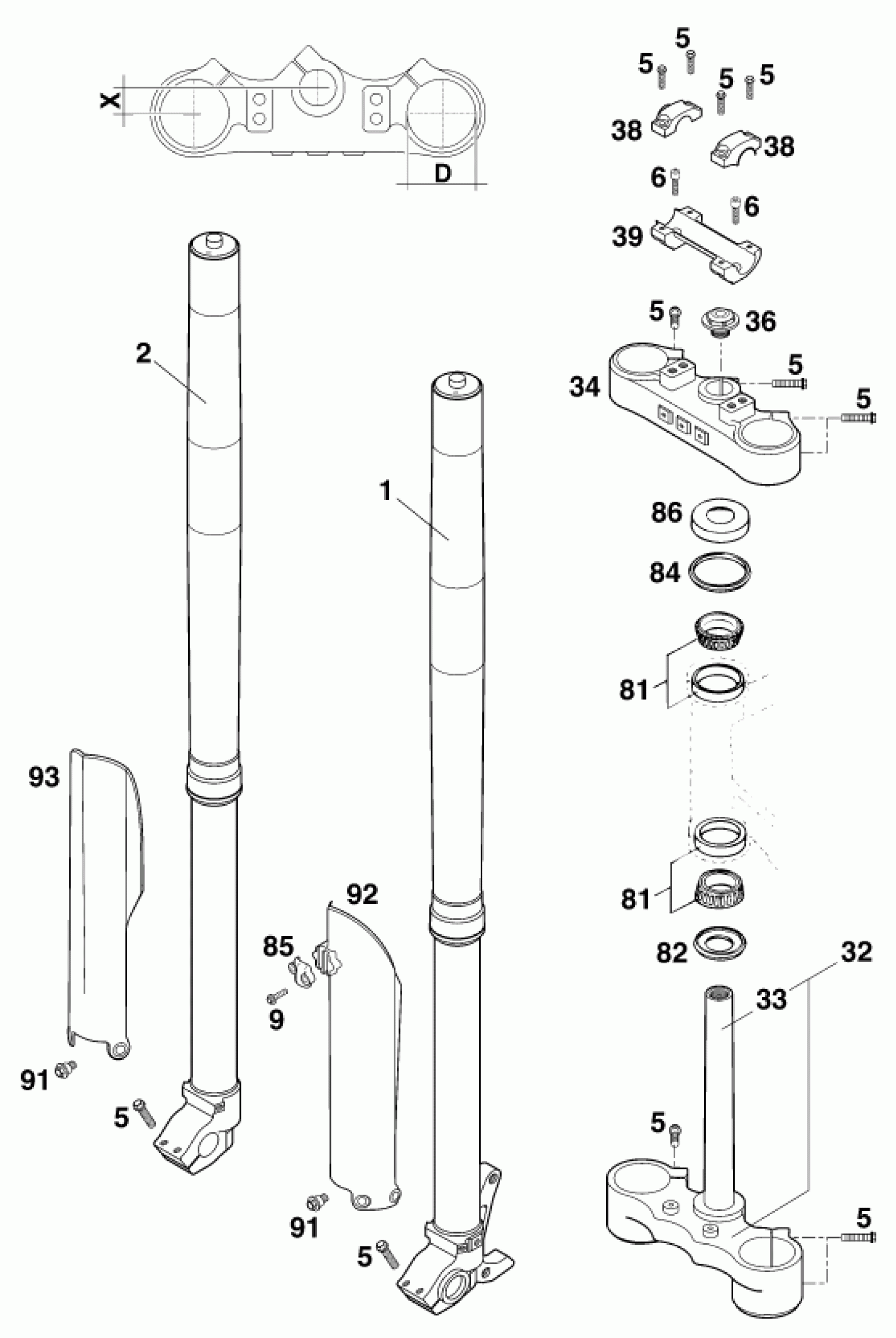

KTM 250 MXC 2000 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S WP 250/380SX 2000

0518U785LS

Unavailable

1

FORK LEG L/S WP43 250-380 2000

0518U787LS

Unavailable

2

FORK LEG R/S WP 250/380SX 2000

0518U785RS

Unavailable

2

FORK LEG R/S WP43 250-380 2000

0518U787RS

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

6

AH SCREW DIN6912-M10X25

0912100258

Unavailable

9

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

32

BOT.TRIP.CL.CPL.X=20MM/D=57M

59001132020

Unavailable

33

FORK TUBE L=244 '91

50101033100

Unavailable

34

TOP TRIPLE CLAMP X=20MM/D=54

59001034020

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

Unavailable

38

HANDLEBAR CLAMP 22MM 2T 20

59001038000

Unavailable

39

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP F. BRAKE HOSE SC '99

59001085000

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

59001092000

Unavailable

93

59001093000
