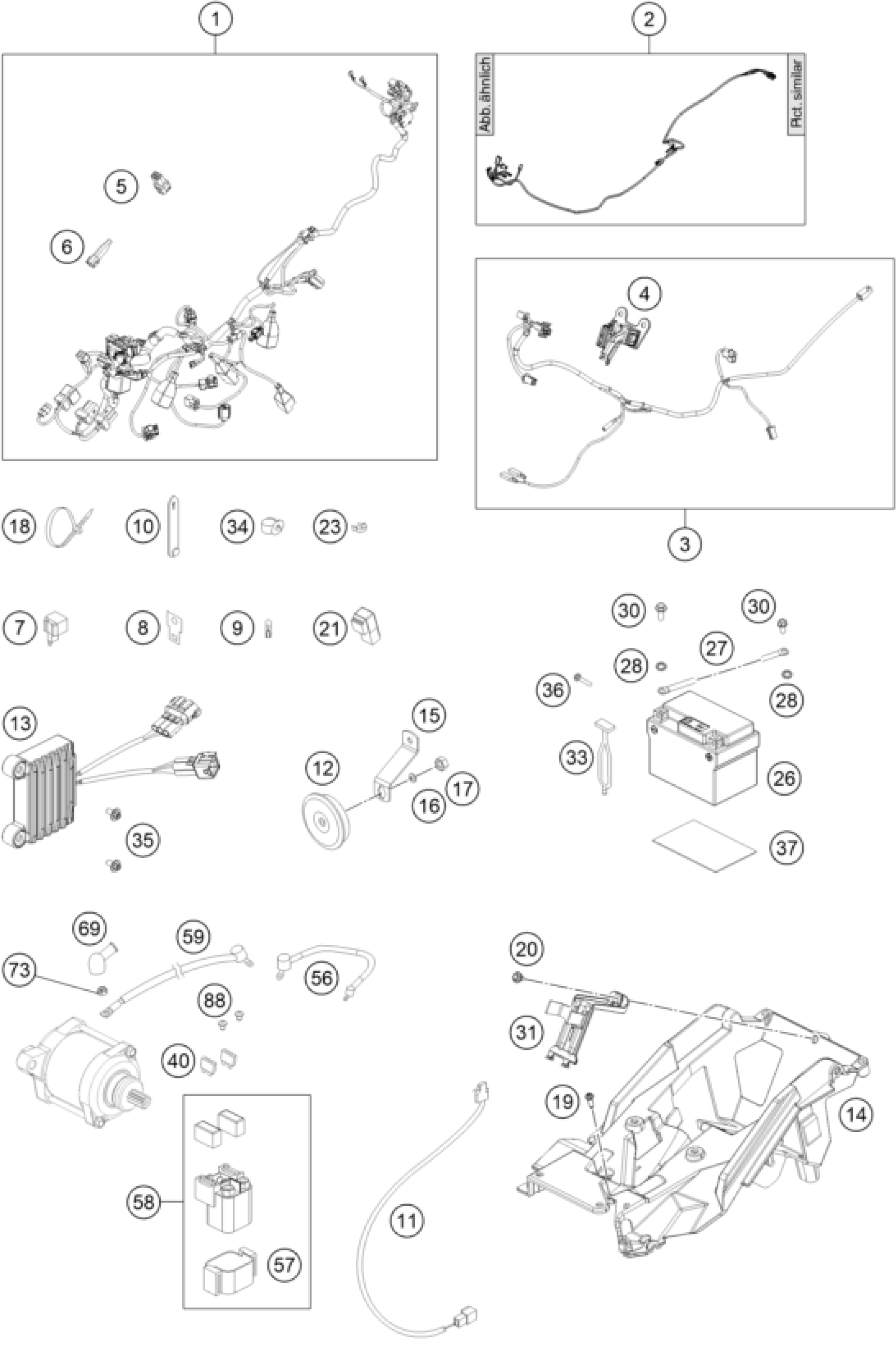

KTM 250 EXC TPI 2018 WIRING HARNESS Diagram

#

Description
Price

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

7

FLASHER UNIT

76511030000

Unavailable

20

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

8

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

9

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

11

BRAKE LIGHT SWITCH FRONT 2014

77711050000

Unavailable

12

DC HORN 12V 07

50311060200

Unavailable

13

VOLTAGE REGULATOR

79611034000

Unavailable

14

Battery box

55411055000

Unavailable

15

HORN BRACKET EXC 08

78011061000

Unavailable

16

WASHER DIN0125-A 5,3

0125050003

Unavailable

17

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

Unavailable

26

LITHIUM ION BATTERY 5S

77311953000

Unavailable

27

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

28

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

30

HH collar screw M5x12 TX30

0025050126

Unavailable

31

BATTERY BOX SUPPORT

79011056100

Unavailable

33

RUBBER L=145MM

50303018000

Unavailable

34

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

35

COLLAR SCREW M6X12 TX

0023060123

Unavailable

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

37

METAMOLL 90X45X3MM 03

59003001099

Unavailable

40

Plug-in fuse, big 20A

58011109120

Unavailable

56

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

58

Starter reley 12V 99

58211058000

Unavailable

59

STARTERCABLE 1100MM 07

55111059000

Unavailable

69

Protection cap for starter eng

77240099000

Unavailable

73

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

88

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

19

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

1

Main harness

55611075000

Unavailable

2

TURN SIGNAL WIRING HARNESS

77711081100

Unavailable

3

WIRING HARNESS LIGHT CPL. EU

77711079000

Unavailable

4

SUPPORT BRACKET

77711083000

Unavailable

5

DUMMY PLUG 6-PIN

000700000BH01

Unavailable

6

END PLUG CAN-BUS 08

69011040000

Unavailable

10

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

21

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

57

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable
