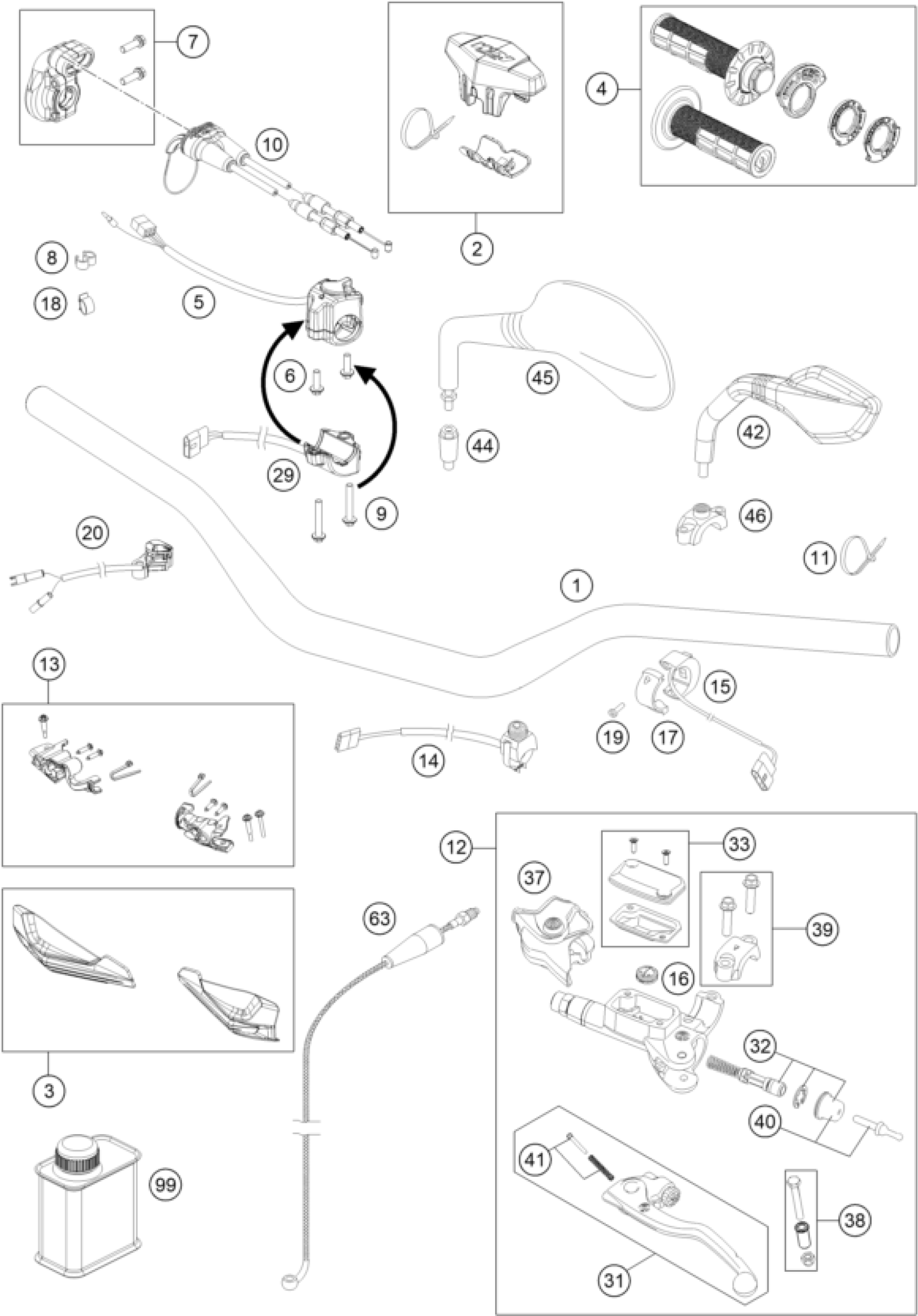

KTM 250 EXC Six Days TPI 2019 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM SX/EXC BLACK

5480200130030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

Handguard r/s l/s white

7960218204428

Unavailable

4

GRIP SET

79002021100

Unavailable

5

LIGHT SWITCH

78111070000

Unavailable

6

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

7

THROTTLE CONTROL CASING CPL.

79002010025

Unavailable

8

CLIP 5/7 MM 06

60111094000

Unavailable

9

HH COLLAR SCREW M5X30 SW=6

0014050303

Unavailable

10

Accelerator cable cpl.

55402091000

Unavailable

11

Cable tie 200/4.6mm black

44011076200

Unavailable

12

MASTER CYLINDER CPL.

54802030144

Unavailable

13

Handguard assembly kit

79602084044

Unavailable

14

STARTER BUTTON GREY 13

78111074000

Unavailable

15

ENGINE STOP SWITCH CEV

50311074000

Unavailable

16

VALVE

54802051000

Unavailable

17

CLAMP ENGINE STOP SWITCH

50311074050

Unavailable

18

WIRING HOLDER 16MM

57013072100

Unavailable

19

AH SCREW DIN 912-M 4X20

0912040203

Unavailable

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

CLAMP CPL. 06

54802005100

Unavailable

40

Push rod cmpl.

54802046000

Unavailable

41

BOLT KPL.

54802052000

Unavailable

29

FLASHER SWITCH

78111029000

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

44

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

45

MIRROR L/S 98

58412040000

Unavailable

45

MIRROR R/S 98

58412041000

Unavailable

46

Clamp for mirror

58012040150

Unavailable

63

CLUTCH PIPE

79232063000

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

20

MAP SWITCH

51539974100

Unavailable
