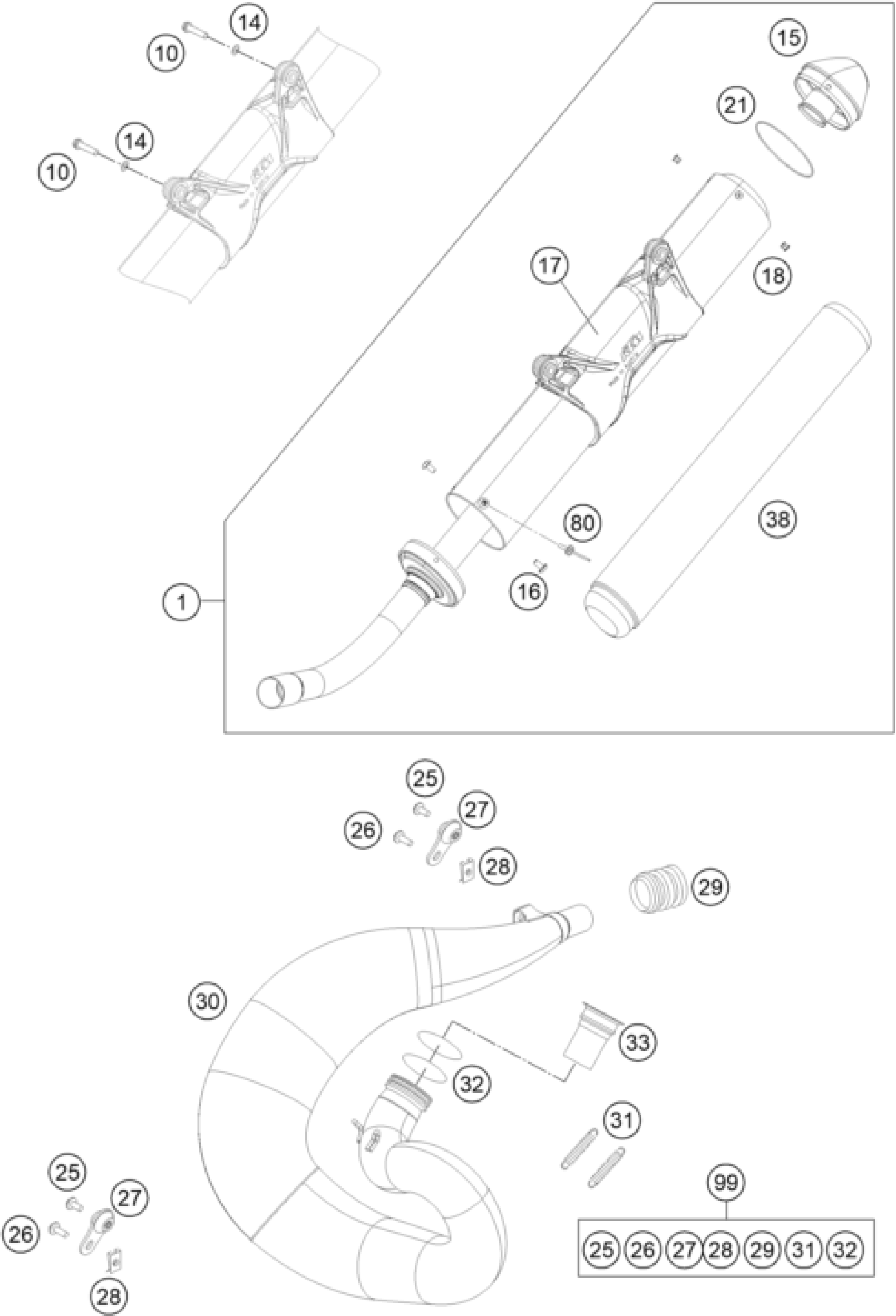

KTM 250 EXC SIX-DAYS 2011 EXHAUST SYSTEM Diagram

#

Description
Price

1

MAIN SILENCER 250-300 EXC

54805083200

Unavailable

10

HH collar screw M6x30 TX30

0025060306

Unavailable

15

ENDCAP CPL.

54805083260

Unavailable

16

SCREW TORX M5X10 05

58605083010

Unavailable

17

SILENCER HOUS. CPL. W. HANGING

54805183085

Unavailable

18

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

21

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

25

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

26

HH collar screw M6x15 TX30

0024060156

Unavailable

27

Silent block for exhaust pipe

50305012000

Unavailable

28

clip nut M6

54603048100

Unavailable

29

SILICON SLEEVE D=29/31MM

50205057000

Unavailable

30

EXHAUST MANIFOLD

54805009300

Unavailable

30

EXHAUST MANIFOLD

54805107000

Unavailable

31

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

32

O-RING 44,00X3,00 VITON

0770440030

Unavailable

33

CATALYST + BRACKET FRONT 08

54805009180

Unavailable

38

ROCKWOOL 315G

54805078315

Unavailable

14

spring washer DIN 137 B - 6

0137060003

Unavailable

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable

80

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable
