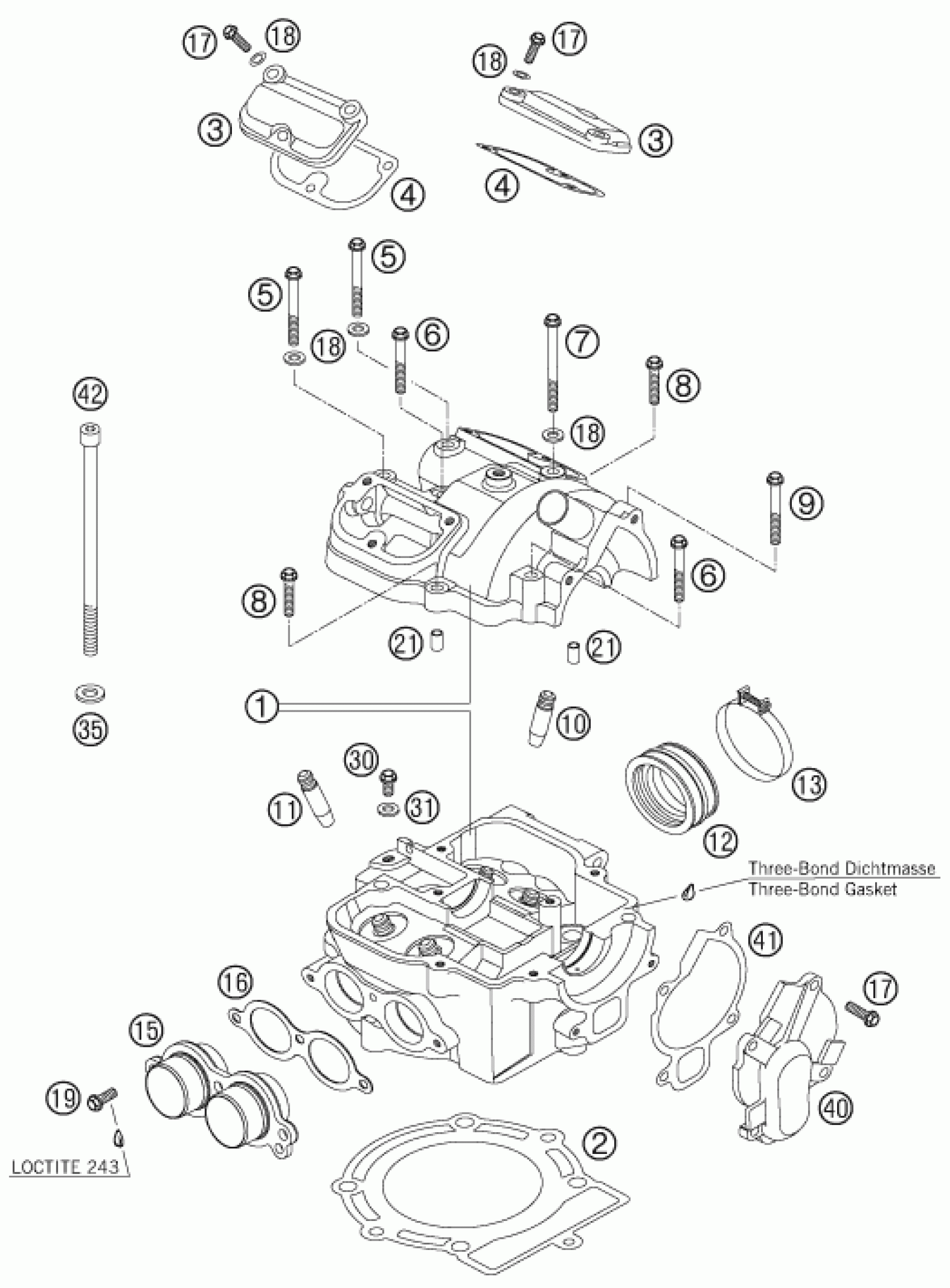

KTM 250 EXC RACING 2006 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL. 250 4-ST 03

59836020144

Unavailable

2

CYLINDER HEAD GASKET D=75 02

59830036000

Unavailable

3

VALVE COVER REAR

58036052200

Unavailable

4

VALVE COVER GASKET

58036053000

Unavailable

5

HH COLLAR SCR. M6X55 WS=8 10.9

0015060556

Unavailable

6

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

7

HH COLLAR SCREW M 6X75 WS=8

0015060753

Unavailable

8

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

9

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

10

VALVE GUIDE INTAKE

59036025101

Unavailable

11

VALVE GUIDE EXHAUST

59036026101

Unavailable

12

INTAKE BOOT 06

77036044000

Unavailable

13

CLAMP D=56MM B=9MM M4X25

59030061000

Unavailable

15

EXHAUST FLANGE CPL.250 4T 2004

59836039200

Unavailable

16

GASKET EXHAUST FLANGE

59036041000

Unavailable

17

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

18

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

19

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

21

dowel sleeve 6x8x11.5

59030023000

Unavailable

30

VENT SCREW M6X10 CPL.

59036006090

Unavailable

31

CU-SEAL RING 6 X 10 X 2

58036065100

Unavailable

35

WASHER 10,8X18,8X1,5

59036090000

Unavailable

40

WATER PUMP COVER RACING 2000

59035052000

Unavailable

41

WATER PUMP COVER GASKET 0,8MM

59035053000

Unavailable

42

AH SCREW DIN 912 M10X150 10.9

0912101503

Unavailable
