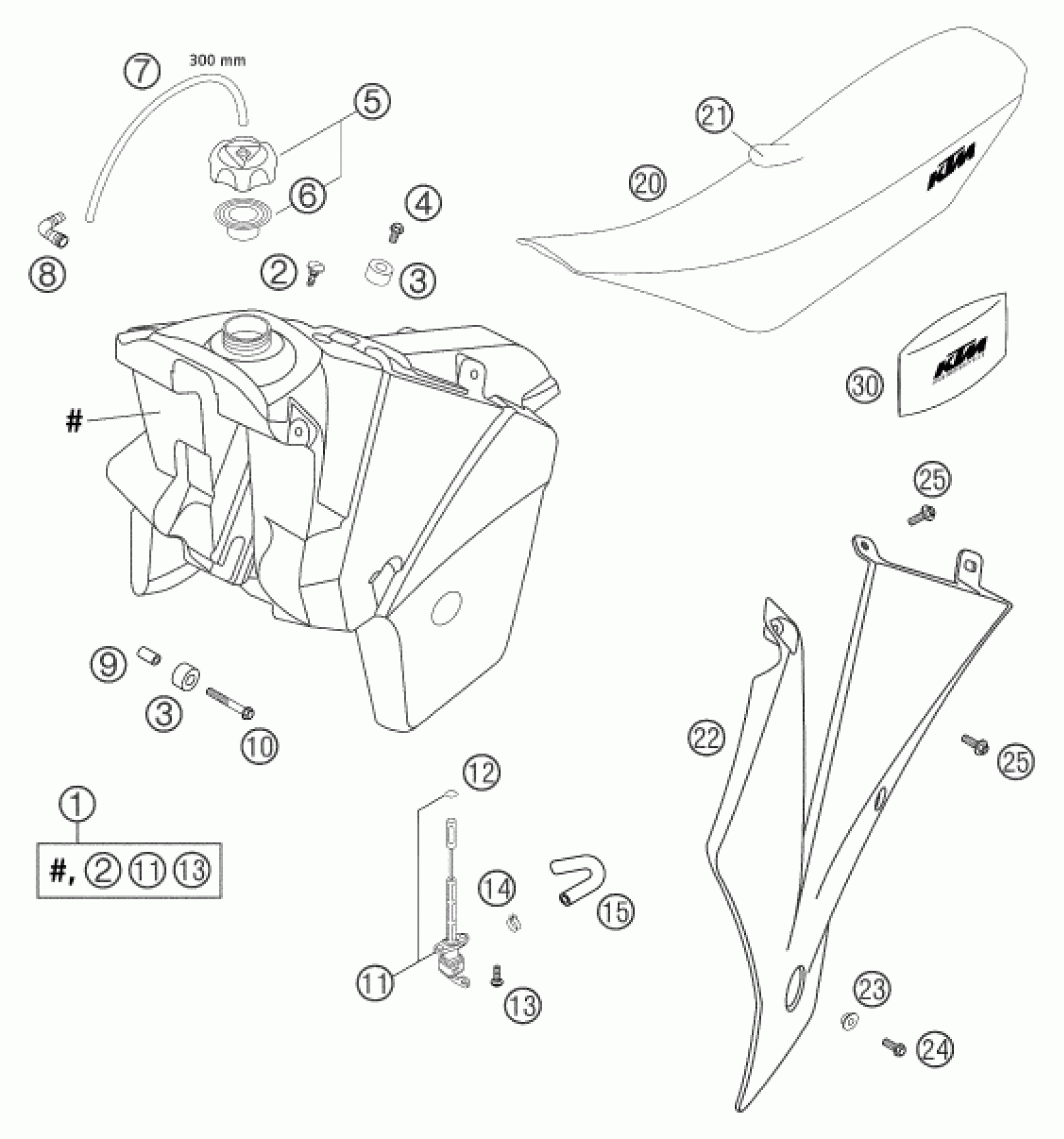

KTM 250 EXC RACING 2004 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. RACING 8,0L 03

5900701350044

Unavailable

2

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

3

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

4

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

5

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

6

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

9

SUPORT BUSHING TANKROLLER

59003001055

Unavailable

10

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

11

GAS COCK ON/OFF/RES 03

54807004000

Unavailable

12

O-RING 11X2 VITON

0770110021

Unavailable

13

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

14

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

15

FUEL HOSE 7,5X13MM

59007016000

Unavailable

20

SEAT BLACK WITH KTM-LOGO 03

54807040000

Unavailable

20

% SEAT HIGH

54807040100

Unavailable

21

SEAT COVER BLACK 03

54807040050

Unavailable

22

SPOILER L/S ORANGE SX 2001

5030815000004

Unavailable

22

SPOILER R/S ORANGE SX 2001

5030815100004

Unavailable

23

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

24

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

25

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

30

ORIGINAL EQUIPMENT TOOL KIT

59029099000

Unavailable
