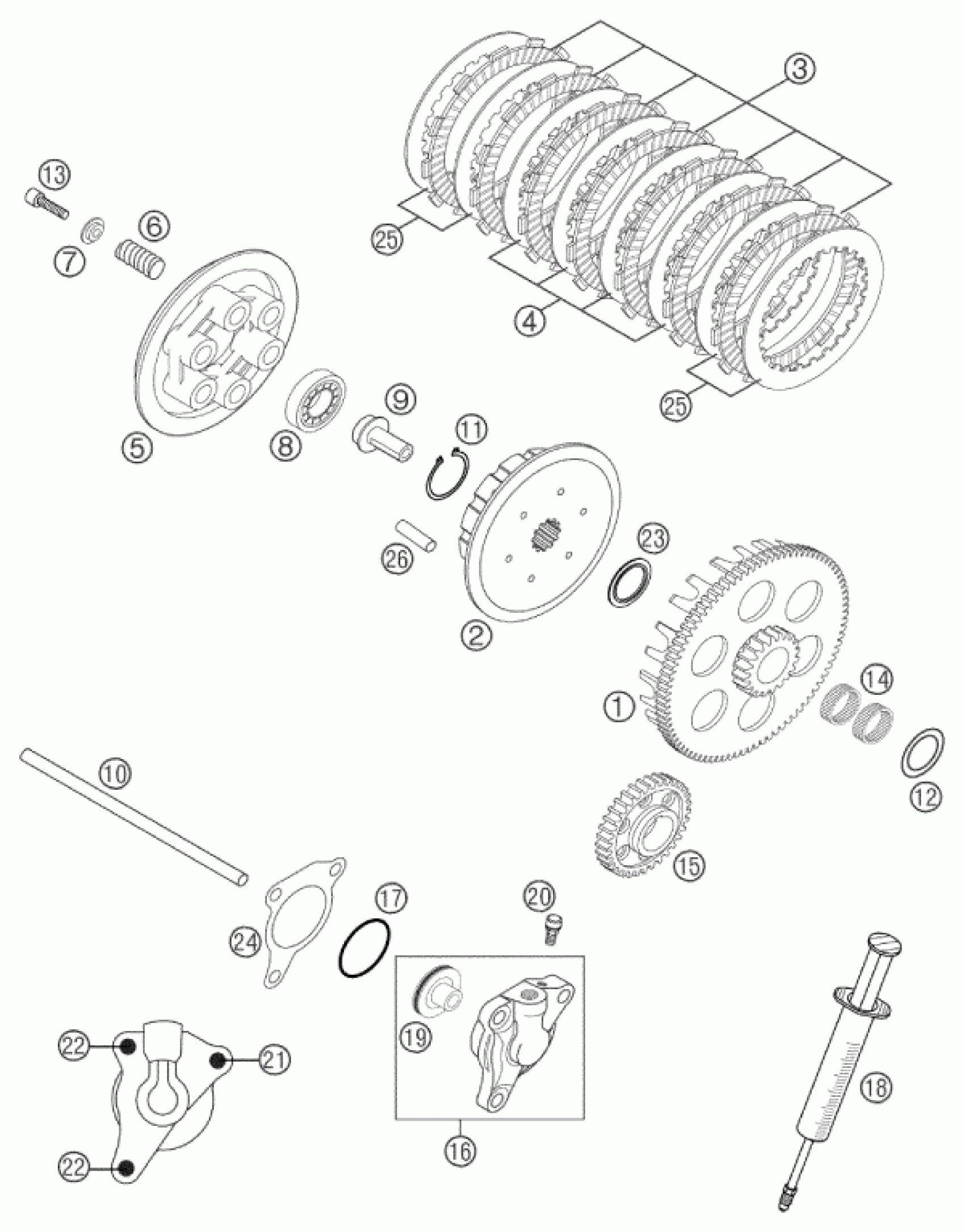

KTM 250 EXC RACING 2002 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH H. 76-T/20-T 2001

59032000276

Unavailable

2

INNER CLUTCH HUB RACING 2002

59032002100

Unavailable

3

LINING DISK 1,8MM

59032011000

Unavailable

4

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

5

PRESSURE CAP

59032003000

Unavailable

6

CLUTCH SPRING 2,5X43MM

59032005000

Unavailable

7

SPRING RETAINER 6,2X12X18X3,6

59032006000

Unavailable

8

GROOVED BALL BEAR. TM 16004 C3

0625160040

Unavailable

9

PRESSURE BOLT 02

59032055100

Unavailable

10

PUSH ROD 7X188MM

59032054000

Unavailable

11

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

12

SUPPORTWASHER 25X35X1

59032017000

Unavailable

13

AH SCREW DIN6912 M6X25

0984060252

Unavailable

14

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

15

PRIMARY GEAR 33-T

59032000033

Unavailable

16

CYLINDER CPL. 250-380 '99

54732061044

Unavailable

17

O-ring 30x1.5 NBR 70

0770300015

Unavailable

18

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

19

PISTON W. O-RING 250-380 '00

54632066000

Unavailable

20

BLEEDER SCREW WITH CAP

54732064000

Unavailable

21

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

23

WASHER

59032014000

Unavailable

24

GASKET FOR SLAVE CYLINDER

59032065000

Unavailable

25

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

26

DRIVING SLEEVE D=8,L=31 2002

59032004000

Unavailable
