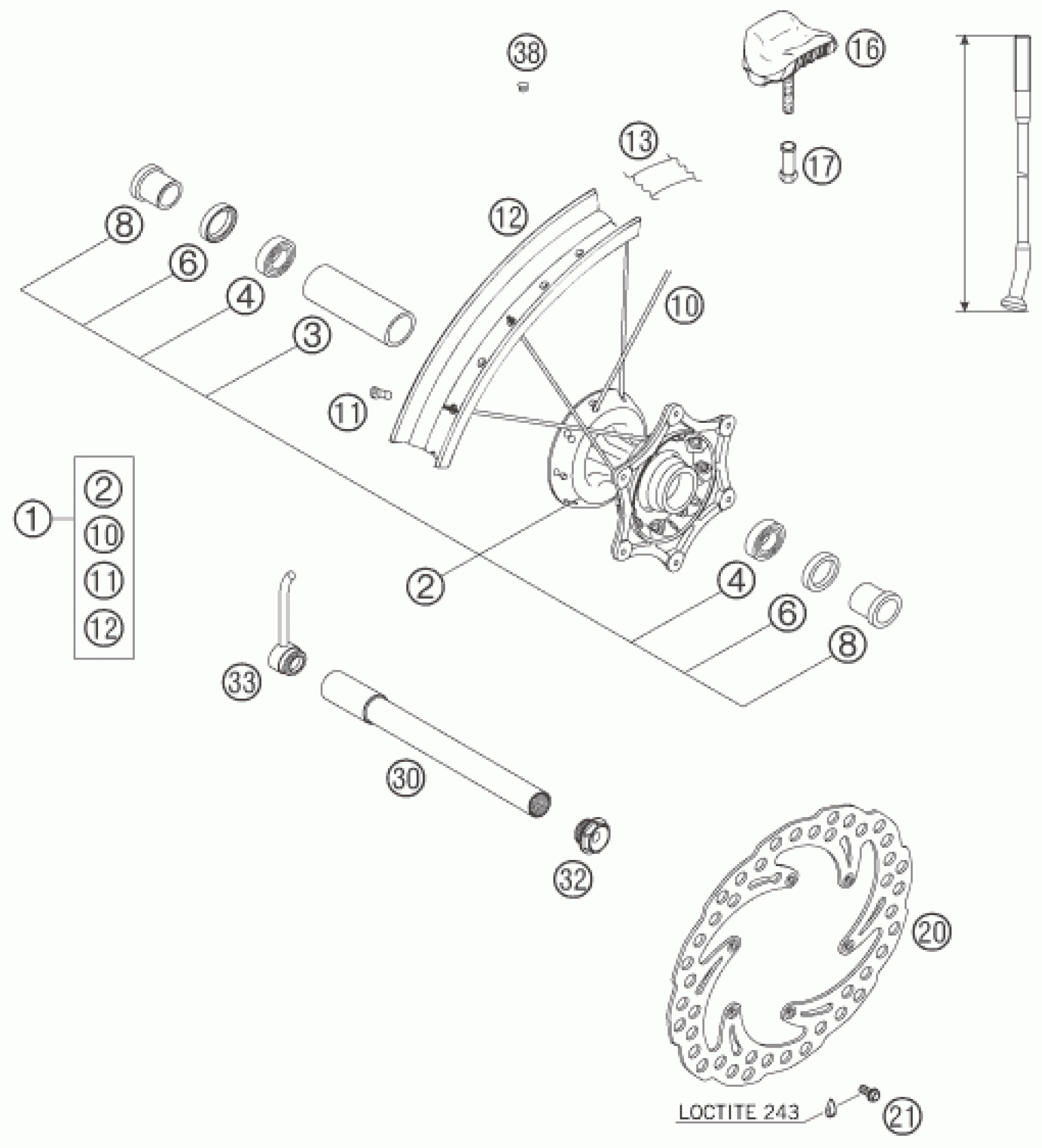

KTM 250 EXC FACTORY 2005 FRONT WHEEL Diagram

#

Description
Price

1

FR.WHEEL CPL.1,6X21''EXCEL F.C

5480900154430

Unavailable

2

FRONT HUB CPL. GOLD 03

5480901004496

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING F. FR. WHEEL

54809012000

Unavailable

10

SPOKE M4,5X228-15G 21'' DDE

50309072228

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

13

Tube protector 21"

50309073000

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

12

FRONT RIM 1,6X21'' EXCEL AL7

5480907000030

Unavailable

20

BRAKE DISC FRONT D=260MM 03

54809060100

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

30

WH SPIN.FR. D=26 M24X1,5 03

54809081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

33

FRONT AXLE PULL 26MM 04

54809081060

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable
