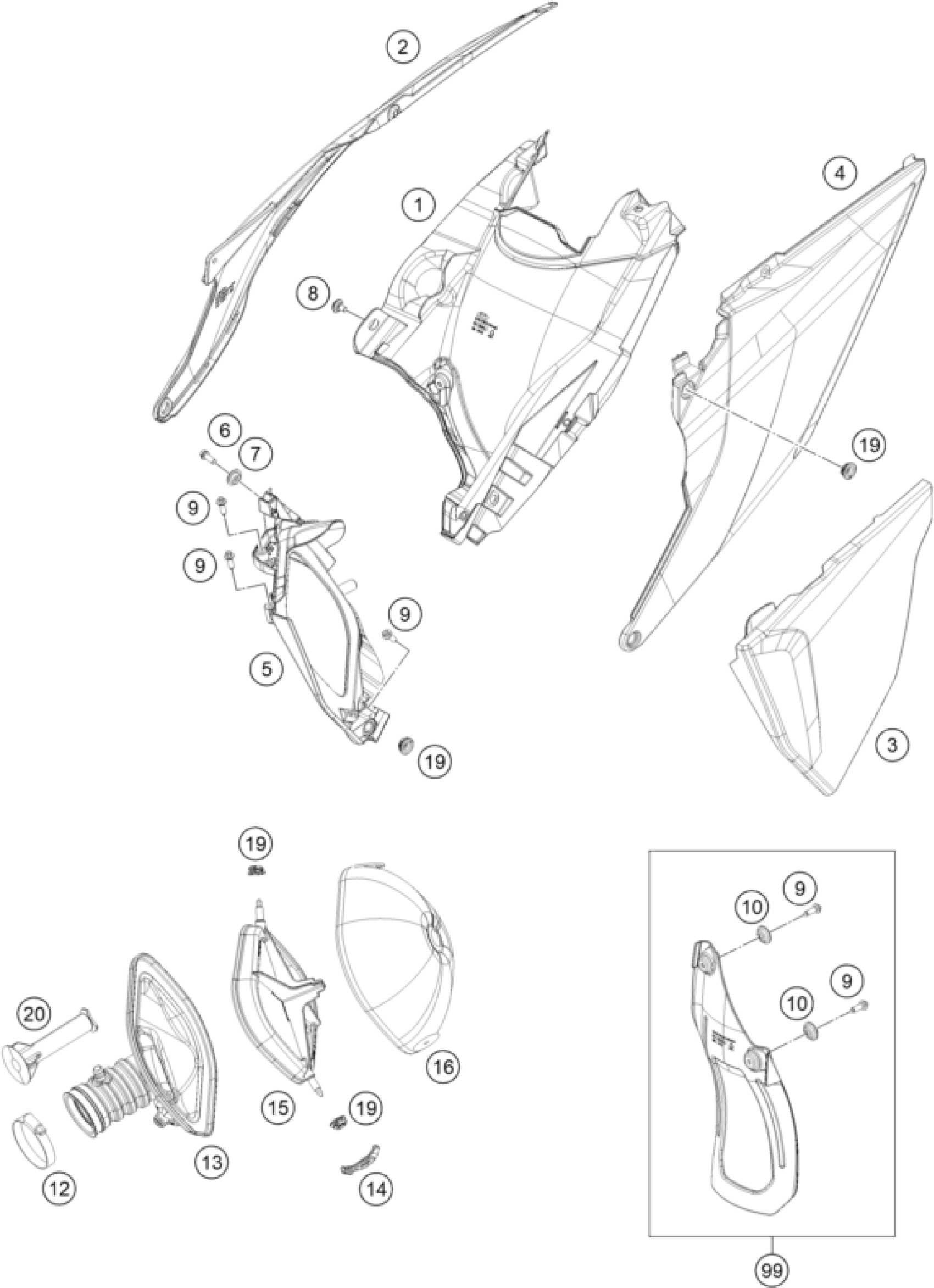

KTM 250 EXC-F SIX DAYS 2021 AIR FILTER Diagram

#

Description
Price

1

Air filter box

79106001000AB

Unavailable

2

Filter box cover, right

79106104000ABF

Unavailable

3

Air filter box cover, left

79106103000ABF

Unavailable

4

Filter box cover, left

79106105000ABF

Unavailable

5

Air filter box front part

79106001010AB

Unavailable

6

HH collar screw M6x16 TX30

0025060166

Unavailable

7

COLLAR BUSH. F.REAR FENDER 07

77308013010

Unavailable

8

SPECIAL SCREW M6X15X3

83008000015

Unavailable

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

10

chain slider bushing

77304066050

Unavailable

12

HOSE CLAMP 45-65MM

78006027000

Unavailable

13

INTAKE BELLOWS

79206026000

Unavailable

14

FILTER MOUNTING BRACKET

79006017000

Unavailable

15

AIR FILTER SUPPORT

79006016000

Unavailable

16

AIR FILTER

79006015000

Unavailable

19

quick release rubber grommet

47106003160

Unavailable

20

INTAKE THROTTLE D=16

79406012050

Unavailable

99

SPLASH PROTECTOR KIT

79006010010

Unavailable
