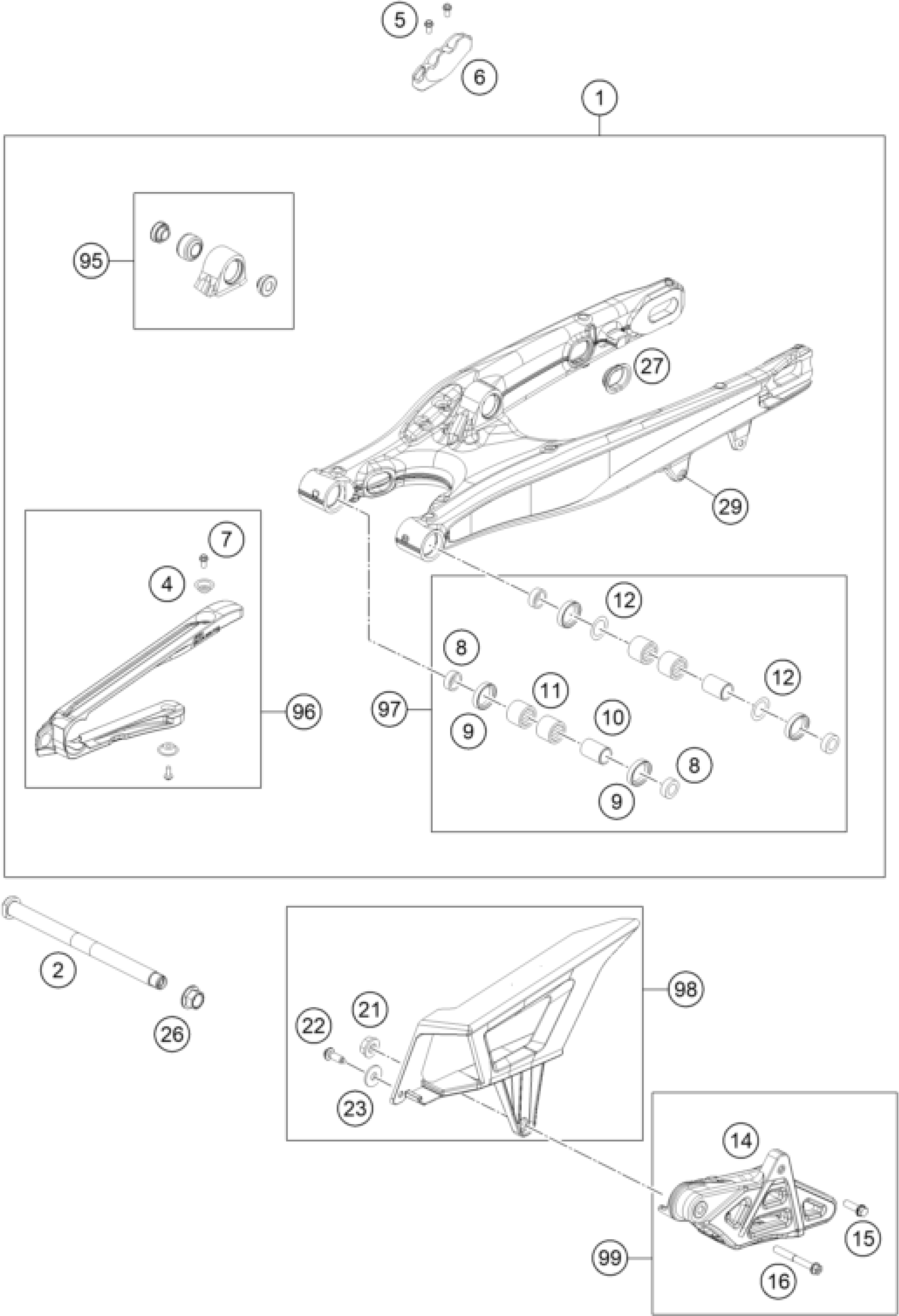

KTM 250 EXC-F SIX DAYS 2017 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. PDS 2017

79604030044

Unavailable

2

SWING ARM M16X1,5 2016

79004037000

Unavailable

4

chain slider bushing

77304066050

Unavailable

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

6

BRAKE HOSE GUIDE LOWER 07

77313047000

Unavailable

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

8

Support f. shaft seal ring 16

77704034000

Unavailable

9

radial shaft seal 25x32x7

0760253270

Unavailable

10

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

11

Needle bushing HK2212V 22/28/1

0618222812

Unavailable

12

STOP DISK 22,2X31,7X1

54603036000

Unavailable

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

16

HH collar screw M6x50 TX30

0025060506

Unavailable

21

Self locking nut M6 - 10

56509064100

Unavailable

22

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

23

Washer DIN9021-A 6.4

0021060003

Unavailable

26

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

27

Locking cap swingarm

77204041000

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

Unavailable

95

PIVOT BEARING+BUSH. PDS '17

79604090044

Unavailable

96

CHAIN SLIDING GUARD KIT 11-15

51504066044

Unavailable

97

SWINGARM REPAIR KIT SX-F/XC-F

78904230010

Unavailable

98

CHAIN PROTECTION KIT EXC 12-14

78104060010

Unavailable

14

CHAIN GUIDE EXC ORANGE

7810407010004

Unavailable
