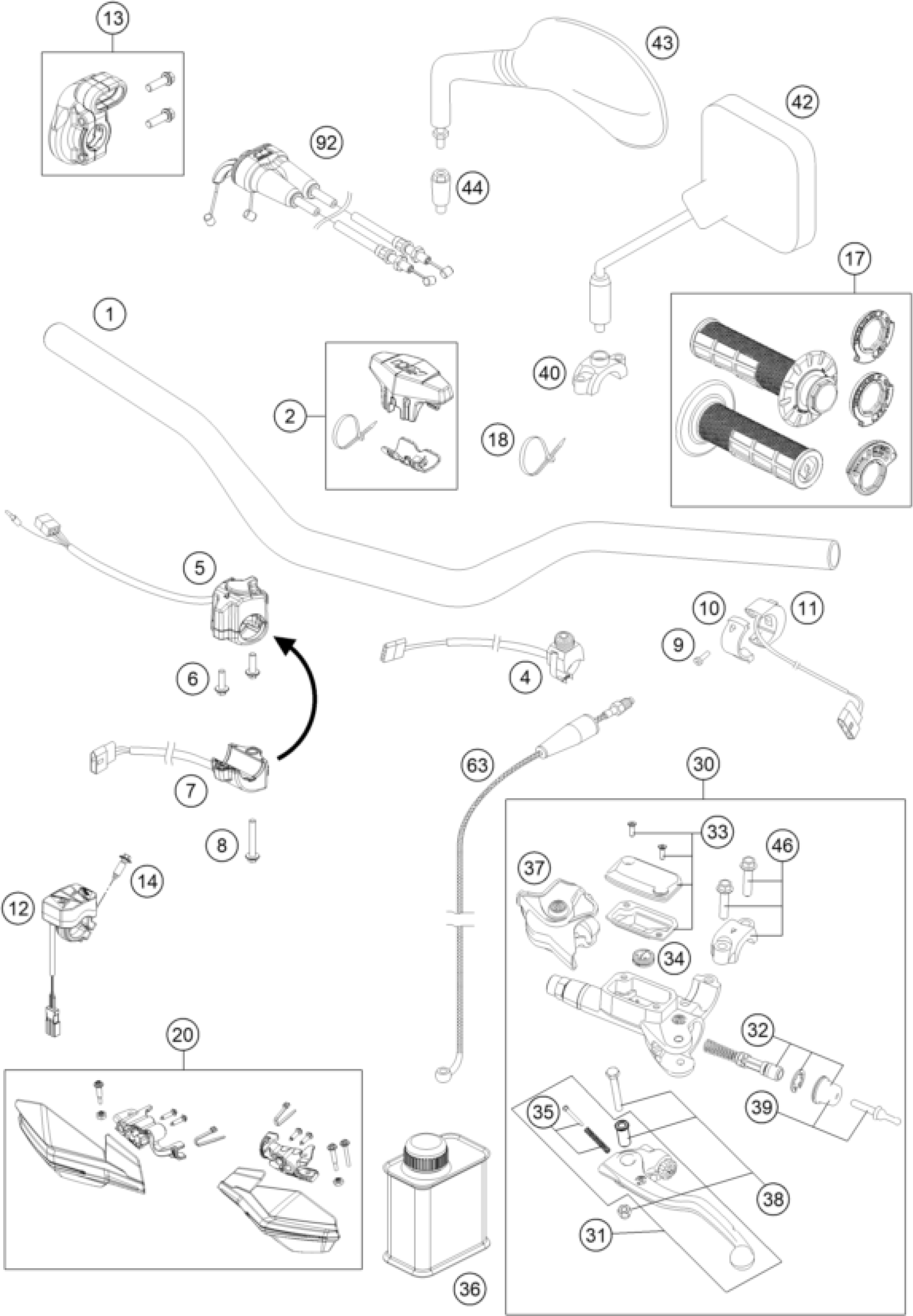

KTM 250 EXC-F SIX DAYS 2017 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM SX/EXC BLACK

5480200130030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

4

STARTER BUTTON GREY 13

78111074000

Unavailable

5

LIGHT SWITCH

78111070000

Unavailable

6

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

7

FLASHER SWITCH

78111029000

Unavailable

8

HH COLLAR SCREW M5X30 SW=6

0014050303

Unavailable

9

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

10

CLAMP ENGINE STOP SWITCH

50311074050

Unavailable

11

ENGINE STOP SWITCH CEV

50311074000

Unavailable

13

THROTTLE CONTROL CASING CPL.

79002010025

Unavailable

17

GRIP SET

79002021100

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

20

HAND GUARDS CPL. L/S+R/S WHITE

7770217900028

Unavailable

30

MASTER CYLINDER CPL.

54802030144

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

Push rod cmpl.

54802046000

Unavailable

40

Clamp for mirror

58012040150

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

43

MIRROR L/S 98

58412040000

Unavailable

43

MIRROR R/S 98

58412041000

Unavailable

44

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

46

CLAMP CPL. 06

54802005100

Unavailable

63

CLUTCH PIPE

79232063000

Unavailable

92

THROTTLE CABLE CPL. 4STROKE

79002091000

Unavailable

12

MAP SWITCH

79039074000

Unavailable

14

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
