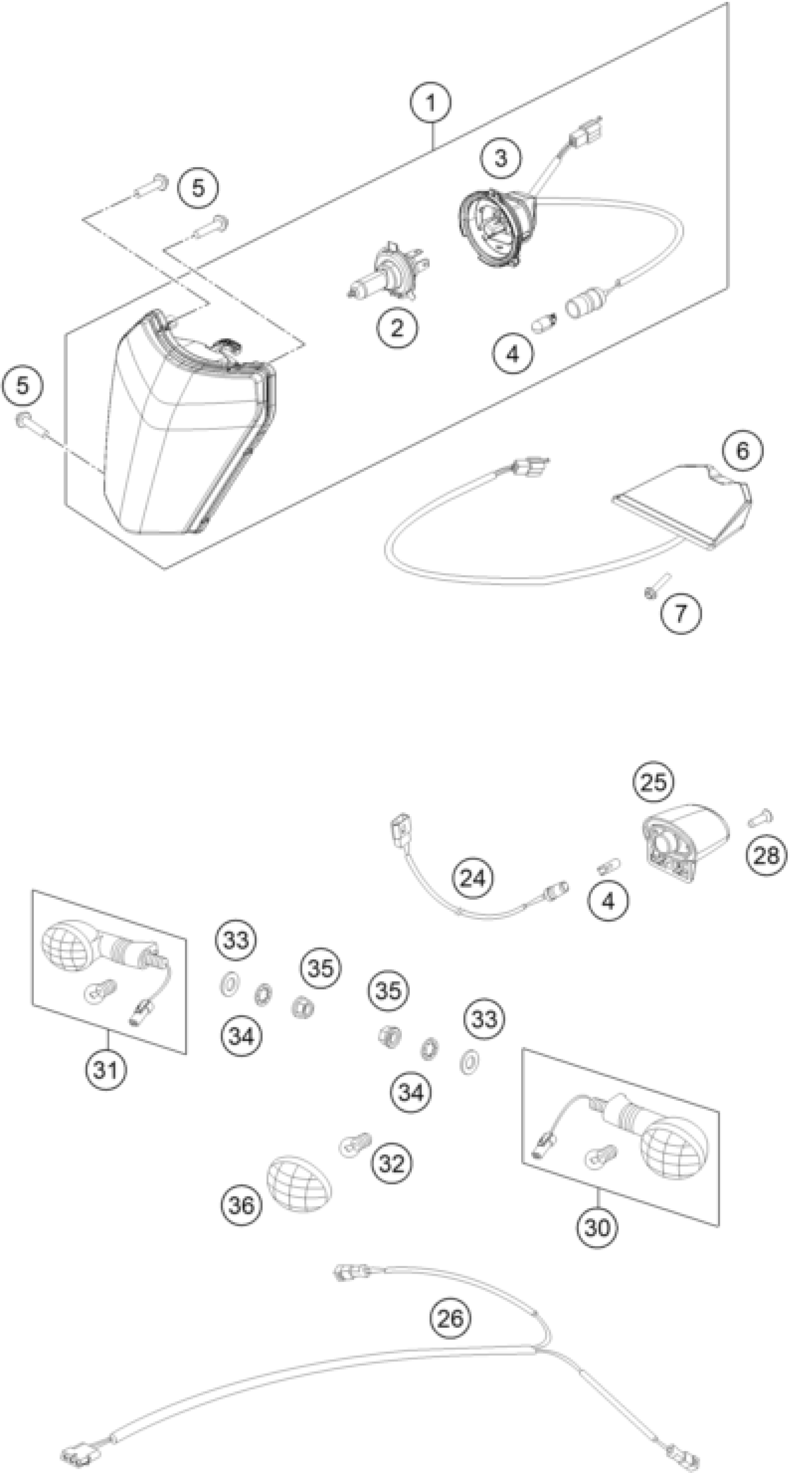

KTM 250 EXC-F SIX DAYS 2015 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. 2013

78114001000

Unavailable

2

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

3

LAMP BRACKET CPL. 2014

78114001050

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

6

REAR LIGHT

78114040000

Unavailable

7

EJOT PT SCREW K60X25-Z SW6

0017060255

Unavailable

24

WIRING HARN. LIC. PLATE ILLUM.

76511078000

Unavailable

25

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

26

FLASHER WIR. HARNESS 14

77711081000

Unavailable

28

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

29

EJOT PT SCREW K60X25-Z SW6

0017060255

Unavailable

30

FLASHER CPL. FR.L/S RE.R/S 09

54814025200

Unavailable

31

FLASHER CPL. FR.R/S RE.L/S 09

54814026200

Unavailable

32

BULB 12V 10W (BA15S)

44111015100

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

FLASHER LENS L/S R/S 05

54814028000

Unavailable
