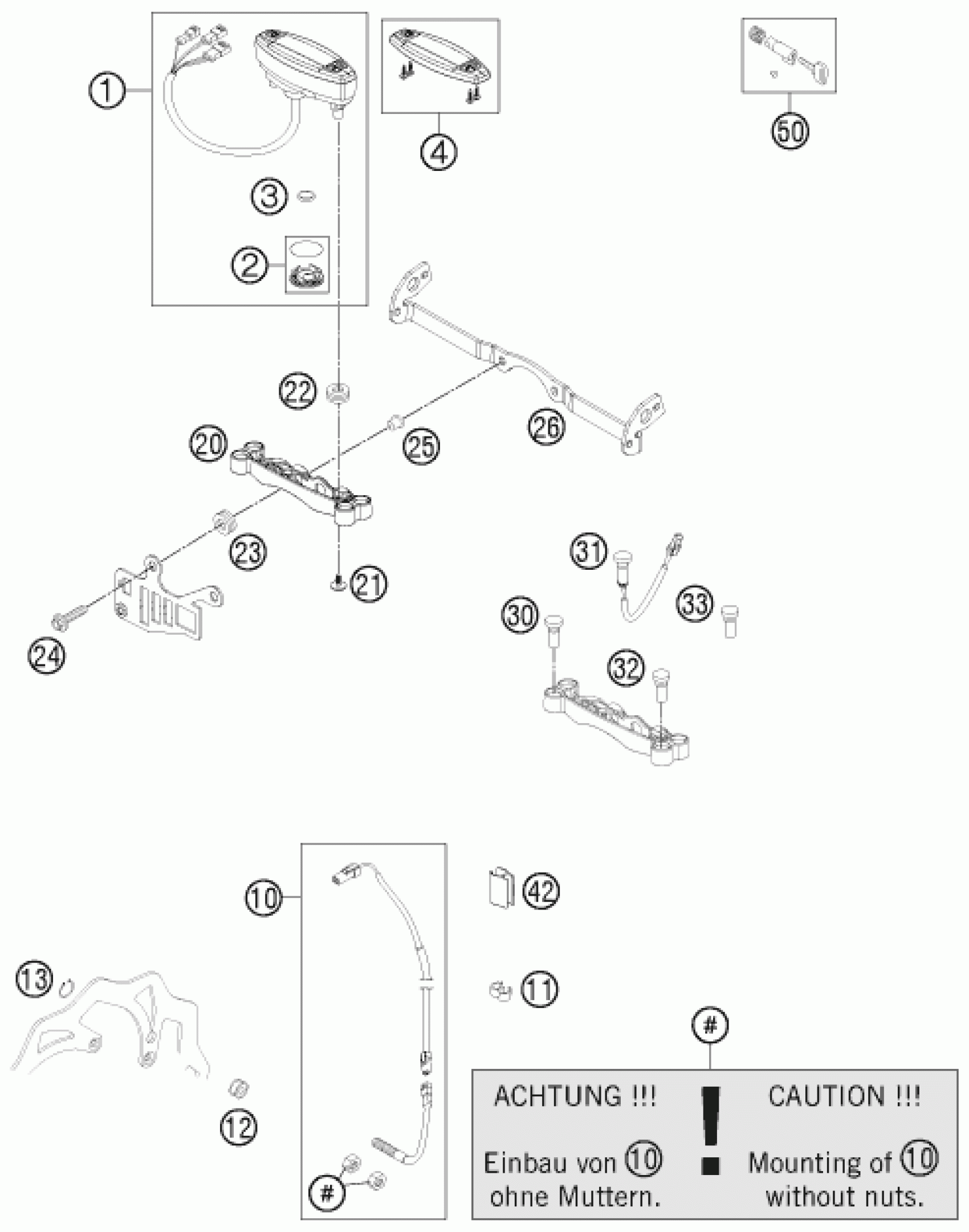

KTM 250 EXC-F SIX DAYS 2013 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

20

SPEEDOMETER BRACKET

81214060000

Unavailable

21

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

24

HH collar screw M6x20 TX30

0025060206

Unavailable

25

BUSHING F. SPROCKET COVER RAC.

59030060050

Unavailable

26

FLASHER BRACKET EXC 08

78014033000

Unavailable

30

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

31

INDICATOR LIGHT LED YELLOW FI

81214083000

Unavailable

32

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

33

INDICATOR LIGHT RESERVE

81214086000

Unavailable

42

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

50

STEERING HEAD LOCK 08

78003035000

Unavailable
