WIRING HARNESS

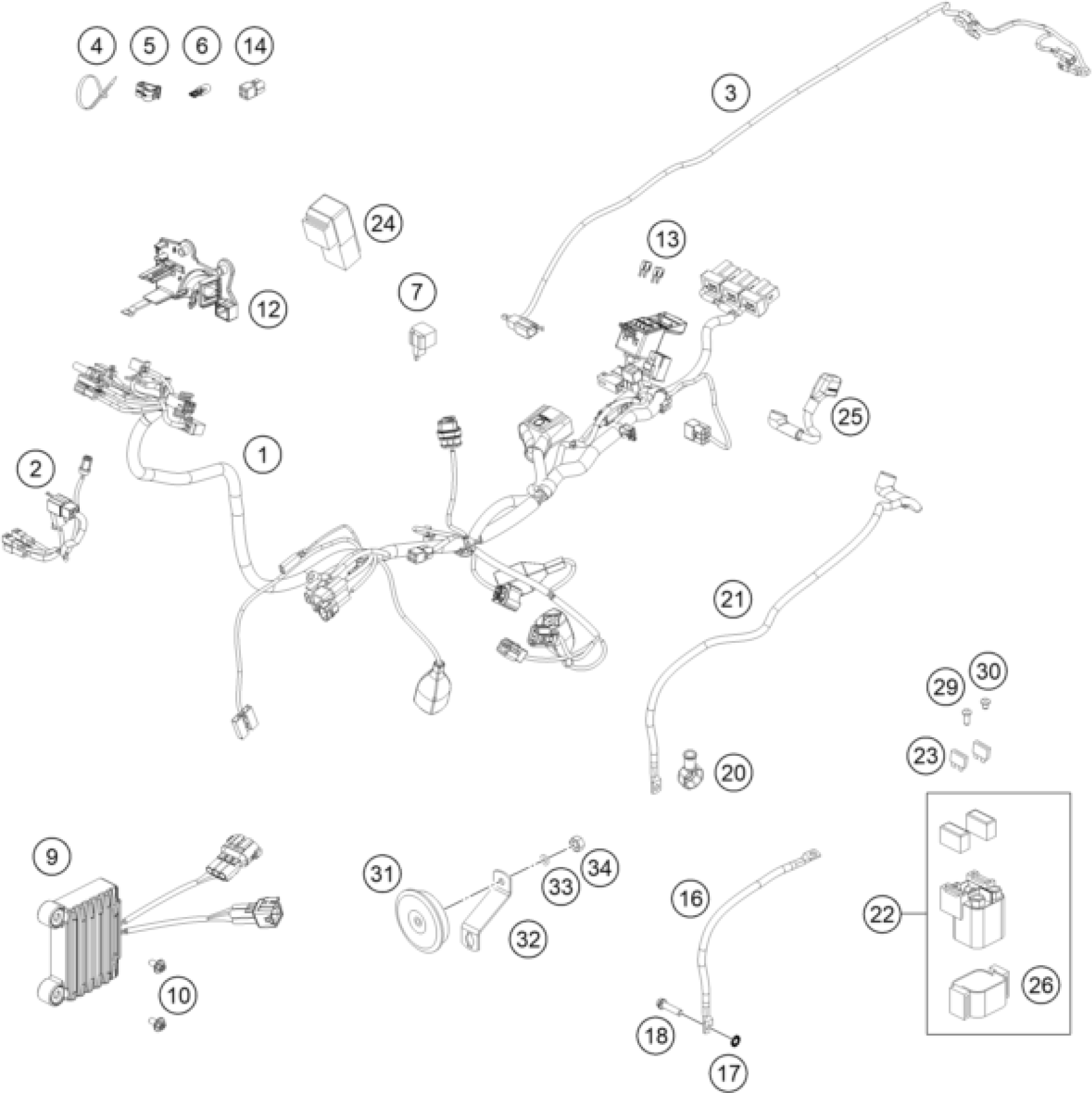

KTM 250 EXC-F CKD 2020 WIRING HARNESS Diagram
#
Description
Price
1
Main wiring harness
79711075000
Unavailable
2
Flasher harness front
72111080000
Unavailable
3
flasher harness rear
79711081000
Unavailable
4
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
4
Cable tie 200/4.6mm black
44011076200
Unavailable
4
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
5
Line guide
83013026000
Unavailable
6
BULB 12V 2,3W (W2X4,6D)
49111425200
Unavailable
7
FLASHER UNIT
76511030000
Unavailable
9
VOLTAGE REGULATOR
79611034000
Unavailable
12
Connector support
79711083000
Unavailable
13
FUSE MINI 5A
75011088005
Unavailable
13
FUSE 10A 07
75011088010
Unavailable
14
Dummy plug 4-pins
000700000AN01
Unavailable
16
GROUND CABLE D=6MM L=140MM '97
58411097100
Unavailable
17
CONTACT WASHER M6 VSV-K6
58411098100
Unavailable
18
HH collar screw M6x25 TX30
0025060256
Unavailable
20
Protection cap for starter eng
77240099000
Unavailable
21
Starterkabel
25111059000
Unavailable
22
Starter reley 12V 99
58211058000
Unavailable
23
Plug-in fuse, big 20A
58011109120
Unavailable
24
RELAY CM1A-R-12V-H80 07
61111057000
Unavailable
25
Batteriekabel
25111059050
Unavailable
26
BRACKET RUBBER F.STARTRELAY 07
58211058050
Unavailable
29
Oval head screw AH socket M6x1
0738060167
Unavailable
30
Oval head screw ISO 7380 M 6X8
0902060083
Unavailable
31
DC HORN 12V 07
50311060200
Unavailable
32
HORN BRACKET EXC 08
78011061000
Unavailable
33
WASHER DIN0125-A 5,3
0125050003
Unavailable
34
HEXAGON NUT DIN0934-M 5
0934050003
Unavailable
10
HH collar screw M6x15 TX30
0024060156
Unavailable
