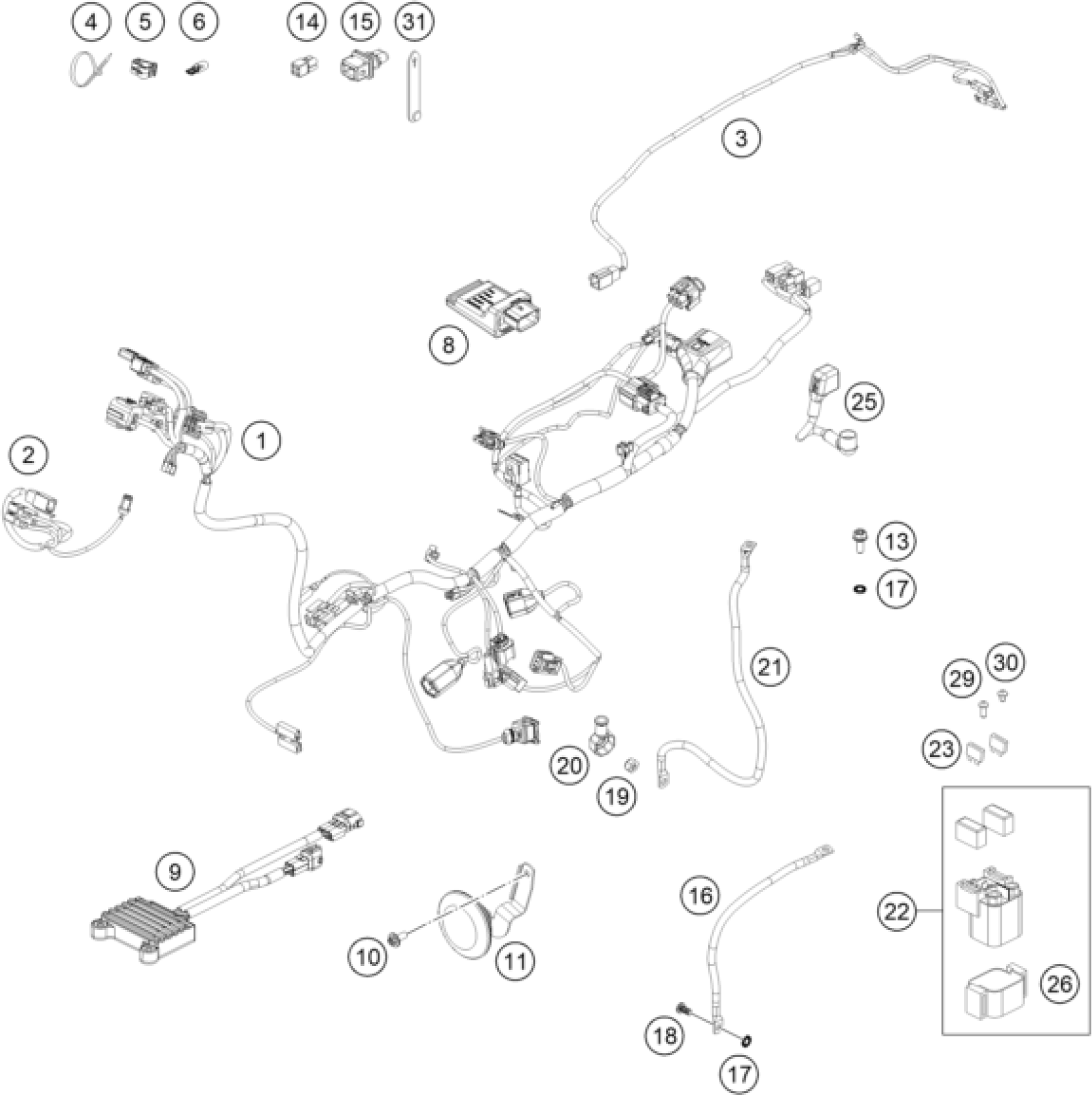

KTM 250 EXC-F 2024 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

A49011075000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

9

Voltage regulator

A49011034000

Unavailable

15

Dummy plug LV 2p/sealed

000700000LV001

Unavailable

16

Ground wire

75011097100

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

18

Roundhead screw w/ Tx M6x12 mm

0900000601202

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

Protection cap for starter eng

77240099000

Unavailable

21

Starter cable

A46011059000

Unavailable

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 20A

58011109120

Unavailable

25

Battery cable cmpl.

A46011059050

Unavailable

26

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable

29

Oval head screw AH socket M6x1

0738060167

Unavailable

30

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

31

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

8

Offroad-control-unit 1.0

A49011033033

Unavailable

2

Turn signal wiring harness, fr

A49011080000

Unavailable

3

Turn signal wiring harness, re

A49011081000

Unavailable

6

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

10

HH collar screw M6x15 TX30

0024060156

Unavailable

11

Horn, cmpl.

79711060033

Unavailable

14

Dummy plug 4-pins

000700000AN01

Unavailable

13

HH collar screw M5x12 TX30

0025050126

Unavailable
