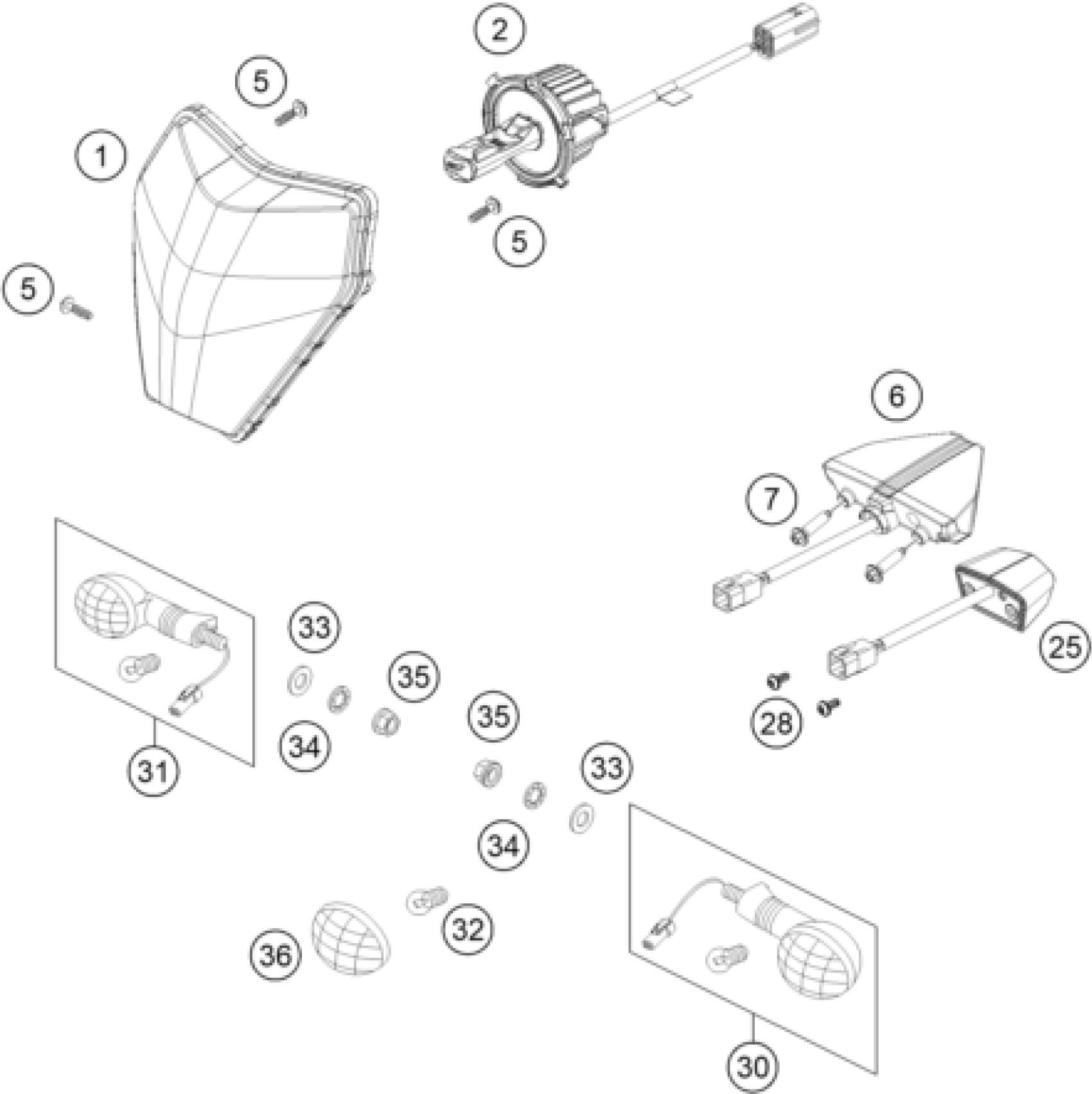

KTM 250 EXC-F 2024 LIGHTING SYSTEM Diagram

#

Description
Price

1

Headlamp KTM

A49014001080

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

6

Tail light

79714040000

Unavailable

7

EJOT PT SCREW K60X25-Z SW6

0017060255

Unavailable

25

license plate lighting

60314047000

Unavailable

28

EJOT PT screw K50x12

0081050121

Unavailable

30

FLASHER CPL. FR.L/S RE.R/S 09

54814025200

Unavailable

31

FLASHER CPL. FR.R/S RE.L/S 09

54814026200

Unavailable

32

BULB 12V 10W (BA15S)

44111015100

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

FLASHER LENS L/S R/S 05

54814028000

Unavailable

2

LED-Unit

A49014002000

Unavailable
