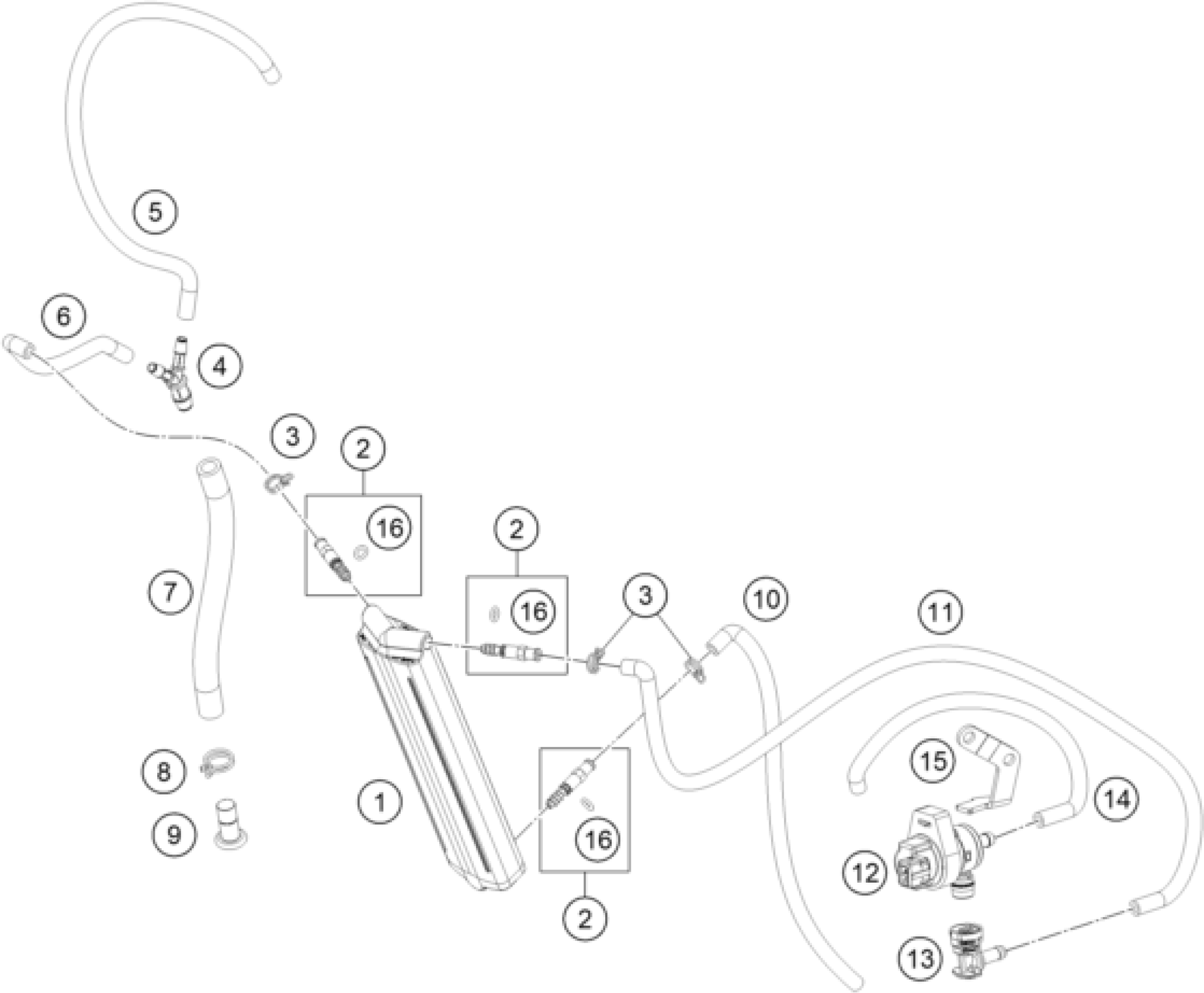

KTM 250 EXC-F 2024 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

Activated charcoal filter

A49015001000

Unavailable

2

Hose connector with O-ring

A49015019044

Unavailable

3

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

4

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

5

hose EPA d=6/10 l=425

78015019425

Unavailable

6

PREFORMED HOSE 6X10 ECO

79615021000

Unavailable

7

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

8

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

9

Screw plug ACF

61315026100

Unavailable

10

PREFORMED HOSE 6X10 ECO

79615025000

Unavailable

11

Pre-formed hose 6x10 ECO

A49015023000

Unavailable

12

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

13

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

14

Pre-formed hose 6x10 ECO

A49015024000

Unavailable

15

Purge valve bracket

A49015002000

Unavailable

16

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable
