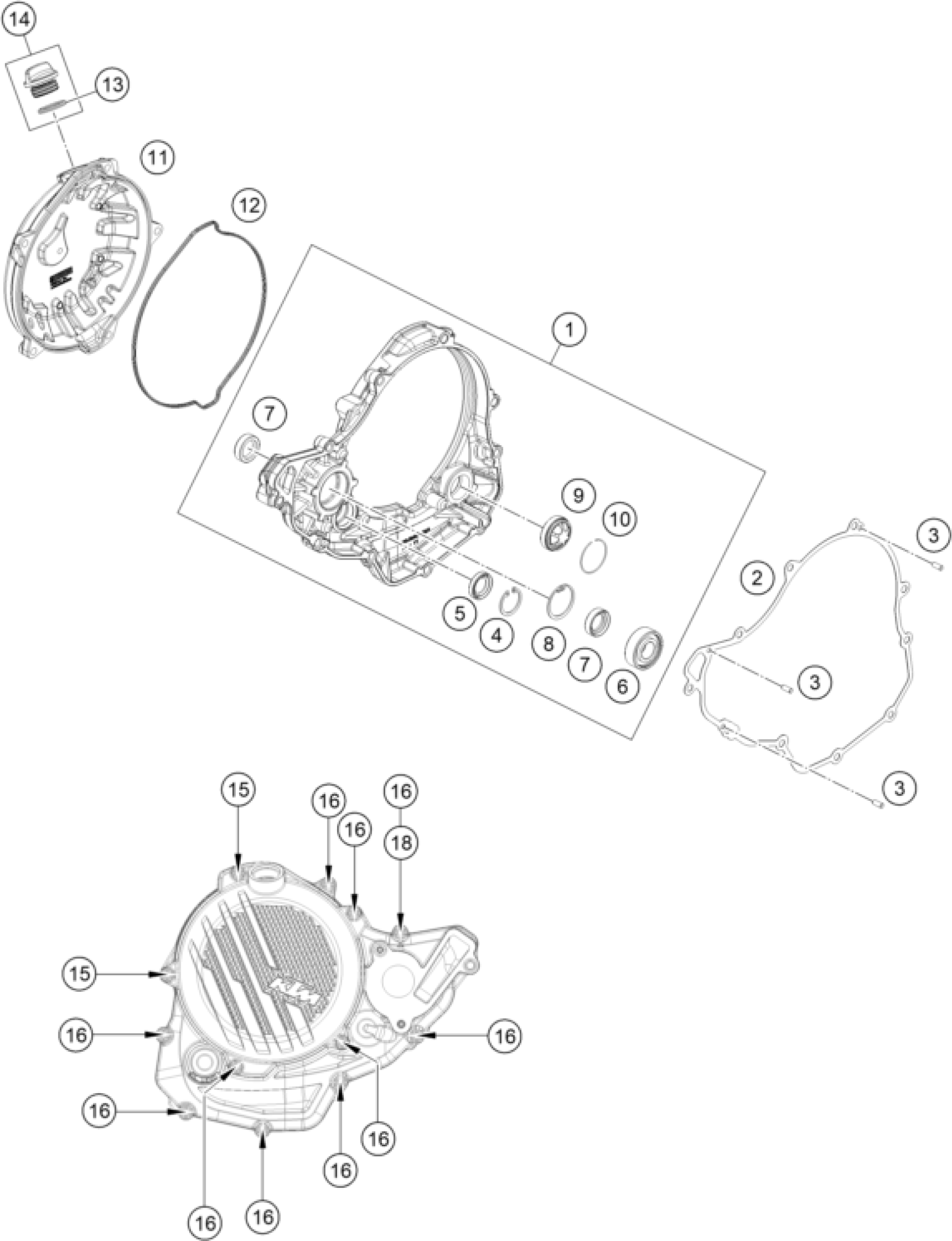

KTM 250 EXC-F 2024 CLUTCH COVER Diagram

#

Description
Price

1

inner clutch cover cpl.

A46030001044

Unavailable

2

Clutch cover gasket

A46030025000

Unavailable

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

4

CIRCLIP DIN0472-24X1.2

0472024120

Unavailable

5

SHAFT SEAL RING 14X24X5 VITON

0760142450

Unavailable

6

BALL BEARING 6202 C0 2

0625062022

Unavailable

7

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

Unavailable

8

CIRCLIP 30X1,2

0472300120

Unavailable

9

OIL SIGHT GLASS

59030019200

Unavailable

10

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

11

Clutch cover, external

A49030026000C1

Unavailable

12

Clutch cover gasket external

A48030027000

Unavailable

13

O-RING 19,00X3,00 NBR

0770191015

Unavailable

14

Oil filler cap cmpl. M24x3

79430020033

Unavailable

15

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

18

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
