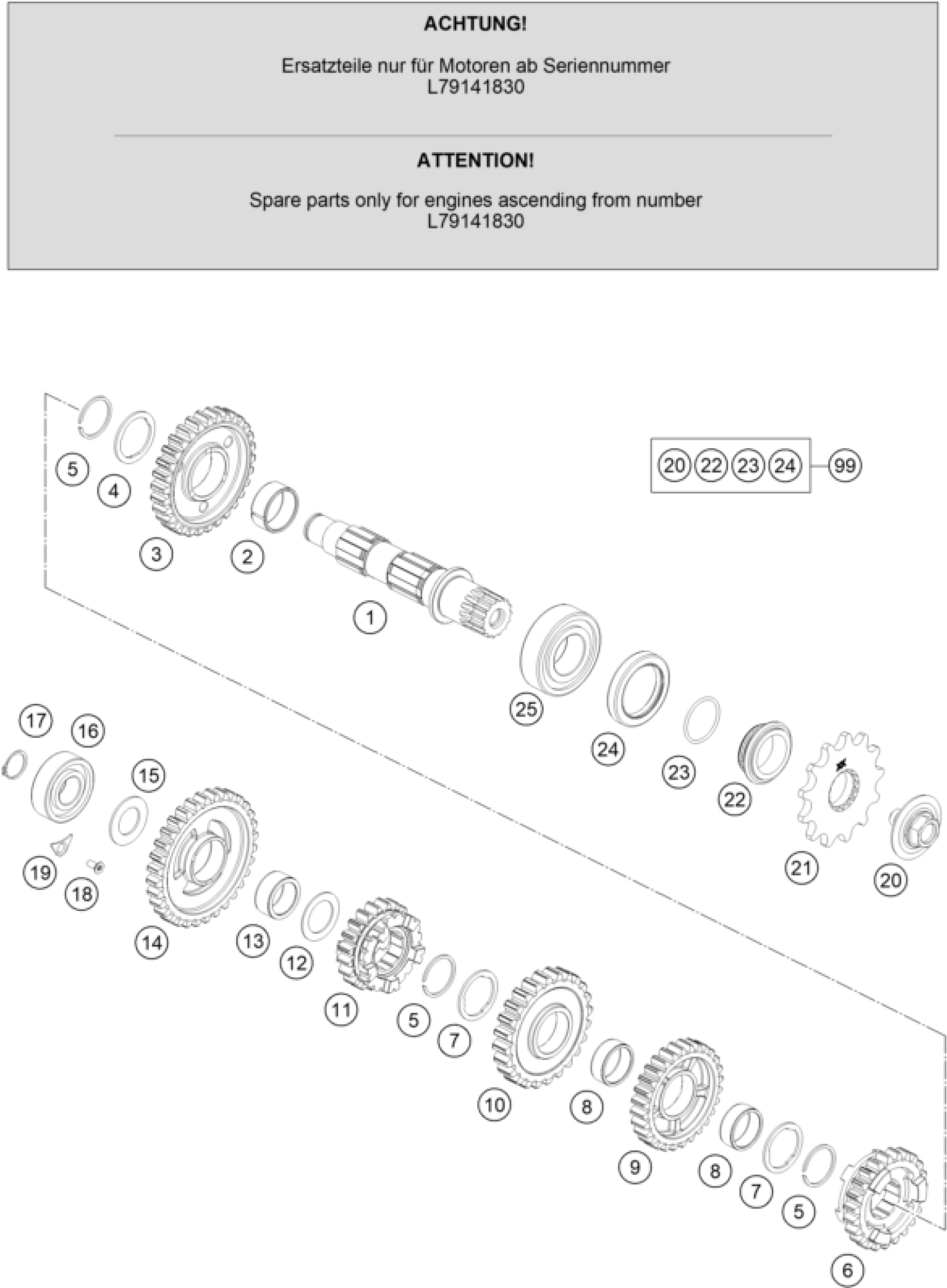

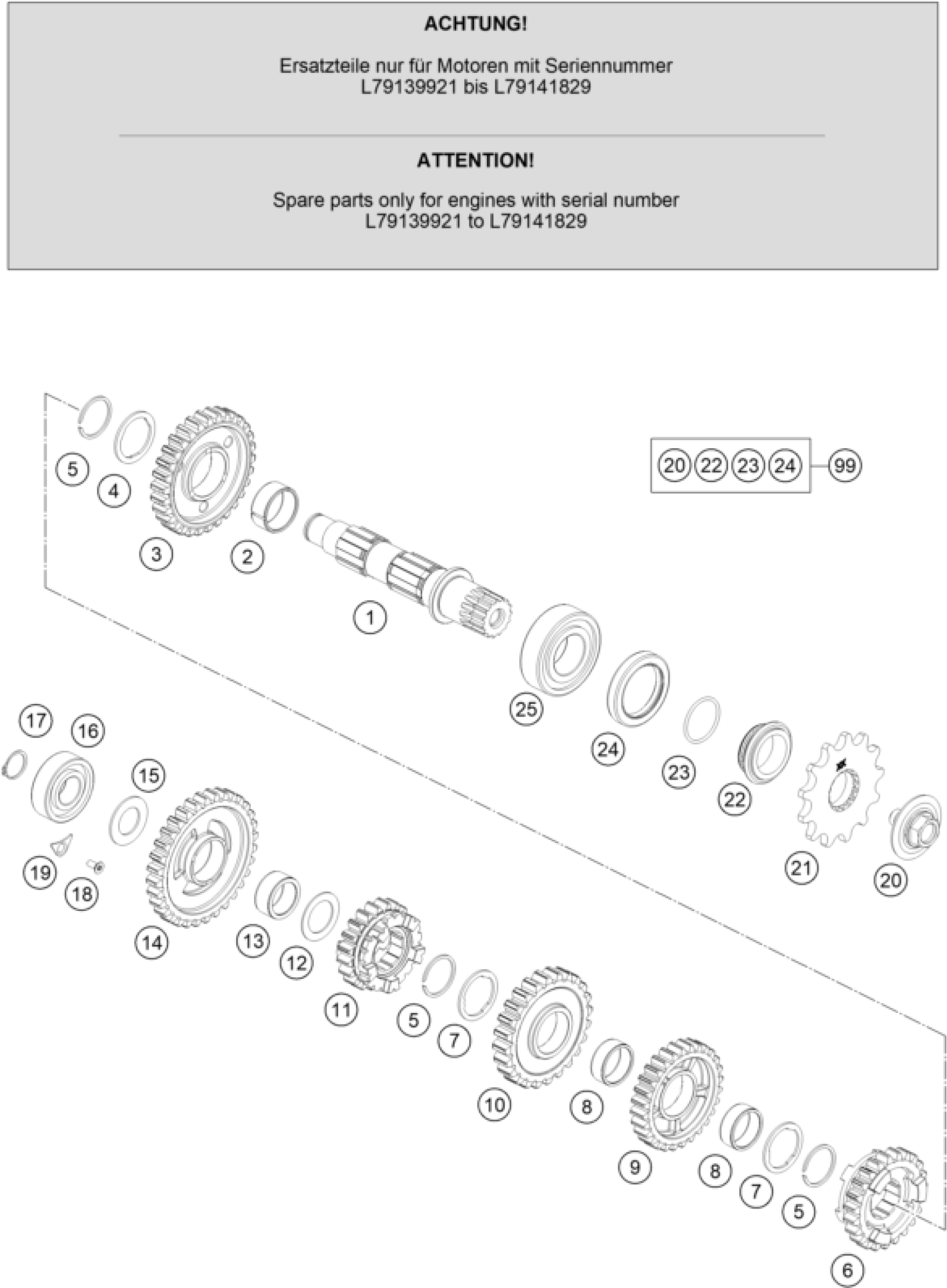

KTM 250 EXC-F 2020 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Countershaft

79133110000

Unavailable

2

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

3

Idle gear, 2nd gear teeth=30

79133212000

Unavailable

4

STOP DISC 24X32X1,5

77733044000

Unavailable

5

CIRCLIP WS24

0417024000

Unavailable

6

Sliding gear, 5th gear, teeth=

79133215000

Unavailable

7

STOP DISC 23,4X31X1,5

77733043000

Unavailable

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

9

Idle gear, 4th gear teeth=28

79133214000

Unavailable

10

Idle gear, 3rd gear teeth=24

79133213000

Unavailable

11

Sliding gear, 6th gear, teeth=

79133216000

Unavailable

12

STOP DISC 20,2X30X1

54833080000

Unavailable

13

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

14

Idle gear, 1st gear teeth=32

79133211000

Unavailable

15

STOP DISK 17,2X30X1,3

77233020000

Unavailable

16

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

17

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

19

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

21

Sprocket 13-t

79233029013

Unavailable

21

ENGINE SPROCKET 14Z

79233129014

Unavailable

22

SPACER SLEEVE COUNTER

78133014000

Unavailable

23

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

25

cylindrical roller bearing NJ2

49030023000

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
