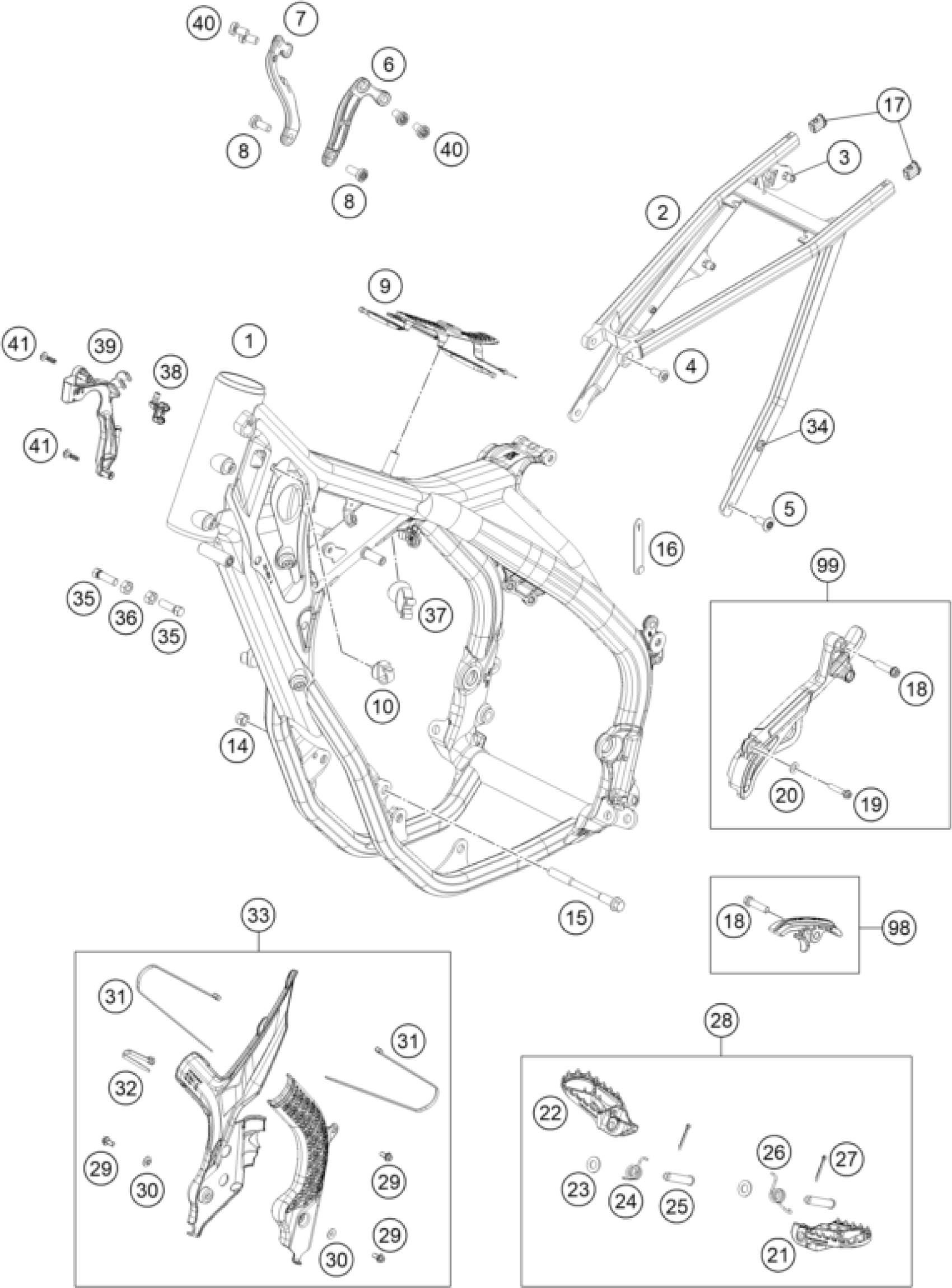

KTM 250 EXC-F 2020 FRAME Diagram
#
1
Frame 793T1
7930310110033
Unavailable
2
Subframe
79103002000
Unavailable
3
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
4
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
5
Special screw M8X18 TORX45 SL
79003003000
Unavailable
6
Engine brace left
7930311300001S
Unavailable
7
Engine brace right
7930311400001S
Unavailable
8
SHCS M8x20 TX45
0035080206S
Unavailable
9
TANK REST RUBBER
79607012000
Unavailable
10
CABLE SUPPORT KHS NR.150-47610
58111076000
Unavailable
14
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
15
engine brac.scr. M10x115
77203014000
Unavailable
16
RUBBER CABLE TIE 75MM 03
60011093075
Unavailable
18
HH collar screw M8x30
0025080306
Unavailable
19
HH collar screw M6x40 TX30
0025060406
Unavailable
21
FOOTREST L/S EXC 2017
79603040000
Unavailable
22
FOOTREST R/S EXC 2017
79603041000
Unavailable
23
washer DIN 125 A 10.5
0125100003
Unavailable
24
FOOTREST SPRING R/S 2016
79003044000
Unavailable
25
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
26
FOOTREST SPRING L/S 2016
79003045000
Unavailable
27
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
28
FOOTREST-SET
79603040033
Unavailable
29
HH COLLAR SCREW M 5X12 WS=6
0014050123
Unavailable
30
Bush f. frame protection 03
54803092060
Unavailable
31
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
32
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
33
Frame protection set
7910309400030
Unavailable
34
BLIND RIVET NUT M6 KNURLED
79003002080
Unavailable
35
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
36
Hexagon nut DIN934 M8
0934080003
Unavailable
98
CHAIN SLIDING KIT BELOW CPL.16
79003053010
Unavailable
99
SPROCKET COVER KIT
79003096010
Unavailable
17
Rear frame bit
79103002010
Unavailable
40
AH-COLLAR SCREW M8X15 TORX45
0035080156S
Unavailable
37
CABLE SUPPORT 07
61111041000
Unavailable
38
wire holder / fuel ventilation
79107013010
Unavailable
39
Cable holder throttle cable gu
79711013000
Unavailable
41
SCREW FOR PLASTIC K50X18 T20
0081050181
Unavailable
20
WASHER DIN0125-A 6,4
0125060003
Unavailable
